DATAVIEW Software
Chapter 4
Power/Energy

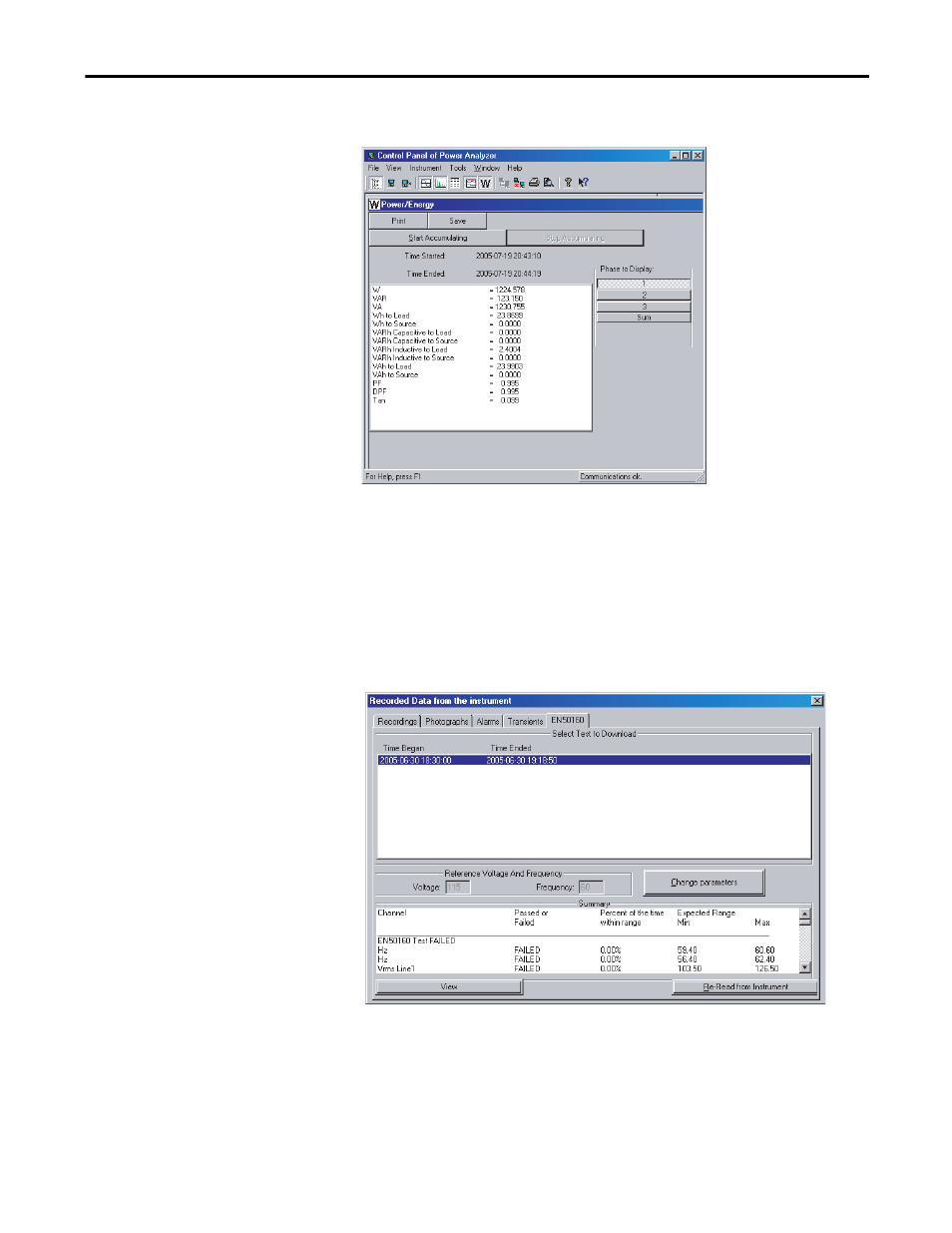

The Power/Energy window displays accumulated power and energy data.
Accumulated energy data can be started or stopped, and the results can be
download to a database, and viewed on the screen, selected by phase.
EN50160
The EN50160 window displays recorded tests that can be downloaded and
analyzed.
The summary window shows the results after all the data has been downloaded to
a database. It displays the name, percent of the 10-minute periods that it has been
out of range, followed by the range it needed to be within.
TIP
The data for all available phases are downloaded to a database, not just that
shown on the screen.
