10 Rockwell Automation Publication 1412-UM001D-EN-P - September 2012
Chapter 1 Product Features

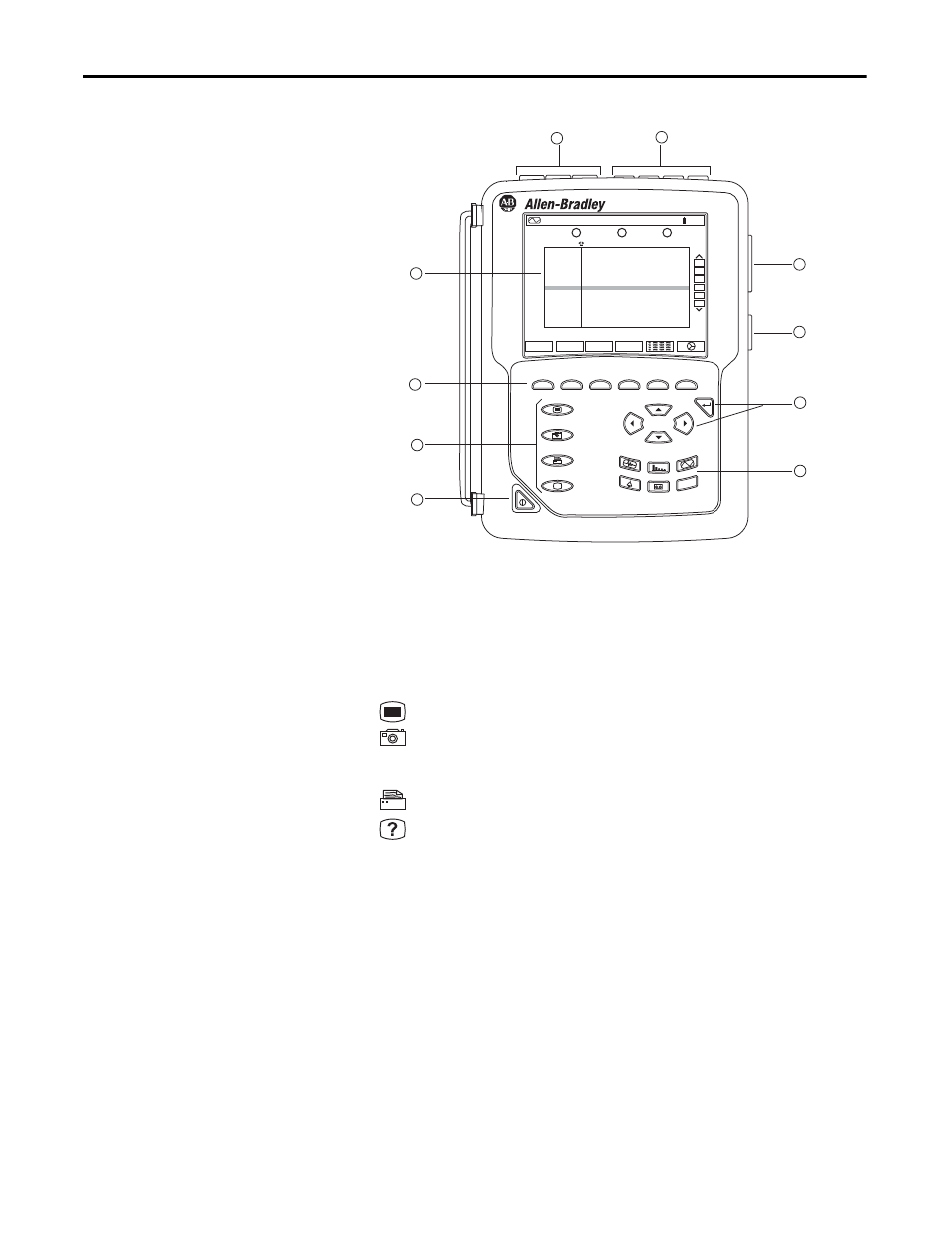

Control Features
 Color LCD display with graphic representation of system parameters and
measurements.
 Six function buttons used to modify the display mode.
 Four function buttons which let you to the following:
– Access the instrument setup parameters.
– Take a snapshot of the current screen or access screens already stored in
the memory. Record associated waveform and power measurement
data.
– Print the measurement results on an external printer.
– Get help on the current display functions, in the language chosen by the
user.
 ON / OFF button.
 Three current inputs on the top of the instrument to enable the use of
current sensors.
 Four voltage inputs.
 RS-232 bidirectional optical output for transferring data to a PC
(bidirectional).
 AC Line power input.
PowerPad ™
W ?
2
6
7
8
9
10
3
1
4
5
300V
RMS
0
- 300
V1= +0 V2= +0 V3= +0 >
3U
3V
3A
L1
L2
L3
THD CF max
min
0.3 v 0.3 v 0.3 v 1 2 3
07/25/02 49.99Hz 10:26 100%
