Display Modes Chapter 3

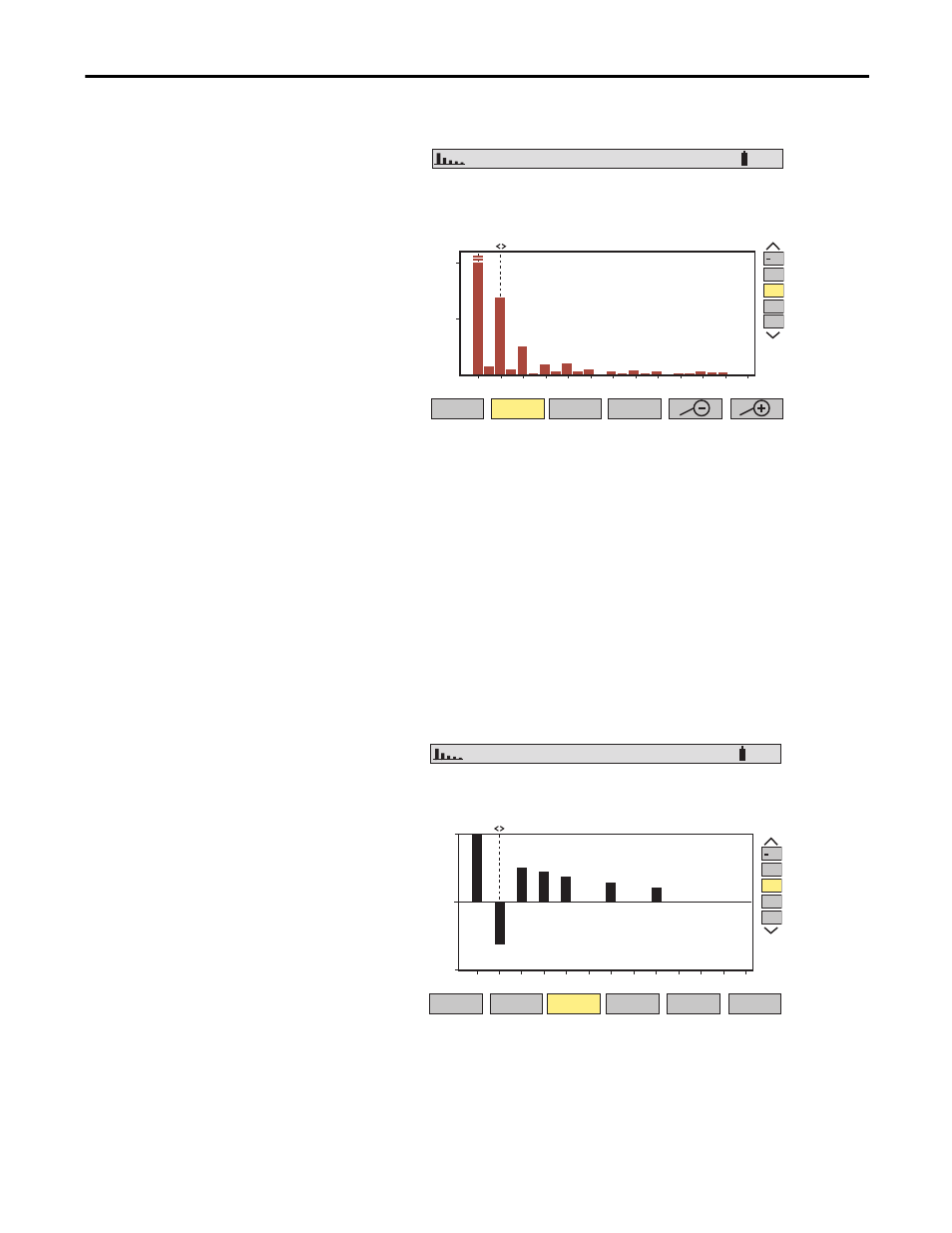

Single-phase and Phase-to-phase Current Analysis
Selection of three-phase or individual phases L1, L2, and L3, displays:
• The total THD
• The MIN and MAX instantaneous values
• The parameters for the harmonic order selected by the cursor
– Percentage in relation to the fundamental
– RMS value and phase angle in relation to the fundamental component
• MIN, MAX instantaneous values for the selected current harmonic
Power and Direction Flow Analysis
Harmonics on this screen are shown with either a positive or negative
orientation.
Since the bar selected in this example is negative, it indicates that it is a harmonic
from load to source.
TIP MIN, MAX values are reset each time the cursor position is changed.
07/25/02 60.00Hz 10:26 100%
.+
3L
L1
L2
L3
34.1
%
36.5
%
Ah 03 2.8
A
THD
-040°
max 34.5 %
max 1 .1 %
V A VA U
50
%
25
1 3 5 7 9 11 13 15 17 19 21 23 25
07/25/02 59.98Hz 10:26 100%
.+
3L
L1
L2
L3
-63
%
G VAh03
min -22 %
-122 °
max -22 %
V A VA U
100
-100
%
0
1 3 5 7 9 11 13 15 17 19 21 23 25
