Rockwell Automation Publication 750-IN030B-EN-P - October 2014 29
PowerFlex 750-Series Power Option Cabinets

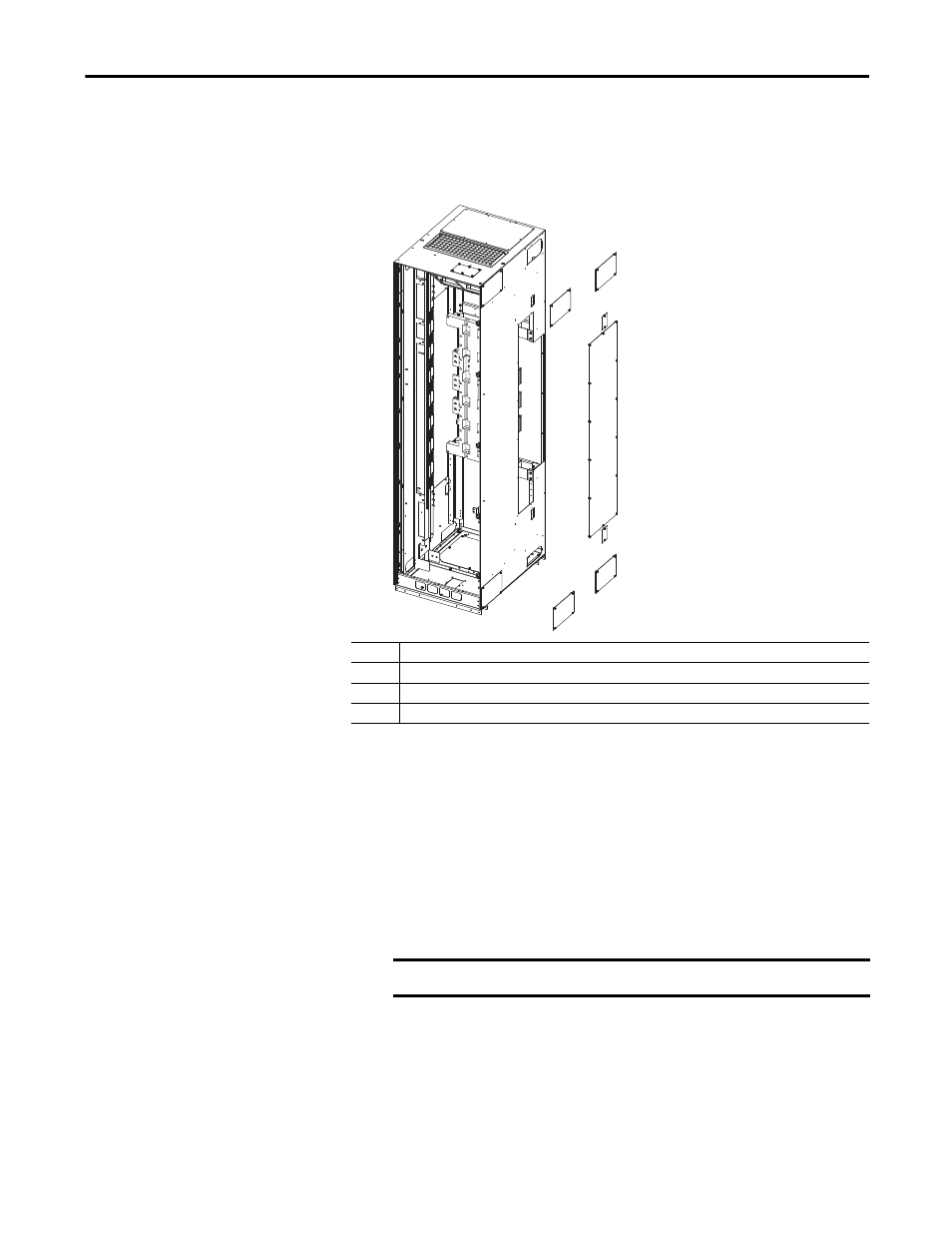

Typical Right Side Cabinet
Mounting
1. Remove closing plates from the right side of the PowerFlex 755 drive
cabinet.
Reserve the closing plates and screws. They will be needed to close the
exposed side of the power option cabinet.
2. Align the prepared power option cabinet with the drive cabinet.
3. Bring the power option cabinet and drive cabinet together.
4. Pass the M6 x 16 mm hex-head thread-forming screws from inside the
drive cabinet through the joining holes and engage the screws with the
holes in the power options cabinet.
5. Make sure cabinets are level and pushed together tightly.
6. Tighten the screws in a uniform pattern.
No. Description
➊ Top and bottom wireway closing plates
➋ Top and bottom PE bus-bar access closing plates.
➌ Drive bus-bar access closing plate.
IMPORTANT Do not use hardware to draw cabinets together.
➊
➊
➋
➋
➌
➊
➊
IP20, NEMA/UL Type 1 enclosure shown.
Cabinet door and internal components
omitted for clarity.
