Center post assembly – Rockwell Automation 20G PowerFlex 750-Series Power Option Cabinets User Manual
Page 28
28
Rockwell Automation Publication 750-IN030B-EN-P - October 2014
PowerFlex 750-Series Power Option Cabinets

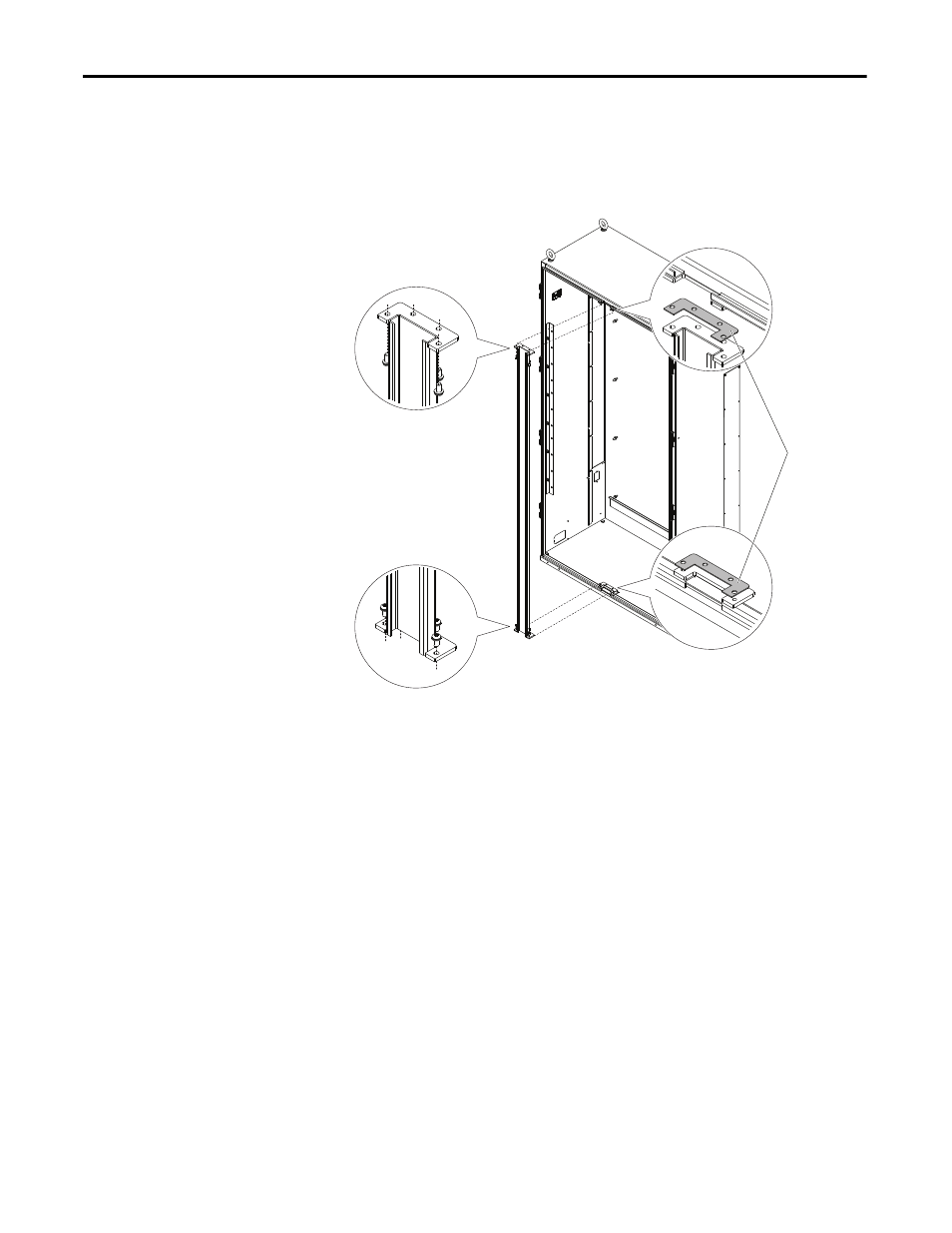

Center Post Assembly
The center post in 1200 mm (47.2 in.) wide power option cabinets can be
temporarily removed.
1. Remove the eight M8 x 16 mm screws from the top on bottom mounting
flanges.
2. Pull the center post straight out of the cabinet noting the gaskets between
the center post and cabinet top and bottom.
Be sure the gaskets are in these positions when reassembled.
Gaskets
