Rockwell Automation Publication 750-IN030B-EN-P - October 2014

27

PowerFlex 750-Series Power Option Cabinets

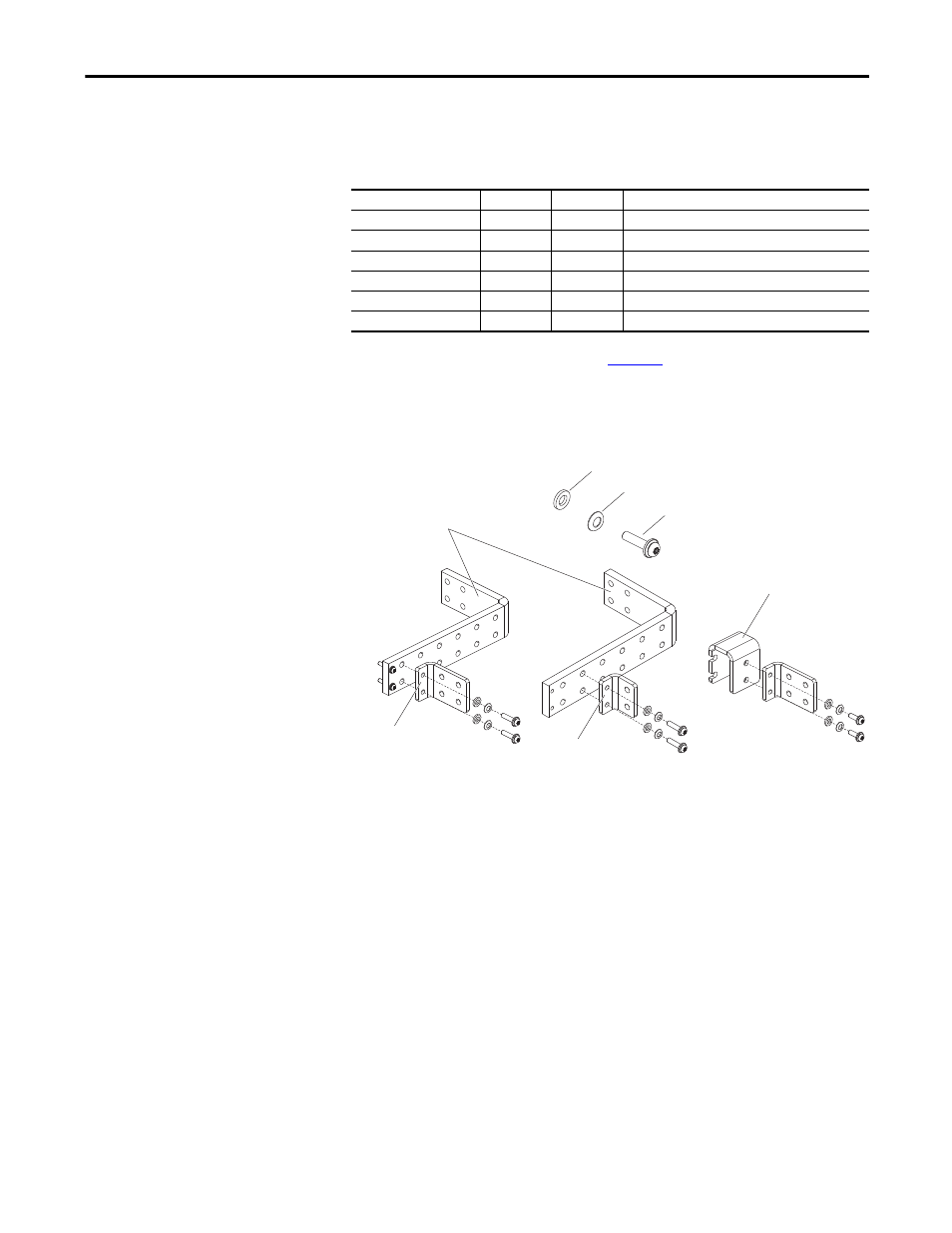

L-Bracket Kit Installation

L-bracket bus-bar assemblies are used to connect AC and DC line input power
and AC motor connections when using drive side and drive rear bus-bar kits.

Table 23 - 20-750-PBAY-LBRK-2, -4 Kit Contents

1. Select the correct cap screw from

Table 23

for the bus-bar kit used.

2. Locate the L-bracket in the desired position on the bus-bar and secure with

the two cap screws.

3. Tighten cap screws to 13.6 N•m (120 lb•in).

Description

Part No.

Quantity

Used With Bus-bar Kit No.

L-Bracket Bus-bar

1

All

M10 x 35 mm Cap Screw

419062-5HLP

2

20-750-PBAY-RHBB-1235

M10 x 40 mm Cap Screw

419062-5HLQ

2

20-750-PBAY-RHBB-975 and 20-750-PBAY-RHBB-1625

M10 x 45 mm Cap Screw

29108-450-05 2

20-750-PBAY-RHBB-2437

M10 Conical Spring Washer

28311-216-01 2

All

3/8 in. Flat Washer

103232

2

All

Copper L-Bracket

Aluminum L-Bracket

M10 Cap Screw

M10 Conical Spring Washer

M10 Flat Washer

Drive Rear Bus-bar

Drive Side Bus-bar
