Rockwell Automation 20G PowerFlex 750-Series Power Option Cabinets User Manual
Page 25
Rockwell Automation Publication 750-IN030B-EN-P - October 2014
25
PowerFlex 750-Series Power Option Cabinets

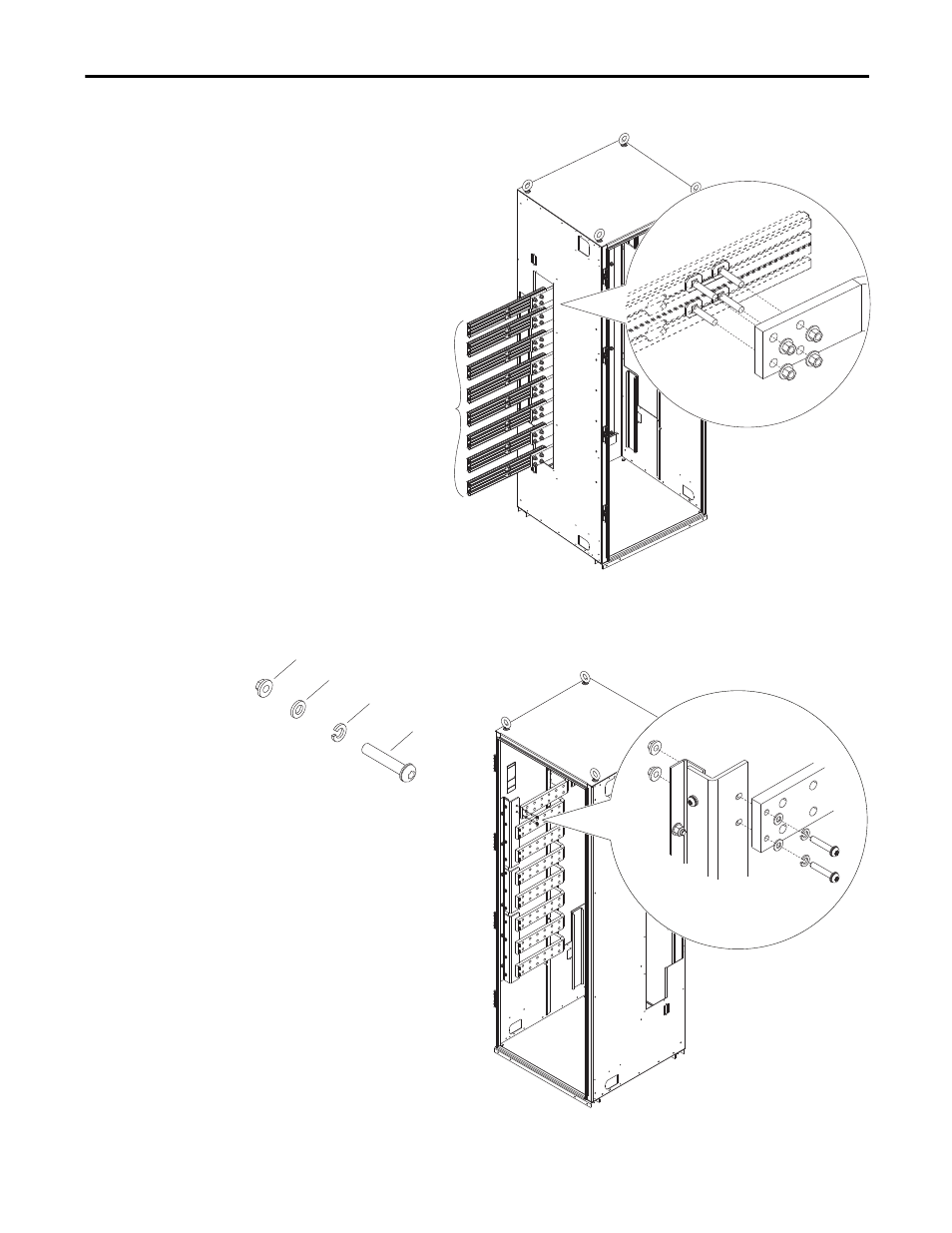

5. Hand tighten the nuts.
6. Fasten the side bus-bar to the support angle inside the power option
cabinet.
7. Tighten all fasteners to the values listed.
38.0 N•m
(336 lb•in)
Drive Bus-bars
38.0 N•m
(336 lb•in)
M8 Cap Screw
M8 Flat Washer
M8 Lock Washer
M8 Flange Nut
