Rockwell Automation Publication 750COM-UM004B-EN-P - September 2012 39
Chapter
4
Configuring the Profibus Master
Profibus masters are available from several manufacturers, including Prosoft
Technology. This chapter provides instructions on how to use the MVI56-
PDPMV1 Profibus DPV1 master and do the following:
• Configure the MVI56-PDPMV1 Profibus DPV1 master.
• Install the 20-750-PBUS GSD file in the software tool library.
• Configure the 20-750-PBUS option module as a PowerFlex 750 Profibus
slave.
Example Network In this example, we will configure one PowerFlex 750-Series drive, with an
installed 20-750-PBUS option module, to be assigned as Station1 on a Profibus
network. This configuration is used as an example system throughout this
manual. Apart from the node address and option module mapping, most drives
will have identical configurations. This chapter describes the steps to configure a
simple Profibus network like the example shown in
Figure 7 .

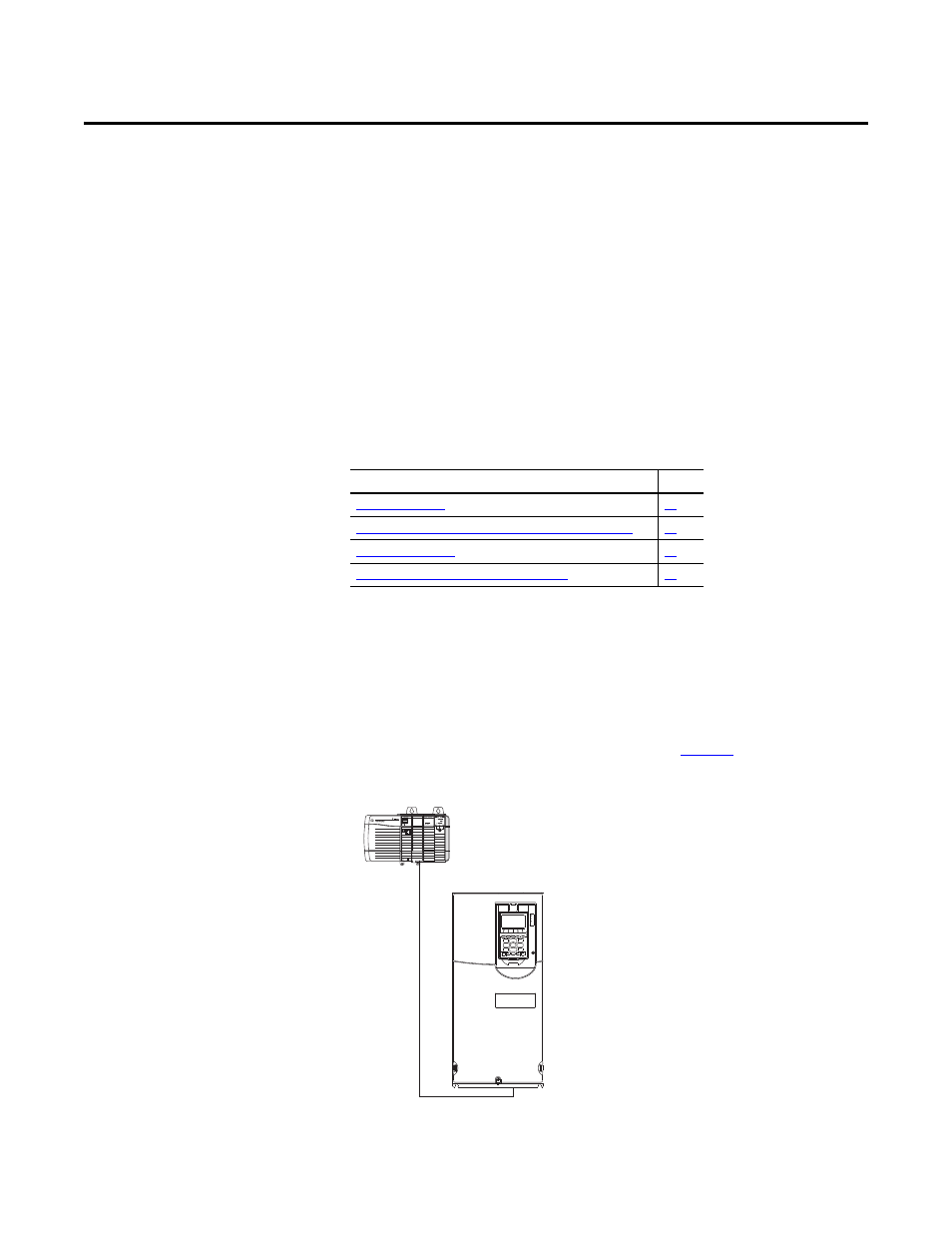

Figure 7 - Example Profibus Network
Topic Page
Example Network 39
Configuring the MVI56-PDPMV1 Profibus DPV1 Master 40
Installing GSD Files 43
Configuring the Option Module as a Slave 45
Station 0
PowerFlex 750-Series
Drive Station 1
