Chapter 3 Configuring the Option Module
Using the PowerFlex 20-
HIM-A6 or 20-HIM-C6S HIM
to Access Parameters
If your drive has an enhanced PowerFlex 20-HIM-A6 or 20-HIM-C6S HIM, it
can be used to access parameters in the option module.
1.
Display the Status screen, which is shown on HIM powerup.
2.
Use the
or
key to scroll to the Port in which the option
module is installed.
3.
Press the PAR#
soft key to display the Jump to Param # entry pop-up box.
4.
Use the numeric keys to enter the desired parameter number, or use the ▲
or ▼
soft key to scroll to the desired parameter number.
For details on viewing and editing parameters, see the PowerFlex 20-HIM-A6/-
C6S HIM (Human Interface Module) User Manual, publicat
.
Setting the Node Address
If the option module Node Address switches (
) are set to ‘00’ (Program),
the value of
Device Parameter 05 - [Net Addr Cfg] determines the node address.
When the Node Address switches are in any other combination of positions, the
switches determine the node address.
1.

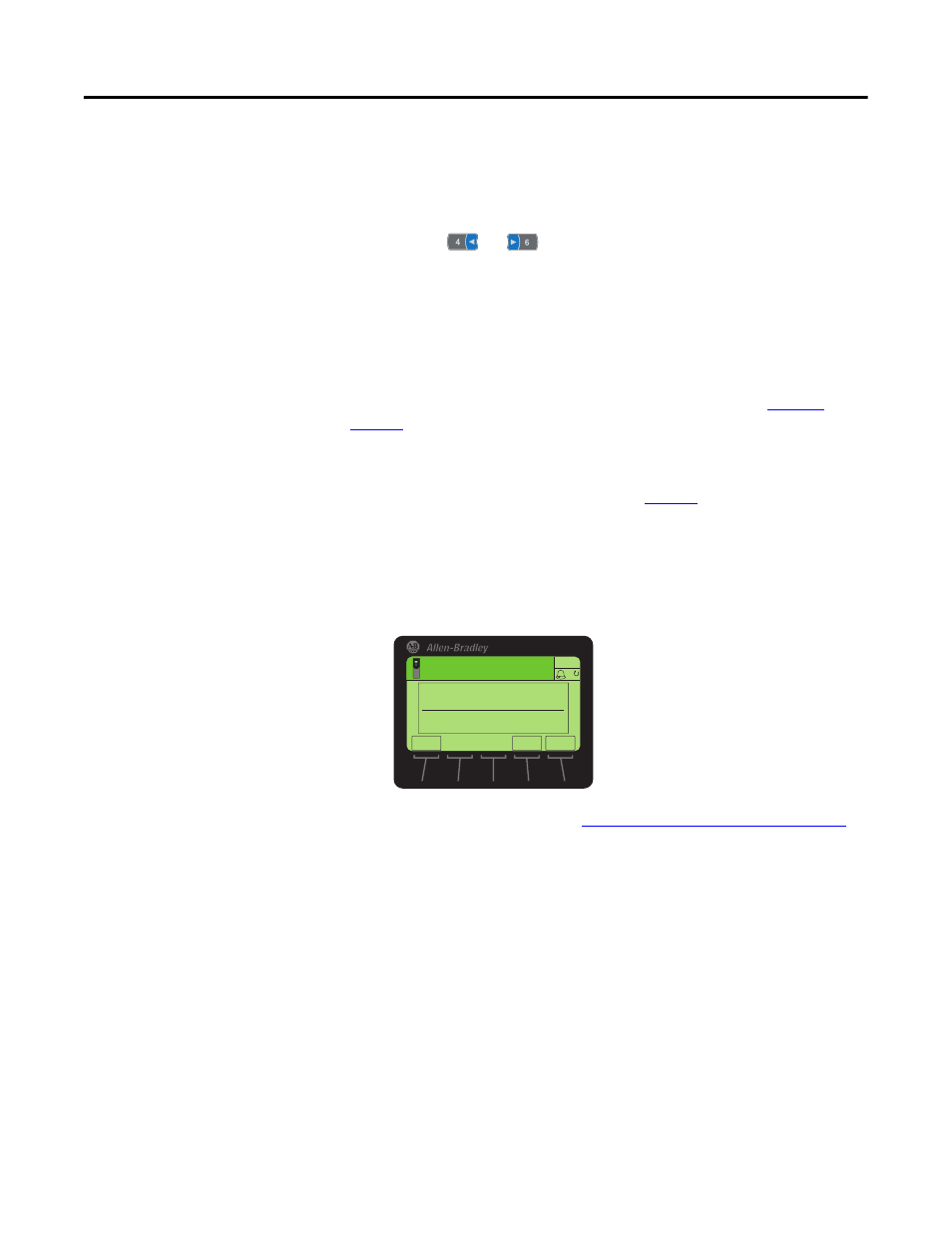

Set the value of
Device Parameter 05 - [Net Addr Cfg] to a unique node
address.
2.
Reset the option module; see
Resetting the Option Module on page 34
.
Setting a Master-Slave
Hierarchy (Optional)
This procedure is only required if Datalinks are used to write or read data of the
drive or its connected peripherals. A hierarchy determines the type of device with
which the option module exchanges data. In a Master-Slave hierarchy, the option
module exchanges data with a Profibus master, such as a ProSoft MVI56-
PDPMV1 Profibus DP scanner. This scanner integrates, as a third party module,
in a ControlLogix controller backplane to allow Profibus DP communications.
Enable Datalinks To Write Data
The controller output image (controller outputs-to-drive) can have 0 to 16
additional 32-bit parameters (Datalinks). They are configured using
Host
ESC
ENTER
Stopped
0.00 Hz
AUTO
F
Edit Net Addr Cfg
1
0 << 126
