Mechanical installation, Chapter, Fastening – Rockwell Automation 56RF RFID System User Manual User Manual
Page 45: Spacing between transceivers
Rockwell Automation Publication 56RF-UM001A-EN-P - October 2011
45
Chapter
5
Mechanical Installation
Each of the transceivers has a similar but unique RF field that it generates.
Fastening
Attach the transceiver to the flat plate with M5 screws. The tightening torque
must be 1.5 N•m for the M5 screw.
Spacing Between
Transceivers
Installing more than one transceiver causes radio frequency interference and may
result in the difficulty of the tag communication. Keep a sufficient distance
between the transceivers as shown in
Figure 12
.

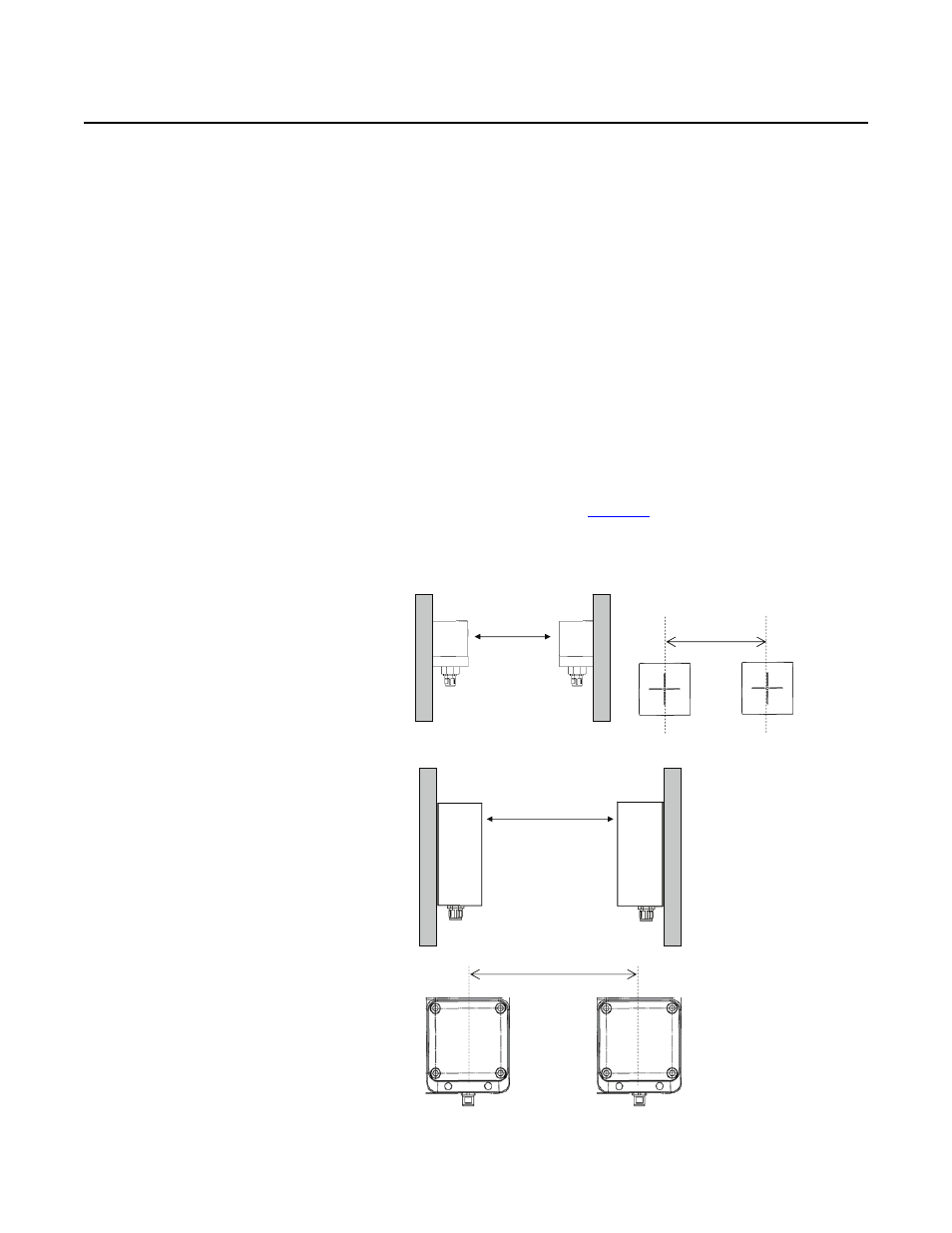

Figure 12 - Spacing Between Transceivers
(300 mm) or more
Square Transceiver
(600 mm) or more
Rectangular Transceiver
(300 mm) or more
(600 mm) or more
