Rockwell Automation Publication 56RF-UM001A-EN-P - October 2011 133
CIP Information Appendix B

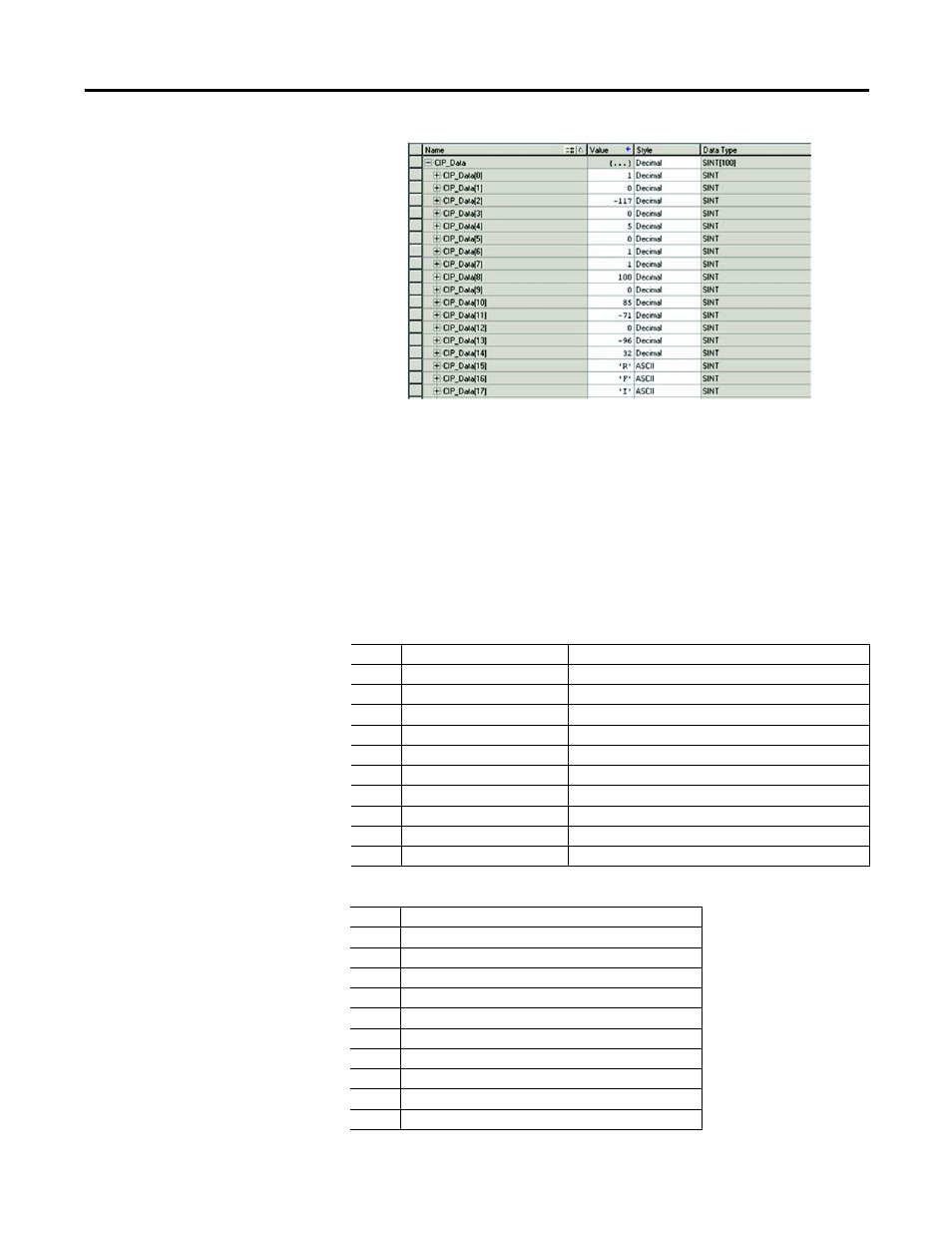

CIP_Data[0]…[1]= Vendor (1=Allen-Bradley)
CIP_Data[2]…[3]= Device Type (139=RFID)
CIP_Data[4]…[5]=Device Code (5=56RF-IN-IPS12)
CIP_Data[6]= Major Revision (1)
CIP_Data[7]= Minor Revision (1)
CIP_Data[8]…[9]= Status (100 decimal, 000000001100100 binary)
CIP_Data[10]…[13]= Serial Number (A000B955)
CIP_Data[14]= Product Name Length (32 bytes)
CIP_Data[15]-[n]= Product Name
Table 22 - Device Status (CIP_Data[8]…[9])
Table 23 - Values for the Extended Device Status (bits 4…7)
Bits Name Description
0 Owned 0=Not Owned, 1=Owned by a Master
1 Reserved Reserved
2 Configured 0=Not configured, 1=Configured
3 Reserved Reserved
4…7 Extended Device Status See table below
8 Minor Recoverable Fault 1=Detected a recoverable minor fault
9 Minor Unrecoverable Fault 1=Detected a non-recoverable minor fault
10 Major Recoverable Fault 1=Detected a recoverable major fault
11 Major Unrecoverable Fault 1=Detected a non-recoverable major fault
12…15 Reserved Reserved
Value Description
0 Self-Testing or Unknown
1 Firmware Update in Progress
2 At least one faulted I/O connection
3 No I/O connections established
4 Non-Volatile Configuration Bad
5 Major Fault
6 At least one I/O connection in run mode
7 At least one I/O connection established, all in idle mode
8 & 9 Reserved
10…15 Vendor specific
