1. Name and Function of Components

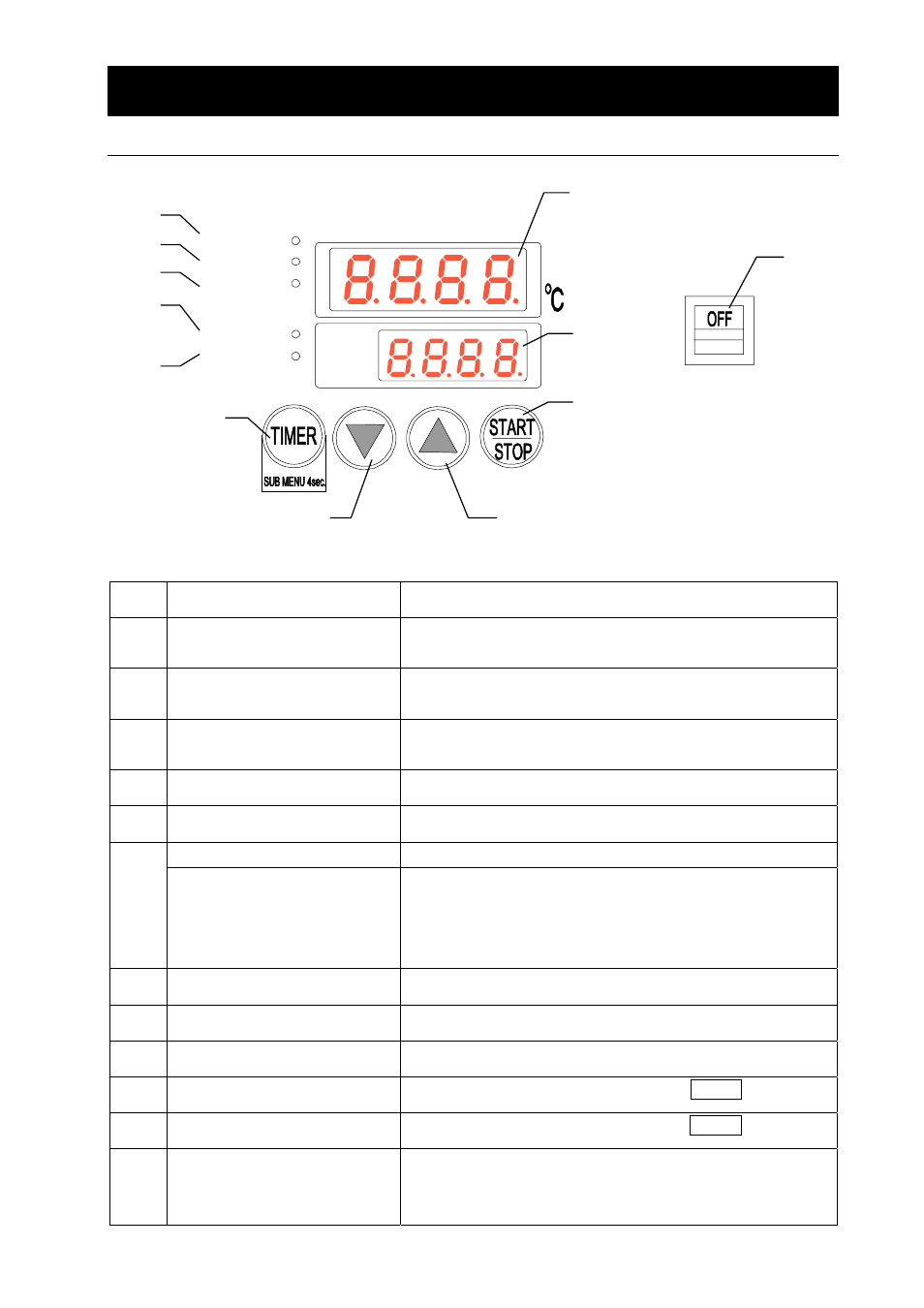

Operation panel
Measured Temp. POWER
Fixed Temp.
Set Temp.
Auto Stop
Auto Start
Heater
Alarm
No. Name Function
① Measured temperature display Displays the bath measured temperature, set mode
character, alarm temperature.
② Set temperature display Displays the set temperature, timer set time, remaining
timer-operation time, character to set the sub-menu.
③ Start/stop key Used to start/stop operation.
Keep pressing for one second.
④ ▲ key Used to increment the set value.
⑤ ▼ key Used to decrement the set value.
Timer key Used to set the timer and sub-menu. ⑥
Sub-menu selector key Keep pressing the key for four seconds, and such
functions as key lock, calibration offset temperature
setting, and power failure compensation selection can be
set.
⑦ Alarm lamp Flashes in case of alarm
⑧ Heater lamp ON when the heater output is ON
⑨ Fixed-value operation lamp ON during the fixed-value operation
⑩ Auto start operation lamp ON during auto-start operation with the TIMER key
⑪ Auto stop operation lamp ON during auto-stop operation with the TIMER key
⑫ Power switch ON to turn ON system power supply and OFF to turn OFF
system power supply. Circuit breaker to turn OFF power
supply at over-current
⑦
⑧
①
②
③
④ ⑤
⑥
⑨
⑩
⑪
⑫
