2. How to operate the unit
Auto-stop operation
7. End of the auto-stop operation
Measured Temp.
Fixed Temp.
Set Temp.
Auto Stop
Auto Start
Heater
Alarm
START
STOP
TIMER
SUB MENU 4sec.
℃
To cancel the auto-stop operation, keep pressing the
START/STOP key. The operation ends and the screen
returns to the temperature setting screen.
Indicates the current bath temperature.
Indicates the current set temperature.

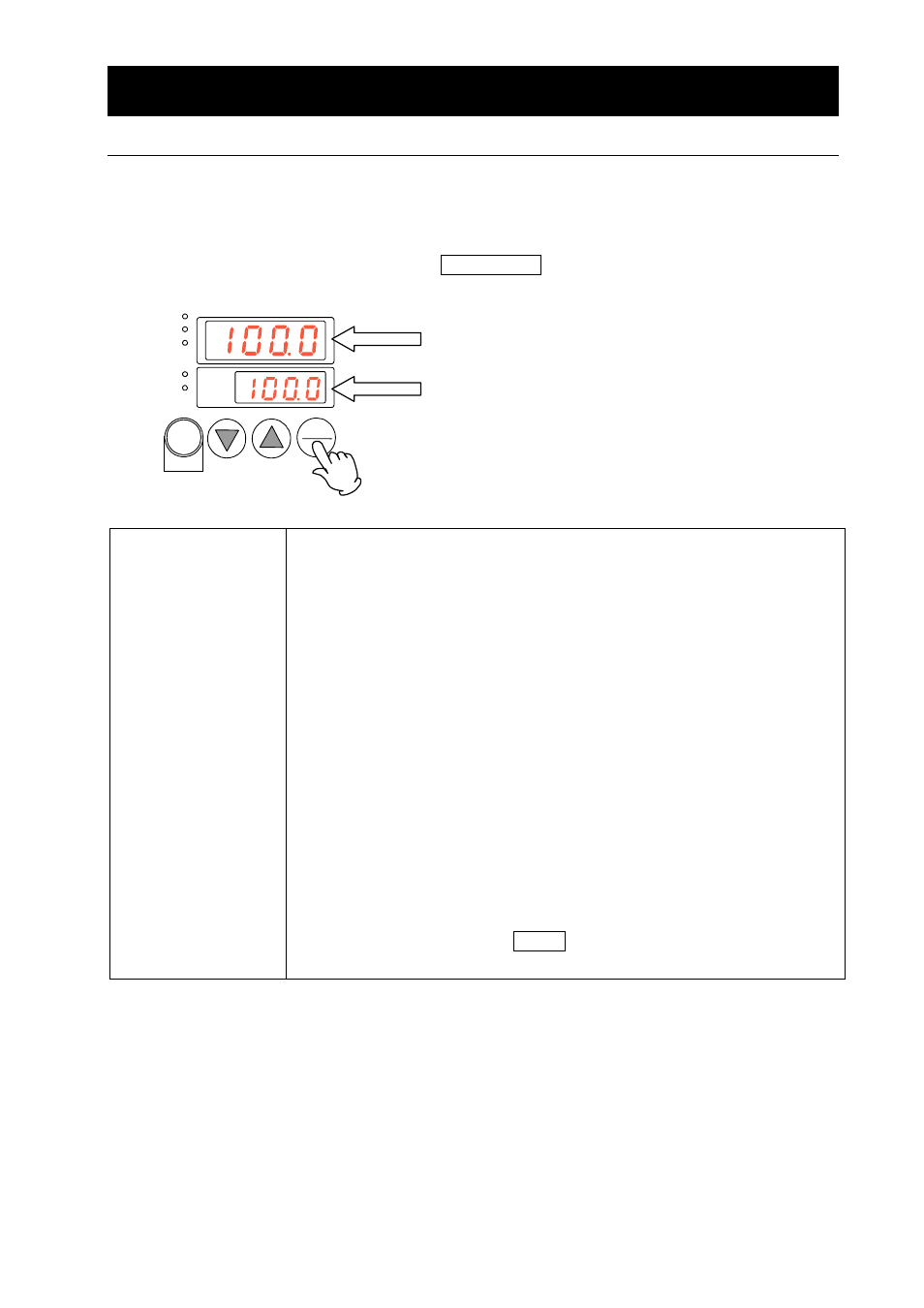

Displays of the
operation panel
used for auto-stop
operation
POWER switch
▼ and ▲ keys
Measured Temp. screen
Set Temp. screen
Auto Stop lamp
Heater lamp
START/STOP key
TIMER key
：
：
：
：
：
：
：
：
With this switch ON, the power is supplied to
the system. With the switch OFF, power
supply is turned OFF. This switch is a
circuit breaker.
Key to change the set temperature or the
time of timer.
Indicates the current bath temperature.
Indicates the set temperature. Indicates the
set and remaining times of the timer.
ON during auto-stop operation
ON with heater energized and flashing in the
controlled state
Operation start/stop key. Keep pressing for
a certain period.
This is a key to set the time of timer during
setting of the auto-stop timer. Press the
TIMER key lightly during fixed-value
operation to show the timer set time.
