DVVC Duct Cover Installation
Installation Manual
DV
5-9-13

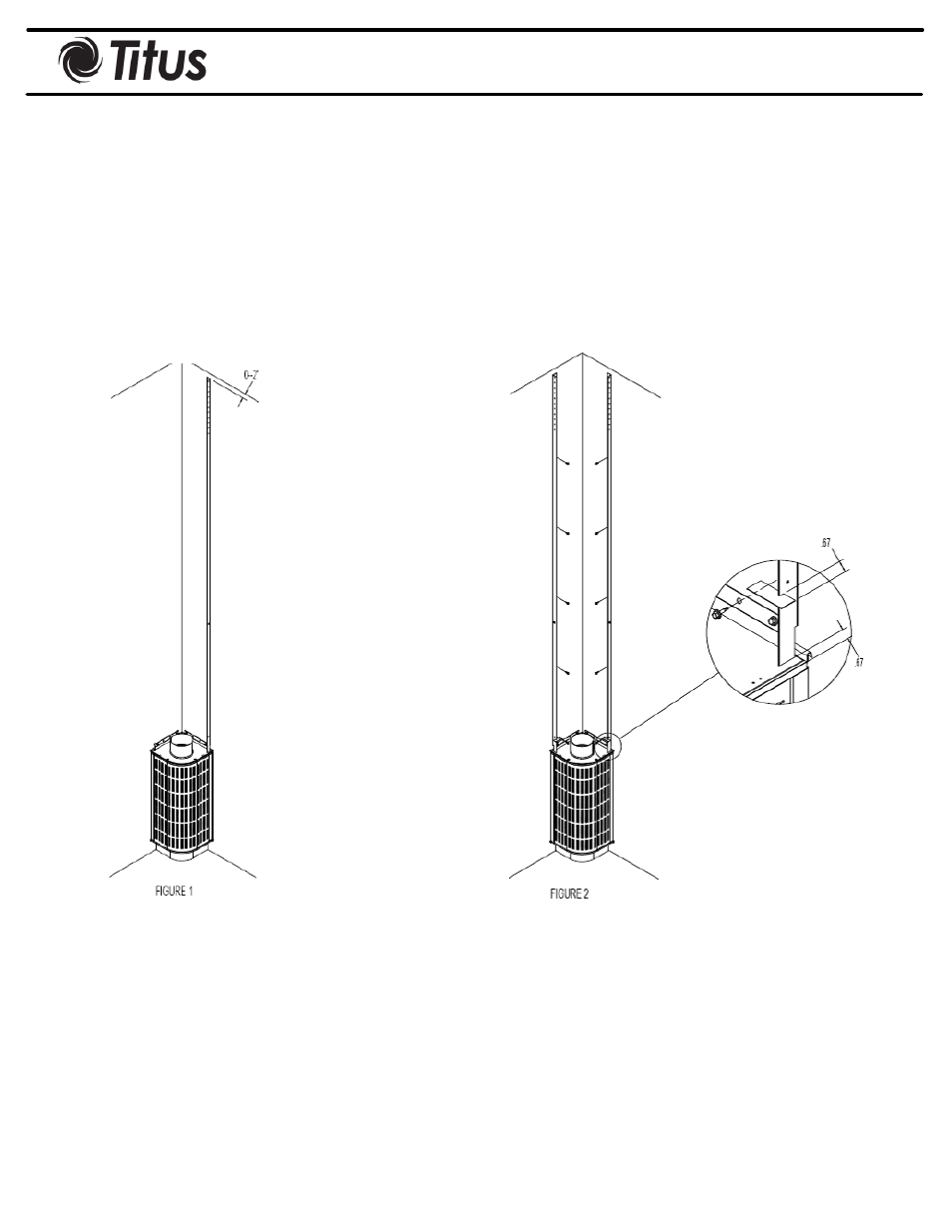

Step 1
Cut the brackets according to the
ceiling height keeping 0-2
” distance
between the ceiling and top of the
bracket.
Step 2
Using spacers align the brackets to the end of
the unit keeping 0.67
” distance from the end
face of the unit. Screw the left and right
brackets to the wall.
3.2
