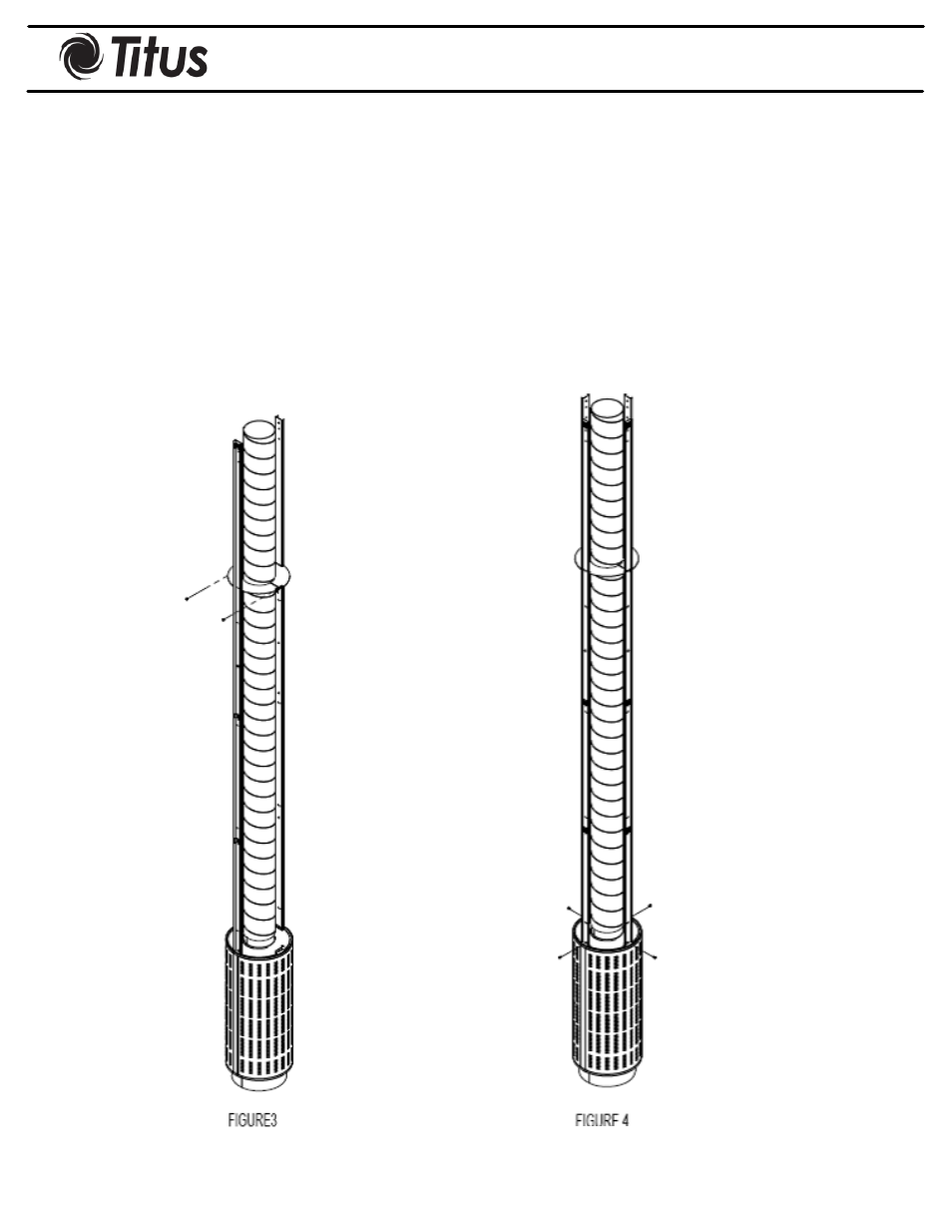

DVCP Duct Cover Installation
Step 3
Install the duct onto the unit. Install the
second duct cover top to the duct
cover support assembly enclosing the
duct. Assemble both the duct cover top
together using pop rivets.
Step 4
Assemble all four duct cover support
assemblies to the duct cover bottom
using pop rivets.
