DVIR Installation

Installation Manual

5-9-13

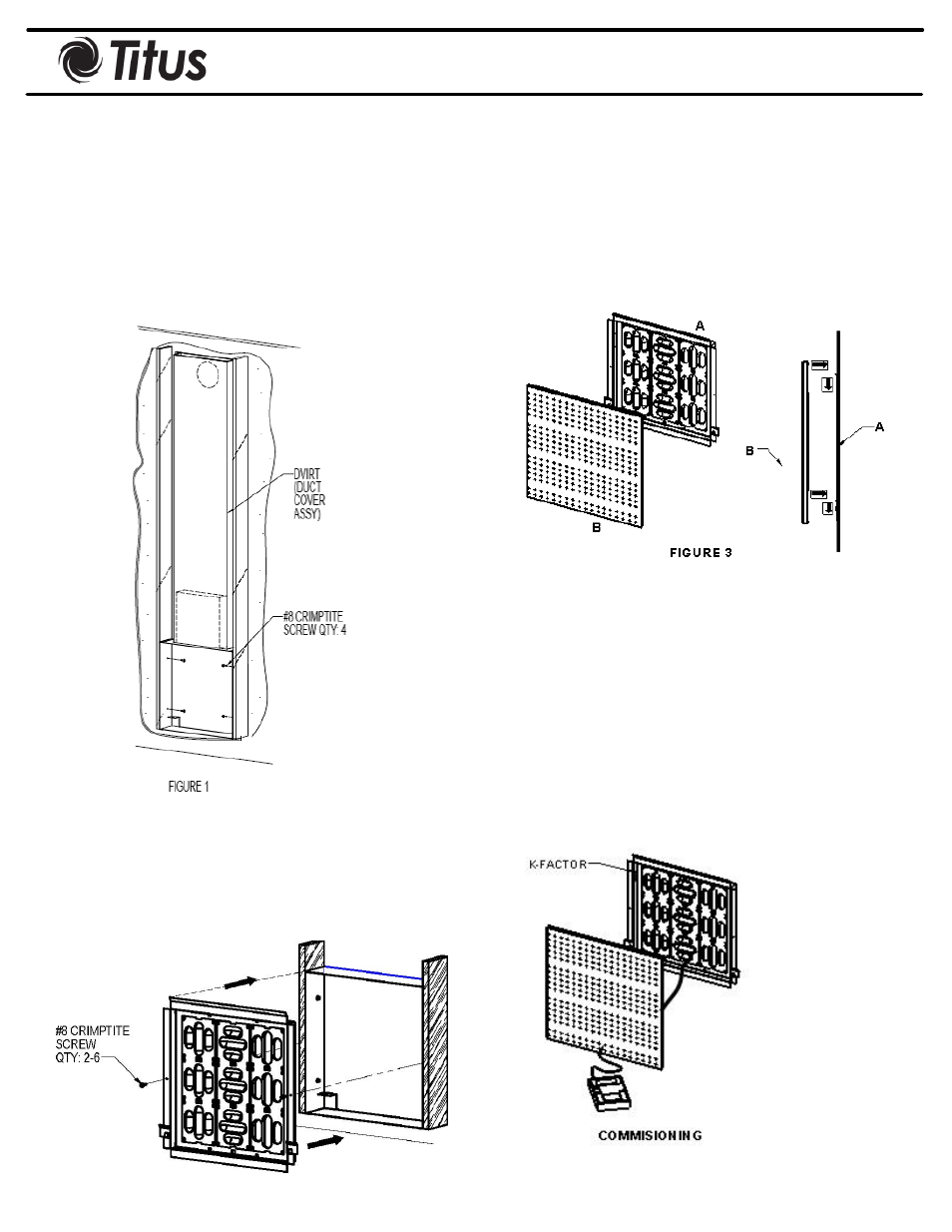

Step 1
Screw the Plenum-Inlet Assembly into
place through the sides. (Note: Plenum-
Inlet Assembly is mounted before the wall
board is fixed)

Step 2
Install the Mounting frame-Distributor
assembly to the wall board using screws.

Step 3
Install front cover onto the Mounting
frame-Distributor assembly.

Commissioning (Balancing)

Uninstall the front cover for
commissioning. The balancing port is
positioned on the lower edge of the unit.
The K-factor of the unit is stated on K-
factor label placed on one of the side of
the Plenum box. The k-factor can also be
found on our website in the relevant k-
factor guide. See Figure 4

FIGURE 4

FIGURE 2
