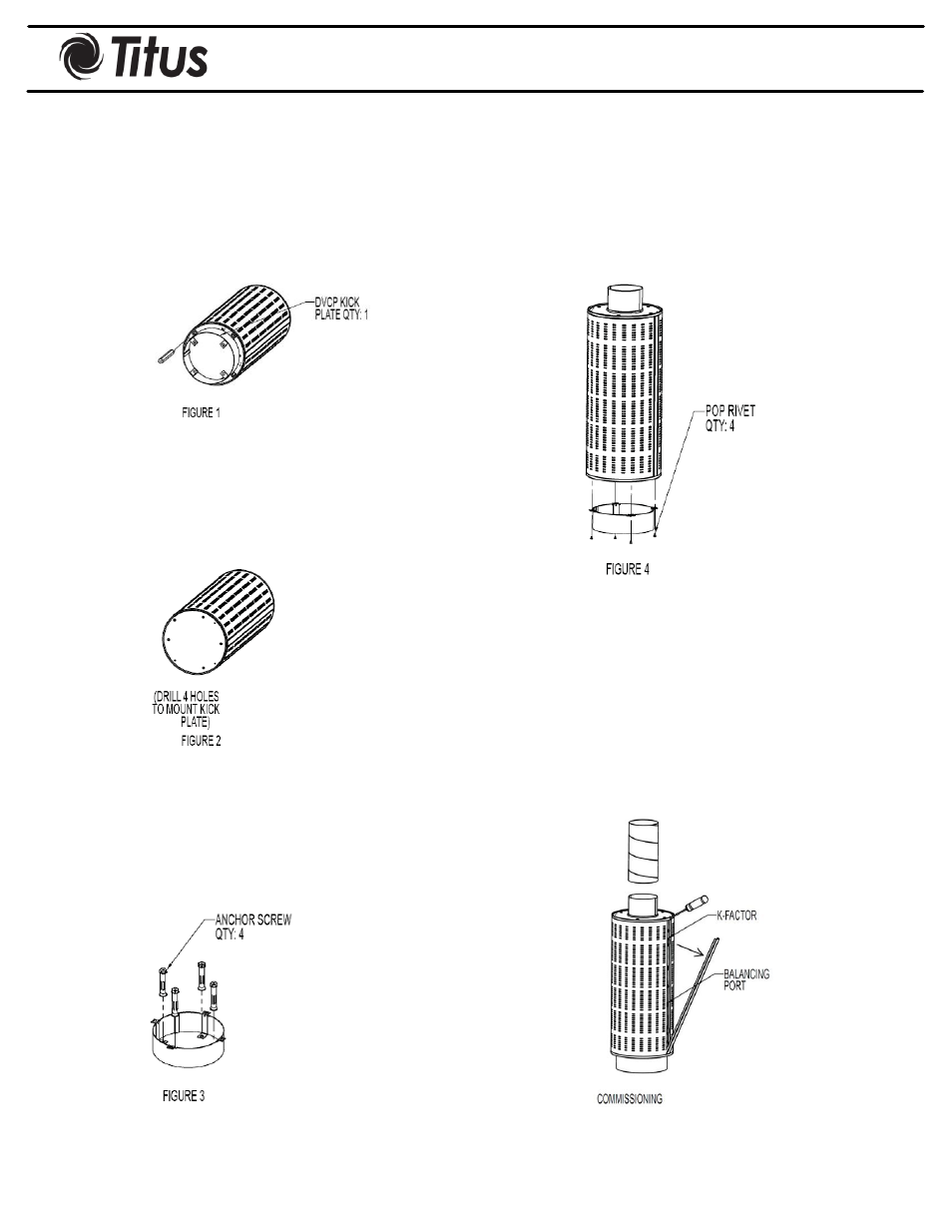

DVCP Installation

Step 1
Mark the positions to drill the 4 holes on
the bottom plate of the unit.

Step 2
Drill holes to mount the mounting base.

Step 3
Install mounting base to the floor using
anchor screws.

Step 4
Install the unit onto the mounting base
using pop rivets.

Commissioning (Balancing)
The balancing port is positioned on
the side behind the decor strip. The K-
factor of the unit is stated on the K-
factor label mounted on one of the
side of the balancing port. The k-
factor can also be found on our
website in the relevant k-factor guide.
See Figure 5

Installation Manual

DV

5-9-13

2.0

FIGURE 5
