DVHC Installation
Installation Manual
DV 5-9-13

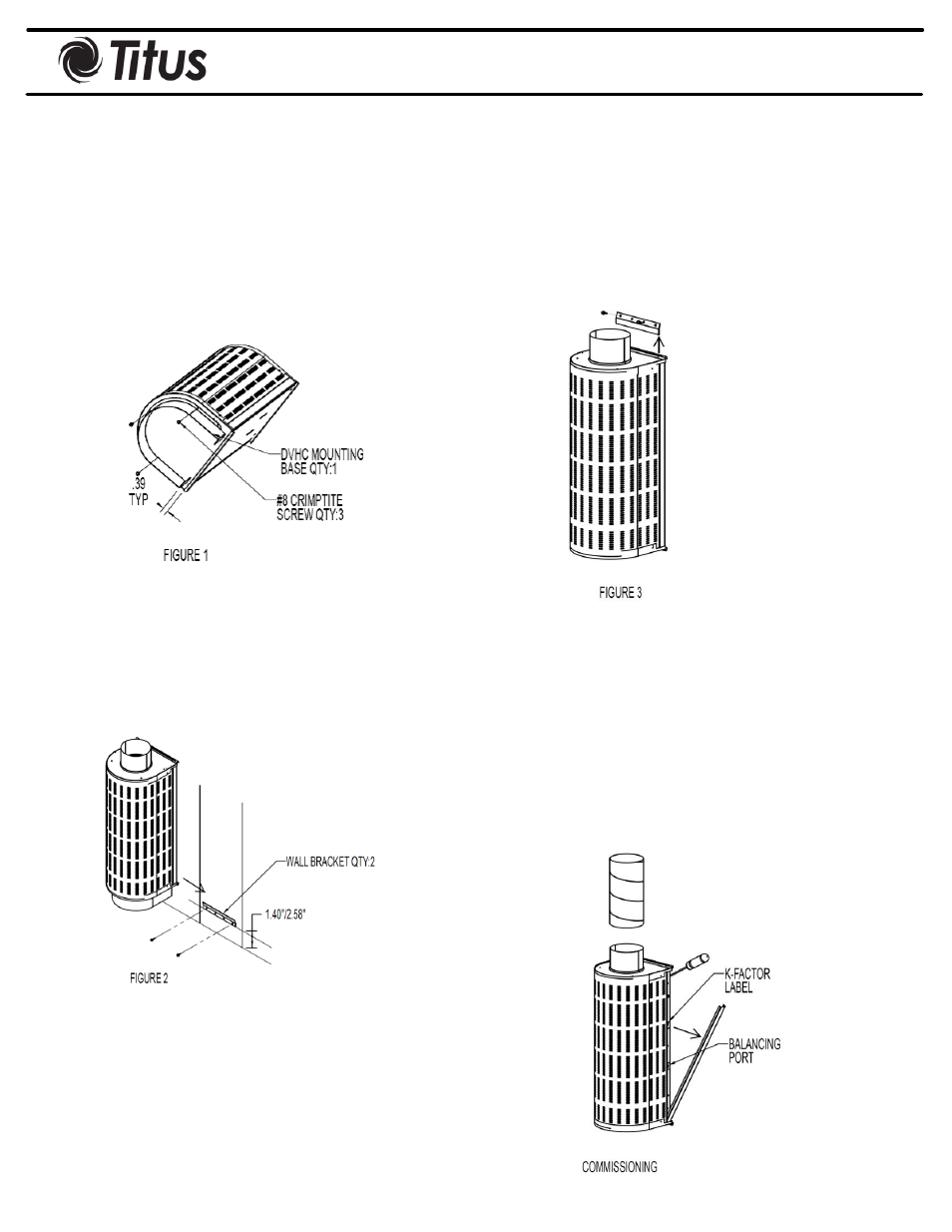

Step 1
Drill the holes on the bottom plate of
the unit and the mounting base. Install
the mounting base into place using
screws.
Step 2
Install wall bracket to the wall using
screws and slide the bottom of the unit
into the angle wall bracket.
Step 3
Install wall bracket to the wall to hold
the top of the unit using screws.
Commissioning (Balancing)
The balancing port is positioned on the
side behind the decor strip. The K-
factor of the unit is stated on the K-
factor label mounted on one of the side
of the balancing port. The k-factor can
also be found on our website in the
relevant k-factor guide. See Figure 4
4.0
FIGURE 4
