DVCP Duct Cover Installation

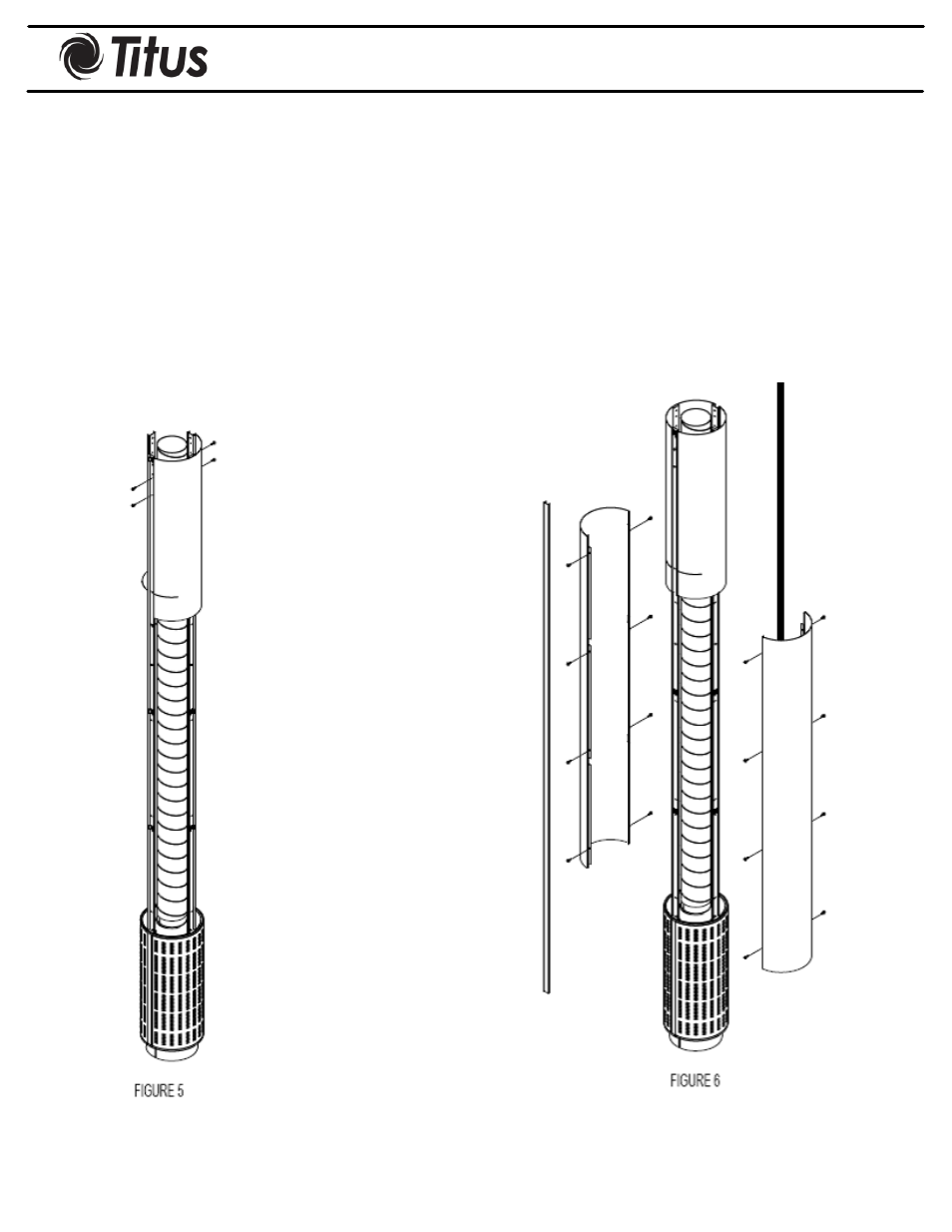

Step 5
Align the top edge of the duct cover
support assembly with the top face of the
extension and install the extension
assembly onto the duct cover support
assembly using screws. (Décor strip of the
unit should align with the décor strip of the
duct cover assembly) Step 6
Place the duct cover on the top of the unit
and assemble it to the duct cover support
assembly using screws. Snap the décor strips
into the springs of the duct cover support
assemblies.
