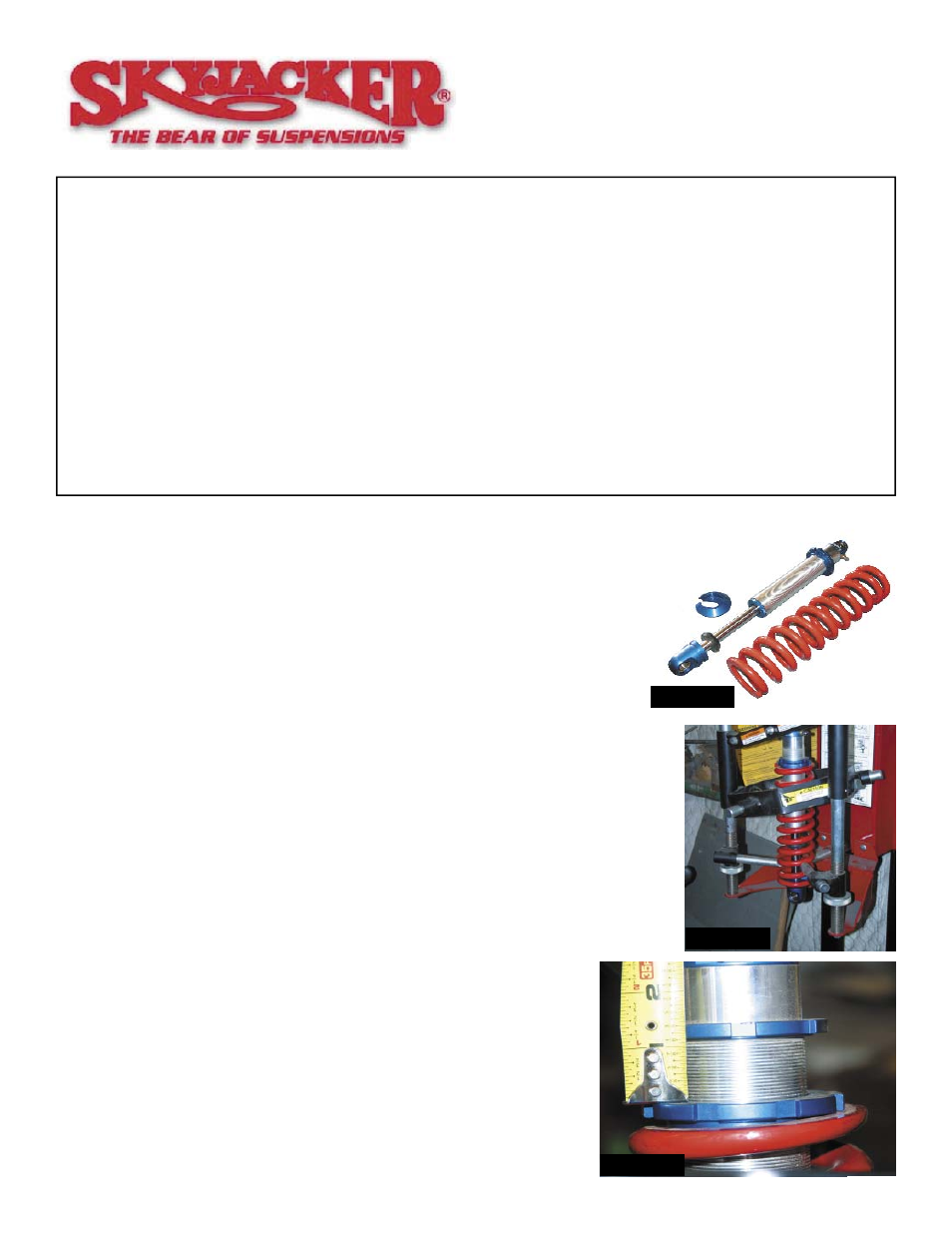

1. Photo #1 shows the shock the way the coil over will be received in
the box.
2. Install lower spring seat on to shock. Using a spring compressor,
install the coil spring on to the shock. (See Photo #2)
3. Spin the upper locking spanner all the way to the top. Photo #3
shows 1 3/8" between the top of the upper spanner and the top of
the lower. This is the recommended starting point for installation.
4. After installation, Be sure to tighten the upper spanner securely
using the supplied spanner wrench and a 3/8" drive ratcet.
Platinum Series Coil Over
Assembly
-Each Platinum Series coil over assembly will require assembly prior to installation. The
final settings will have to be made when installation occurs. The final adjustment will differ
depending on engine size, winch, bumper, accessories, etc.
-When final adjustments are made the spanner should be tightened. At no time should the
coil over assembly be installed without the spanner being tight! After final installation, both
Coil Over Assemblies should be adjusted to the same height.
-Do not adjust Coil Over assembly outside of lift height specifications. This will result in lim-
iting the shock travel causing possible damage to the shock and other components.
Photo #3
Pg 4
Photo #1
Photo #2
