MAINTENANCE/SERVICE
REEL AND REEL DRIVE (continued)
Centering the Reel
Center the reel between the end sheets by
adjusting the reel support arm brace (D).
To adjust:
1. Loosen two nuts (E).
2. Position brace (D) as required to center reel.
3. Tighten nuts (E) to 60 to 90 ft.lbs. (80 to 120
N
⋅m).

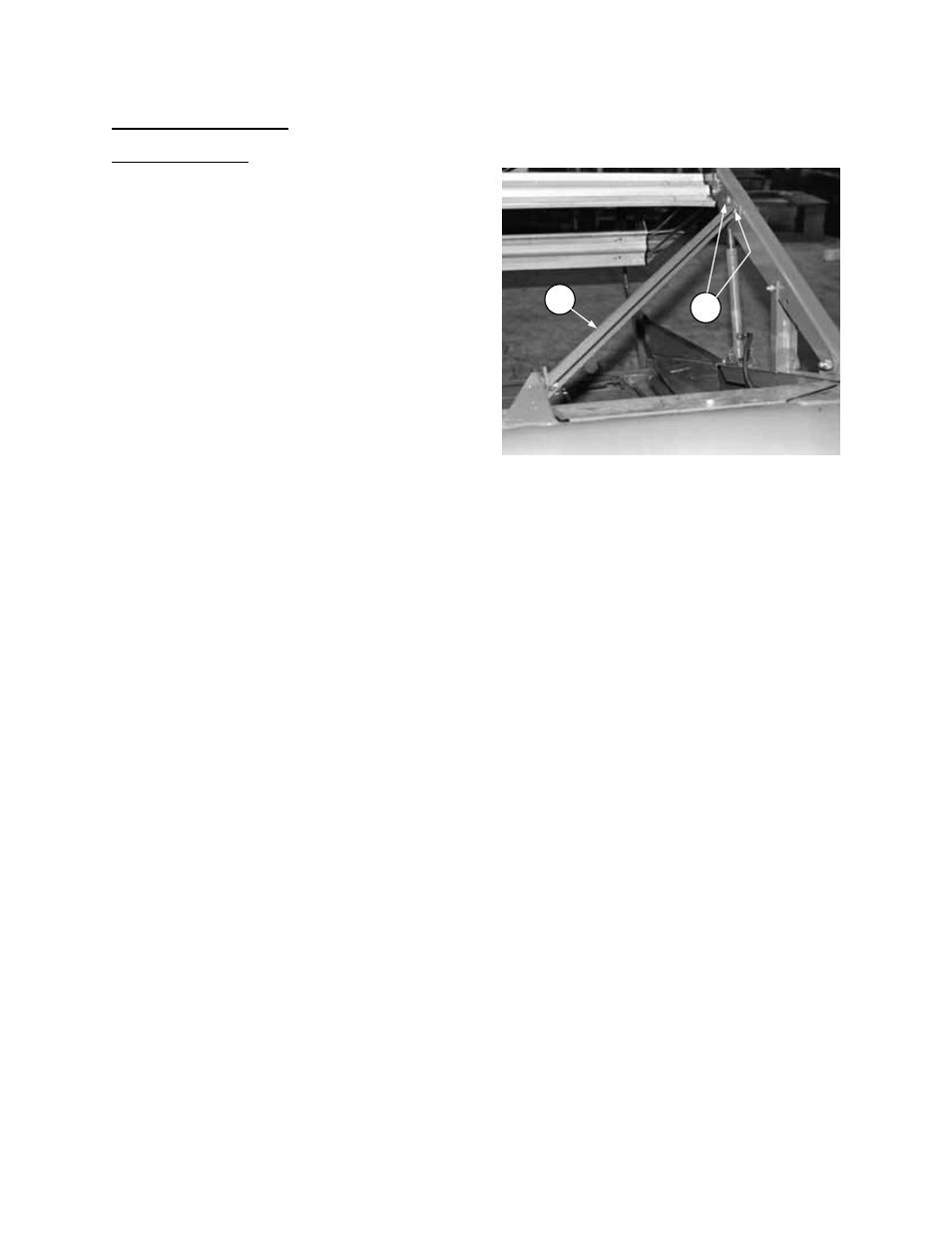

REEL CENTERING ADJUSTMENT
E
D
