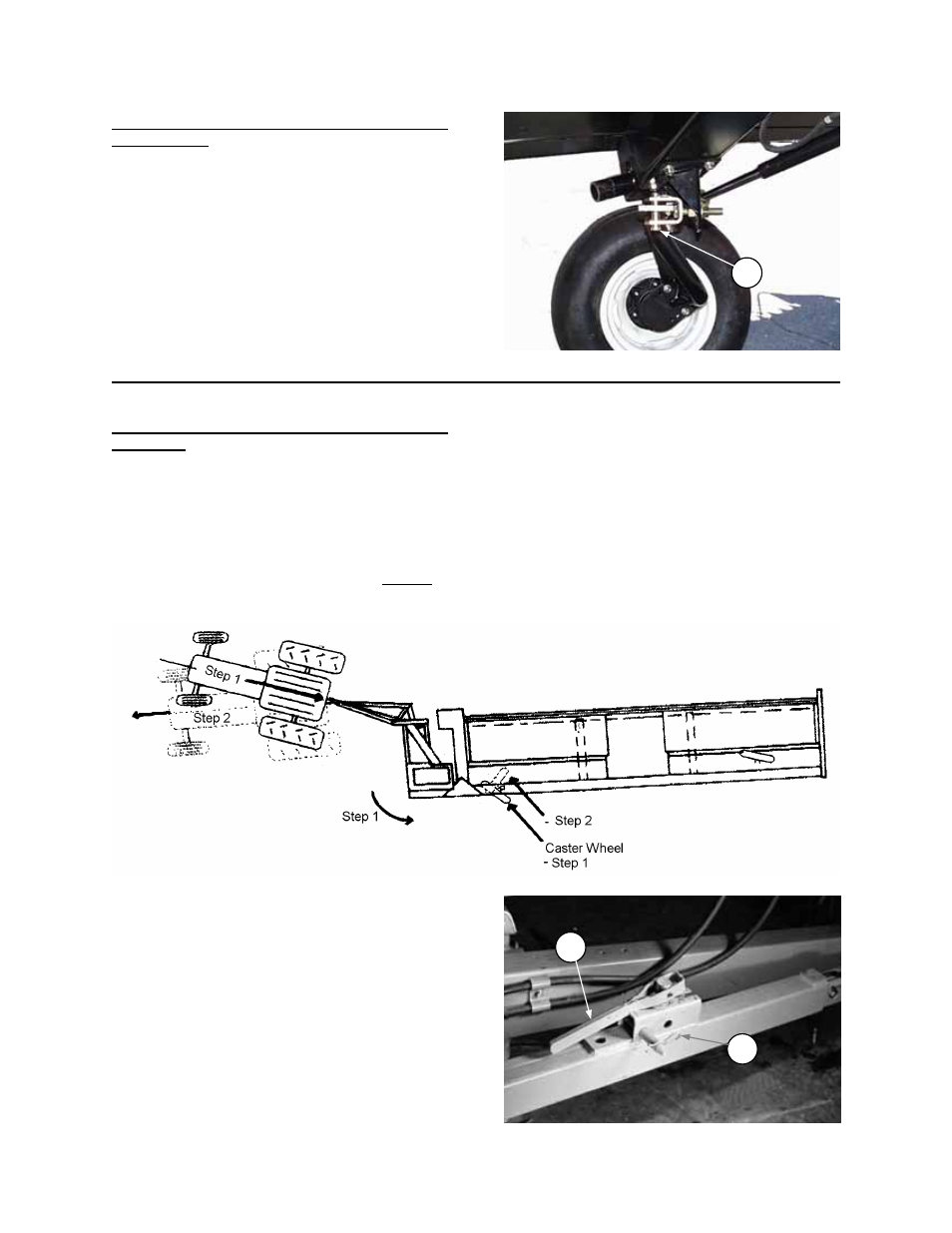

MacDon 3020 Pull-Type Windrower - Manual (Page 44)

33
OPERATION
CONVERTING FROM FIELD POSITION TO
TRANSPORT
5. Install lock pins (continued)
c. Install pin (E) to lock right wheel in transport
position. Secure with hairpin.
CONVERTING FROM TRANSPORT TO FIELD
POSITION
1. Reverse windrower while steering tractor front
wheels to the left to angle caster wheel inward.
See diagram, Step 1.
2. Drive forward to check that the caster wheel
will turn inward, i.e. rotate under the backsheet.
If yes, continue forward until wheel is starting to
face to the rear. See diagram, Step 2. If not,
repeat wheel positioning, Step 1.
3. Raise header to full height.
4. Place levers and pins in field position:
a. Remove lock pin (A) from telescoping hitch and
store. Secure with hairpin.
b. Rotate lever (B) on hitch to field position.
RIGHT WHEEL LOCK - ENGAGED
E
HITCH LEVER & PIN - FIELD POSITION
A
B
