21
OPERATION
REEL PROPS
WARNING: To avoid injury from fall
of raised reel, always engage reel
props (A) before going under raised
reel for any reason.
Keep pivot bolt properly tightened so prop remains
in stored position when not in use, yet can be
engaged with hand force.
36 foot units only:
To engage center reel arm lock pin, raise reel and
install pin at (B). Secure with hair pin.
When not in use, store pin at (C).
REEL HEIGHT
Reel height is controlled from the tractor with
remote cylinder control valve lever. Depending on
crop height, adjust reel height to carry the material
through the sickle onto the drapers.
Down crop will require a lower reel height while
bushy crop may require raising the reel to prevent
unevenness in the windrow.

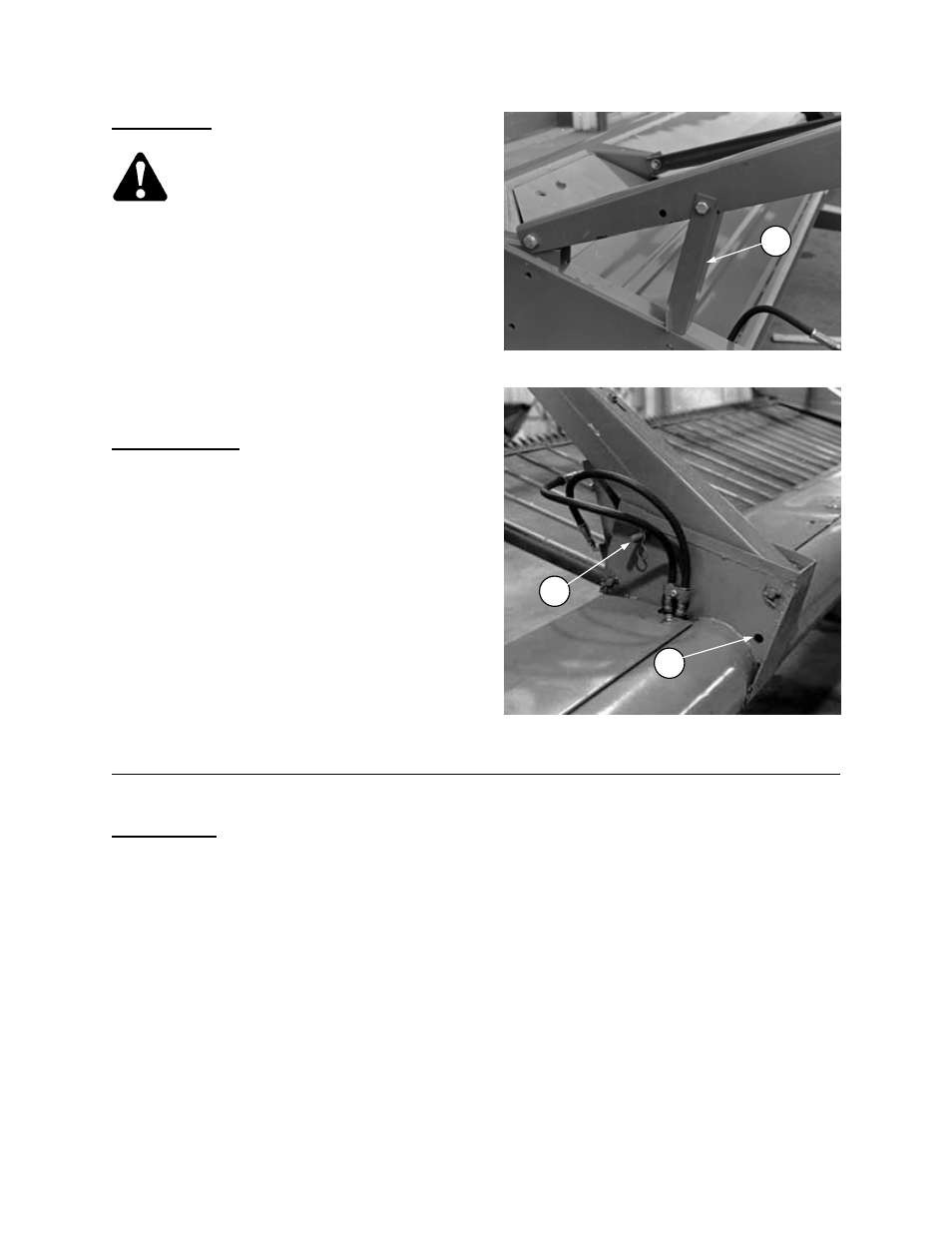

REEL PROP - ENGAGED
A
CENTER SUPPORT ARM LOCK PIN
36 ft. UNIT - ENGAGED
B
C
