40
MAINTENANCE/SERVICE
GREASING THE WINDROWER
100 Hours or Annually (continued):
4. Sickle Drive Pulley Bearings (D) - one fitting
5. Pitman Bearings (E) - two fittings
6. Draper Drive Shaft Bearings (F)
21, 25, 36 ft. - three fittings
30 ft. - four fittings
7. Draper Drive Shaft Wooden Support Bearings
(G) - 36 ft. only - three fittings
Remove center shield for access.

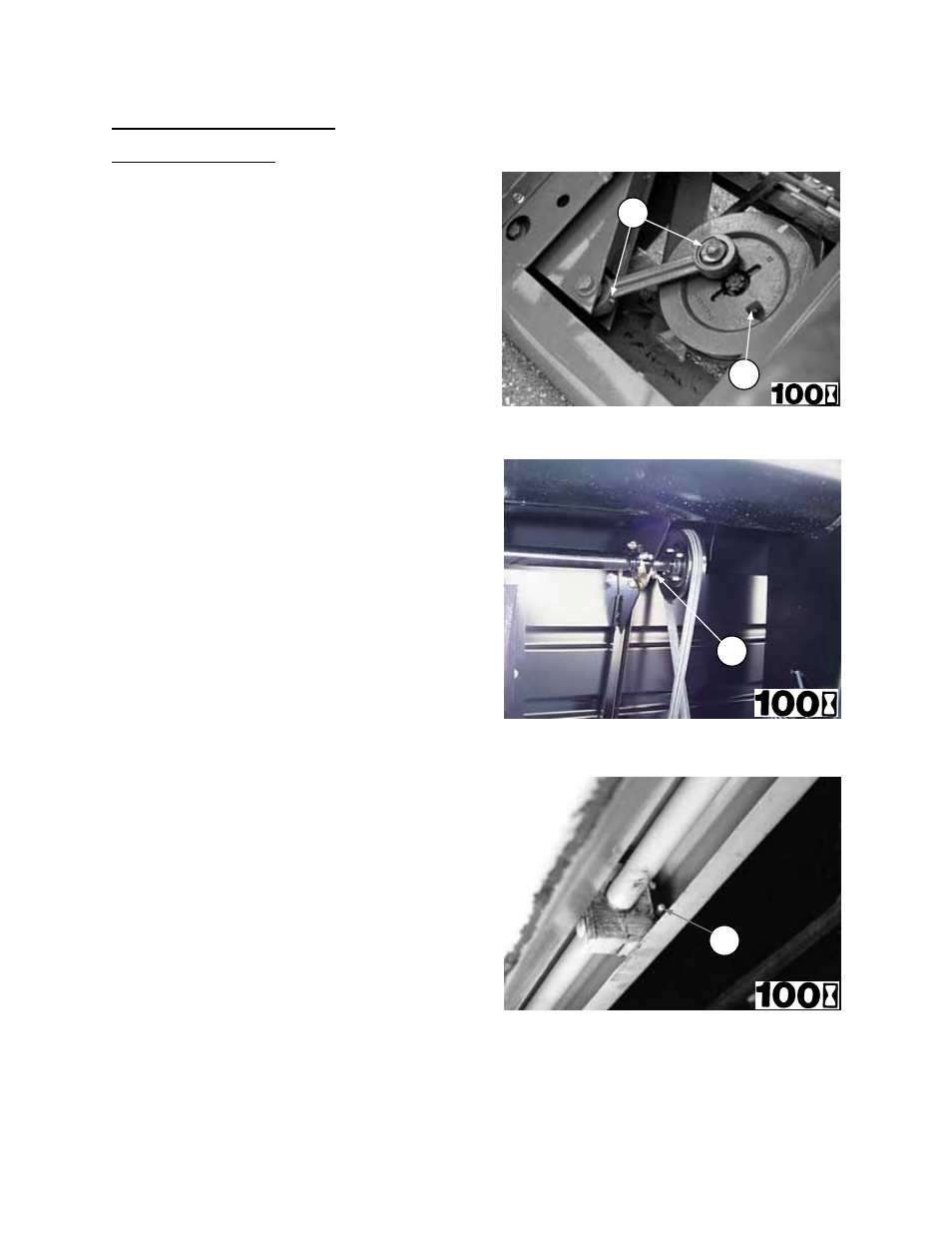

SICKLE DRIVE PULLEY AND PITMAN BEARINGS
E
D
DRAPER DRIVE SHAFT BEARINGS
F
DRAPER DRIVE SHAFT WOODEN
SUPPORT BEARINGS - 36 ft. ONLY
G
