6.11.5 Flatbed
CAUTION
Use the following procedure when
transporting the mower conditioner on a
flatbed trailer.
6.11.5.1 Loading

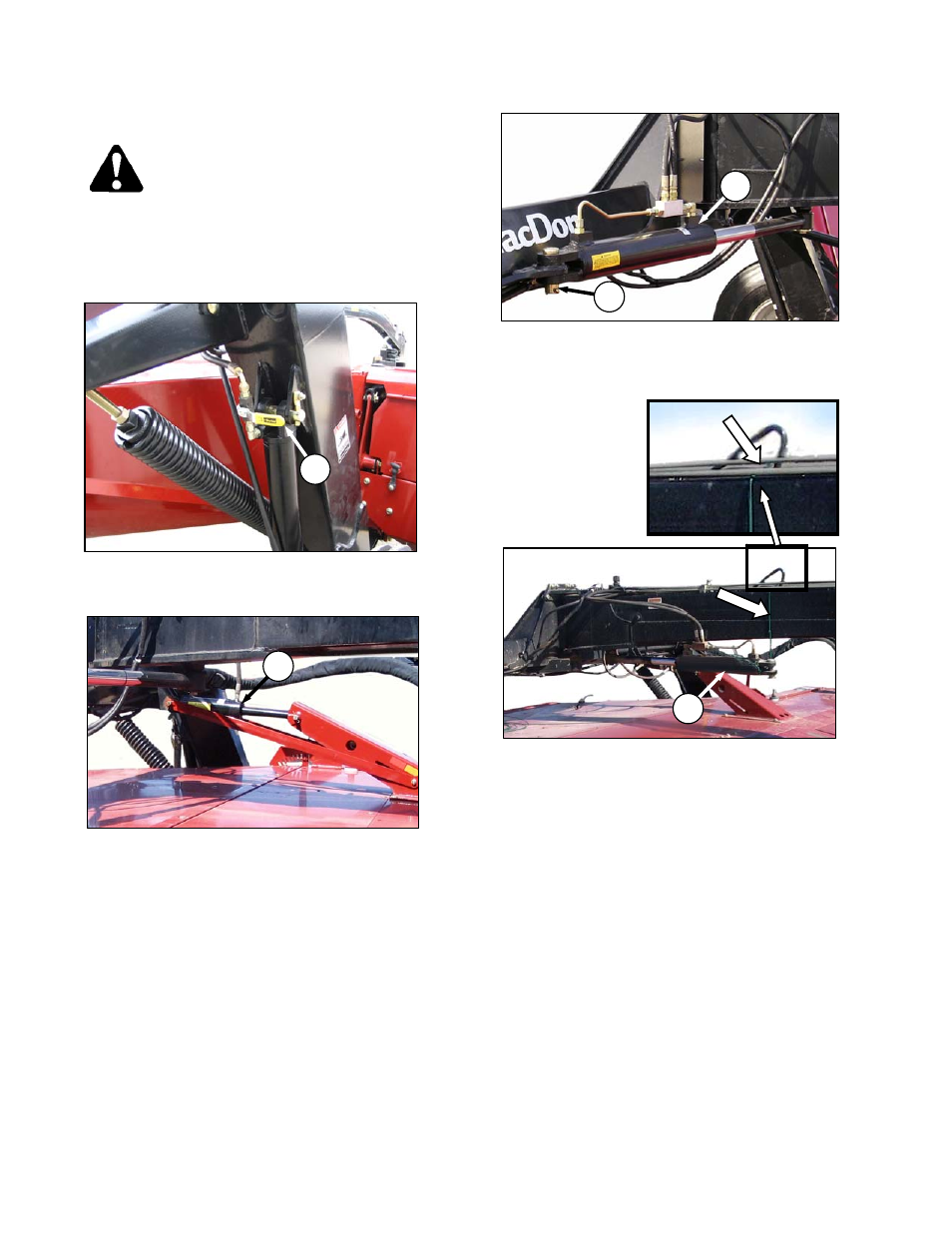

a. Lower the header to the ground, and engage lift
cylinder lock-out valves (A).
b. Retract header angle control link (B) to minimum
length.
c. Unhook tractor from mower conditioner. See
Section 6.5 MOWER CONDITIONER/
TRACTOR UNHOOK.
d. Remove pin (C) attaching steering cylinder (D)
at frame, and swing cylinder under APT hitch.
Store pin in barrel end of cylinder.
e. Secure cylinder (D) to APT hitch with shipping
wire (or equivalent).
IMPORTANT
Ensure shipping wire is NOT over the
hydraulic lines.
(continued next page)
D
C
D
A
B
