OPERATION
169454
33
Revision C

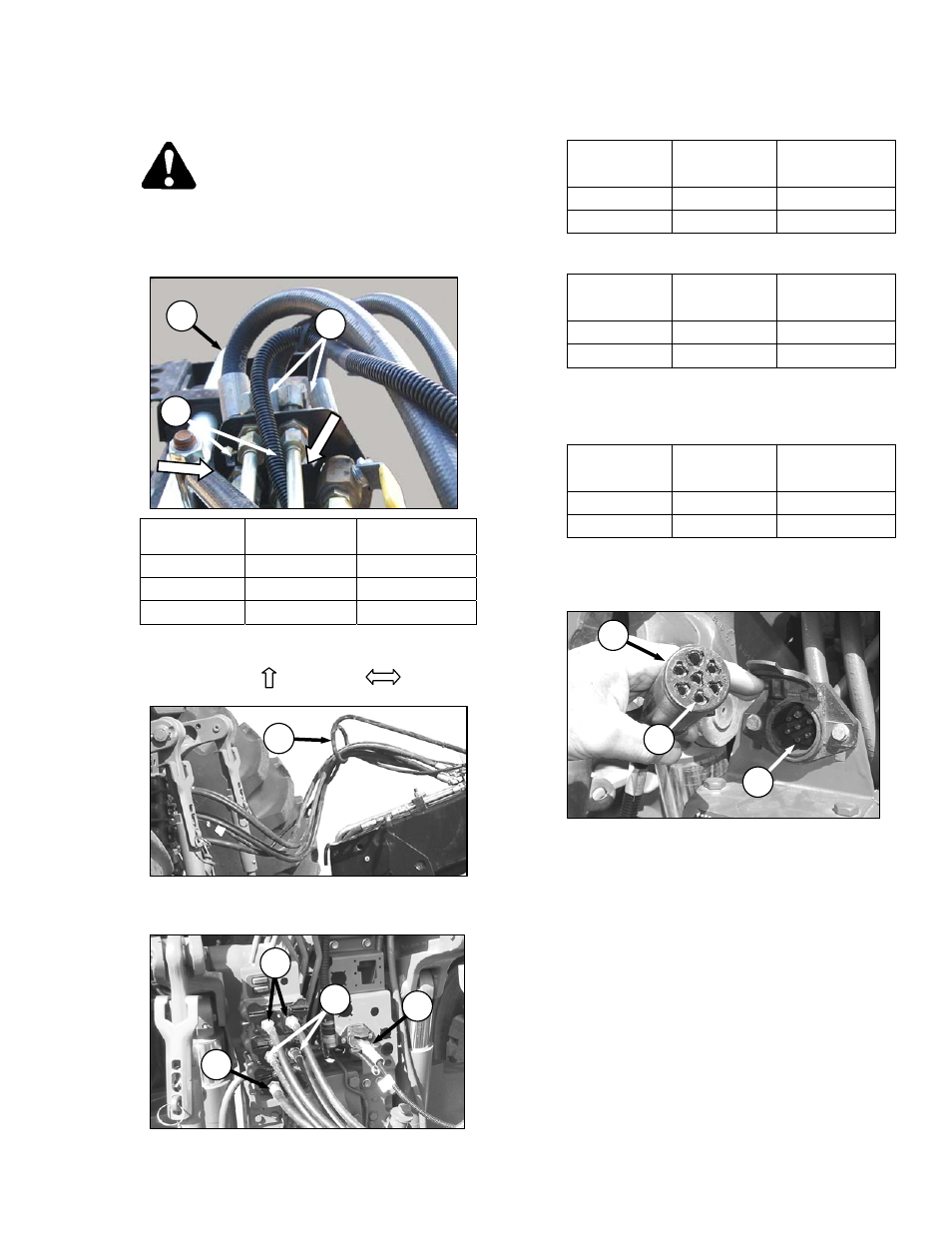

6.4.3 Hydraulic Connections
WARNING
Do NOT use remote hydraulic system
pressures over 3,000 psi (20,684 kPa).
Check your tractor operator’s manual for
remote system pressure.
SYSTEM HOSE TRACTOR
HYDRAULICS
Steering A (2 Hoses) Control 1
Lift B (1 Hose) Control 2
Header Tilt C (2 Hoses) Control 3
NOTE
Arrows cut into plate indicate system for
hoses. LIFT STEERING
a. Ensure hoses are routed through guide (E) to
provide proper hose arc (as shown).
b. Connect two STEERING cylinder hoses (A) as
follows:
CONTROL
LEVER
POSITION
CYLINDER
MOVEMENT
MOWER
CONDITIONER
DIRECTION
Forward Extend Right
Backward Retract Left
c. Connect
one LIFT cylinder hose (B) as follows:
CONTROL
LEVER
POSITION
CYLINDER
MOVEMENT
HEADER
MOVEMENT
Forward Retract Lower
Backward Extend Raise
d. Connect two HEADER TILT cylinder hoses (C)
as follows: (Not required with mechanical
center-link).
CONTROL
LEVER
POSITION
CYLINDER
MOVEMENT
HEADER
MOVEMENT
Forward Retract Lower
Backward Extend Raise
6.4.4 Electrical Connection
a. Check that Pin #4 (E) in the tractor receptacle is
NOT constantly energized - see your tractor
operator’s manual, and remove the appropriate
fuse if required.
IMPORTANT
Older model tractors will have Pin #4 (E)
energized as an accessory circuit. The
R85 mower conditioner uses this pin
position (F) for brake lights.
b. Connect the mower conditioner wiring harness
connector (G) to tractor. The connector is
designed to fit tractors equipped with a round
7-pin receptacle (SAE J560).
E
B
A
C
A
C
B
G
E
F
G
