“Scaled” RPM inputs from this table define the RPM break points used in the following
tables, to name a few, which are described later in this manual!!!

• Dwell Time Table

• Injector Phase Angle (degree) Table
• Boost Spark (retard) Table

• Starting Line Timing Table

Y-Axis

X-Axis

Cell Number 16

Cell 1

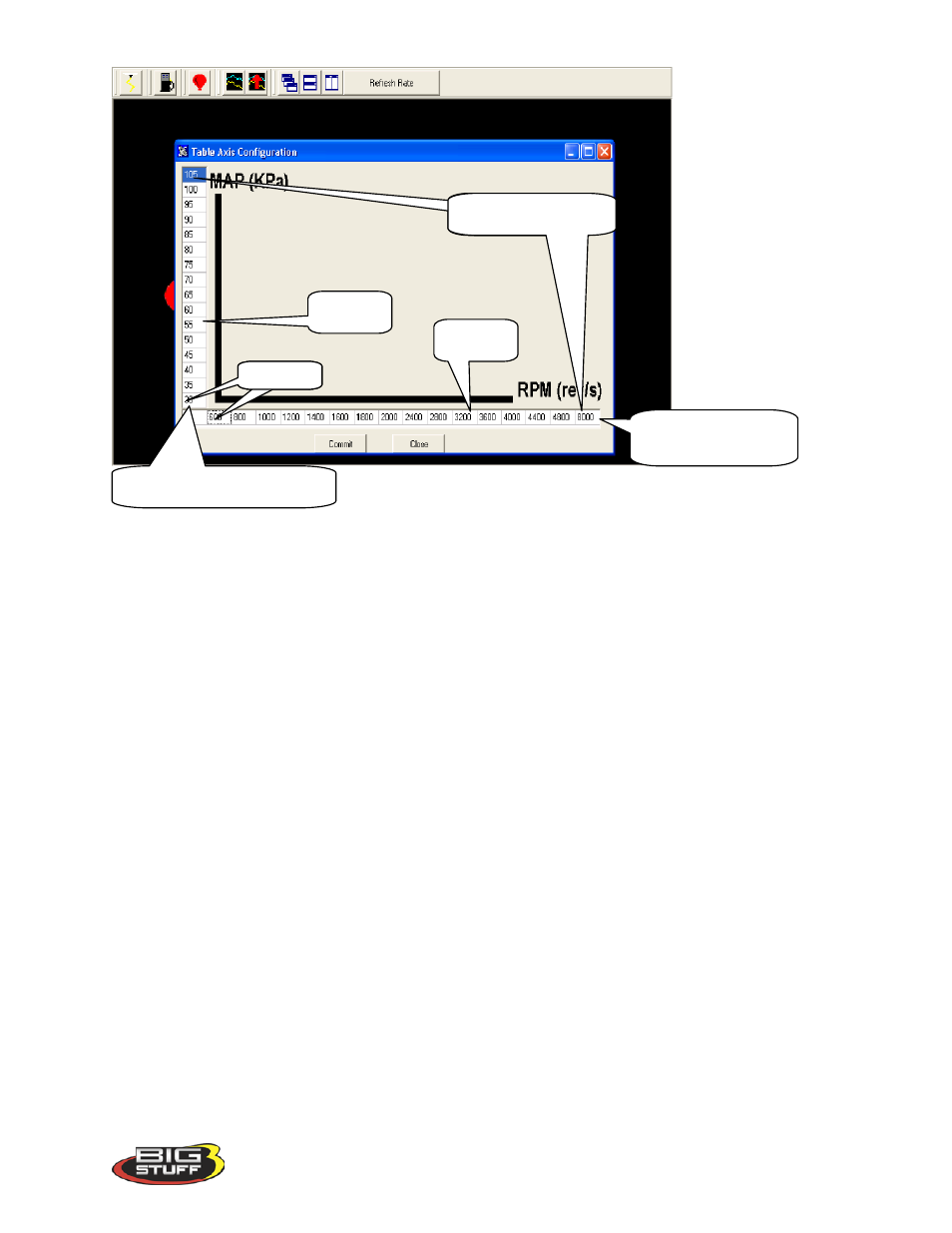

Scaled RPM Axis
(X- Axis)

Scaled Load Axis (Y-Axis)
