Omnitron Systems Technology iConverter 1 Module Redundant Power Chassis User Manual
Page 14
3.4
Ethernet Backplane
The chassis contains two Ethernet backplane buses (A and B) that operate at
10/100Mbps. Both buses are enabled by default. When an
iConverter
module
that features Ethernet backplane connectivity is installed in the chassis, the A
bus connects directly to UTP Port A, and the B bus connects directly to UTP
Port B as shown in Figure 6.
UTP
Port A
UTP
Port B
Backplane B
Backplane A
Inserted Module
Port 1
Port 2
Ethernet
Switch

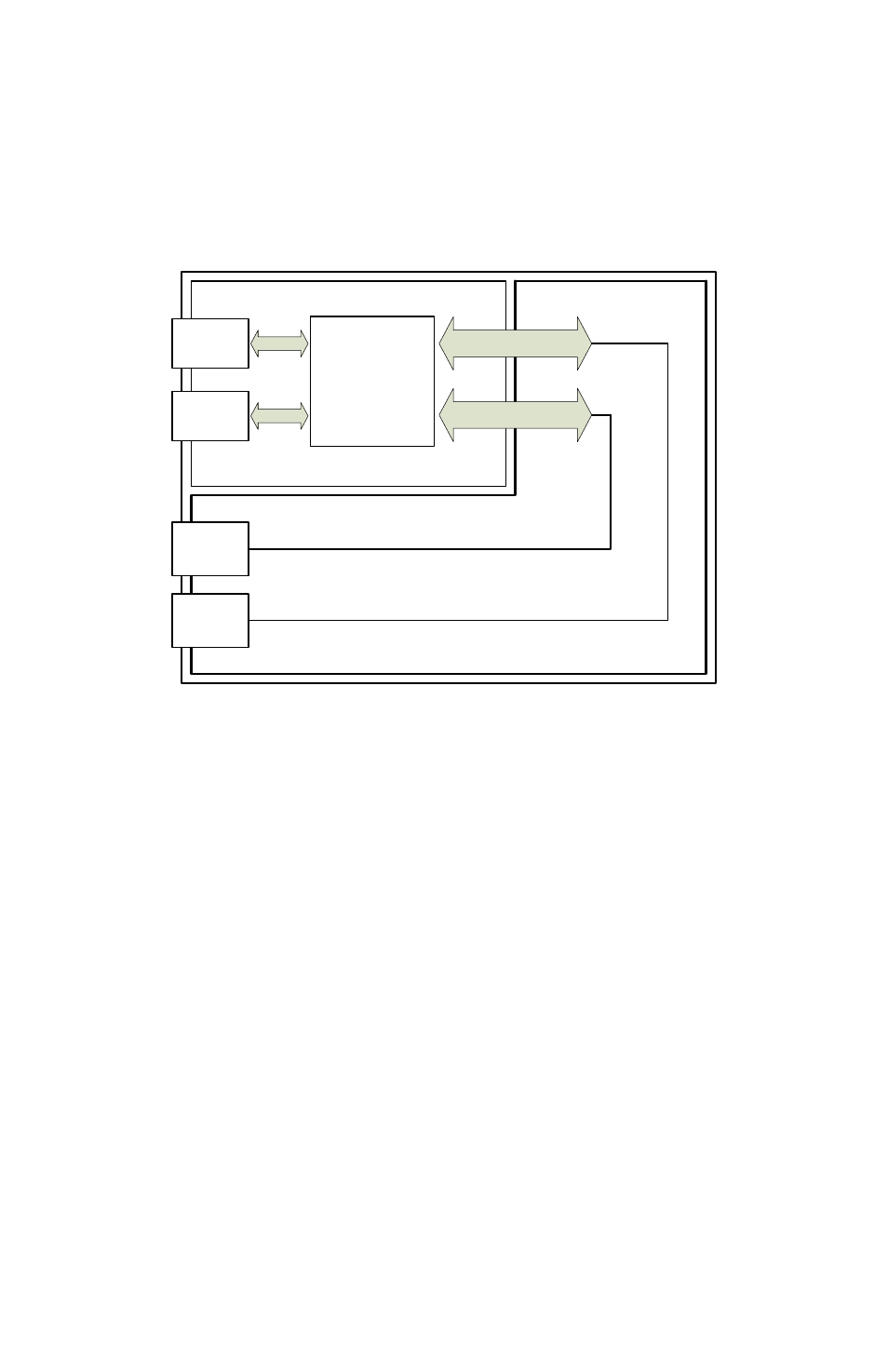

Figure 6: Backplane Connectivity
The data traversing across the Ethernet backplane can be controlled by
configuring the installed
iConverter
module. See the specific
iConverter
module’s
User Manual for additional details.
