3.2 CONFIGURING DIP-SWITCHES
PI SA
The GX/TM plug-in module has two board-mounted DIP-switches. The standalone unit has one bank of
DIP-switches. The locations of the DIP-switches are illustrated below.

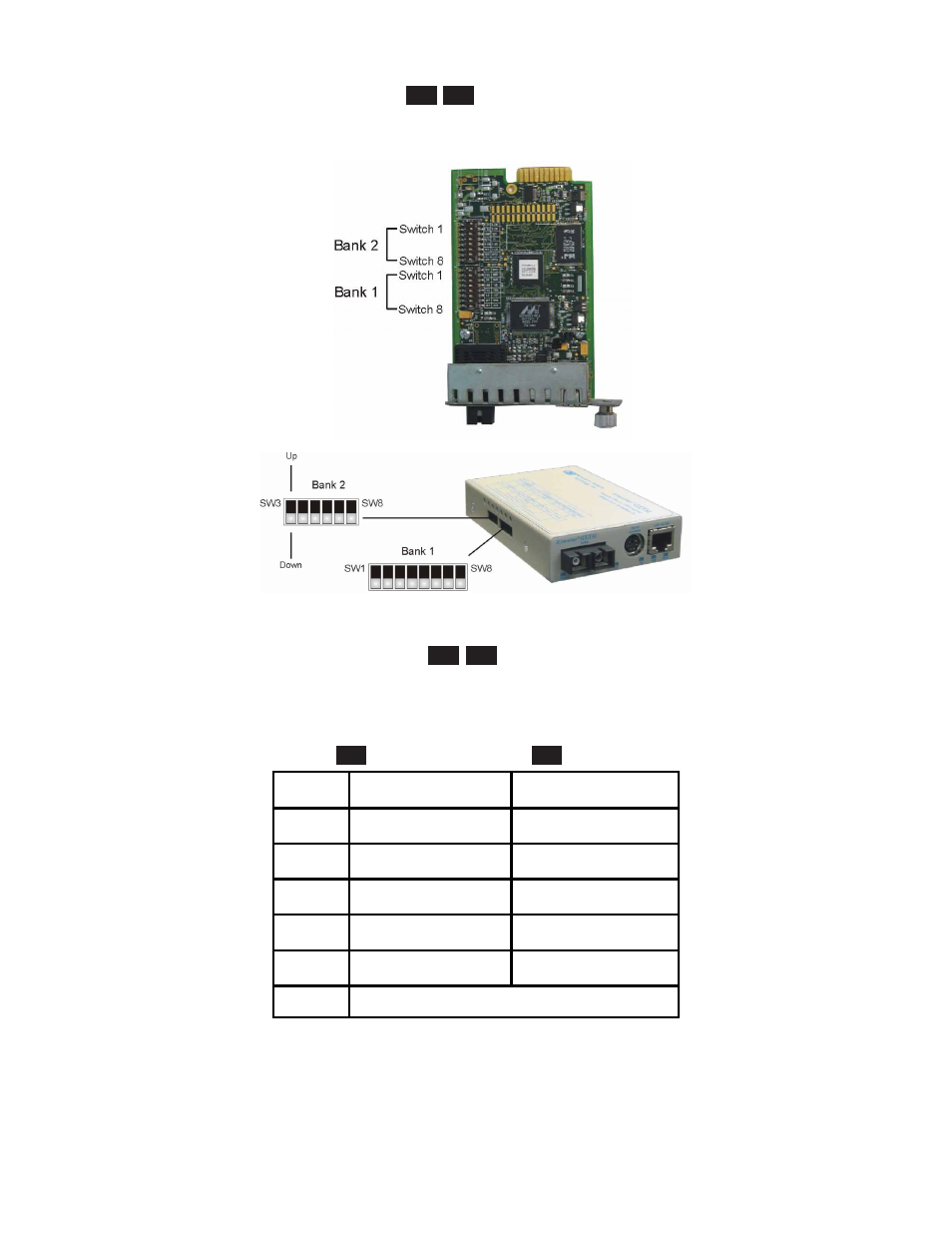

DIP-switch Locations
3.2.1 Board-Mounted Bank 1 Settings
PI SA
DIP-switch Bank 1 is available on both the plug-in and standalone modules. The table indicates the position
of the switch; Left/Down or Right/Up. As indicated in the DIP-switch location diagram, Left and Right
refers to the plug-in module and Down and Up refers to the standalone module.
PI
(Left/Right)
SA
(Up/Down)
Switch
Left/Down
(Factory Default)
Right/Up
SW1
AN:
Fiber Auto-Negotiation
Man:
Fiber Manual Negotiation
SW2
AN:
UTP Auto-Negotiate Man:
UTP Manual
SW3
1000:
UTP 1000Mbps 10-100:
UTP 10-100Mbps
SW4
100:
UTP 100Mbps 10:
UTP 10Mbps
SW5
FDX:
UTP Full-Duplex HDX:
UTP Half-Duplex
SW6 - SW8 See Link Mode DIP-Switch Table in Section 3.2.1.6
3.2.1.1 SW1 - Fiber Auto/Manual Negotiation “AN Man”
When this DIP-switch is in the Left/Down fiber optic Auto-Negotiate “AN” position (factory default), the
fiber optic port automatically determines the duplex and pause modes of the connecting fiber optic device.
If the connecting fiber optic device cannot provide the proper signal to indicate its own mode of operation,
the DIP-switch should be set to the Right/Up fiber optic Manual mode “Man” position.
Page 6
