MTS TestLine User Manual
Page 35

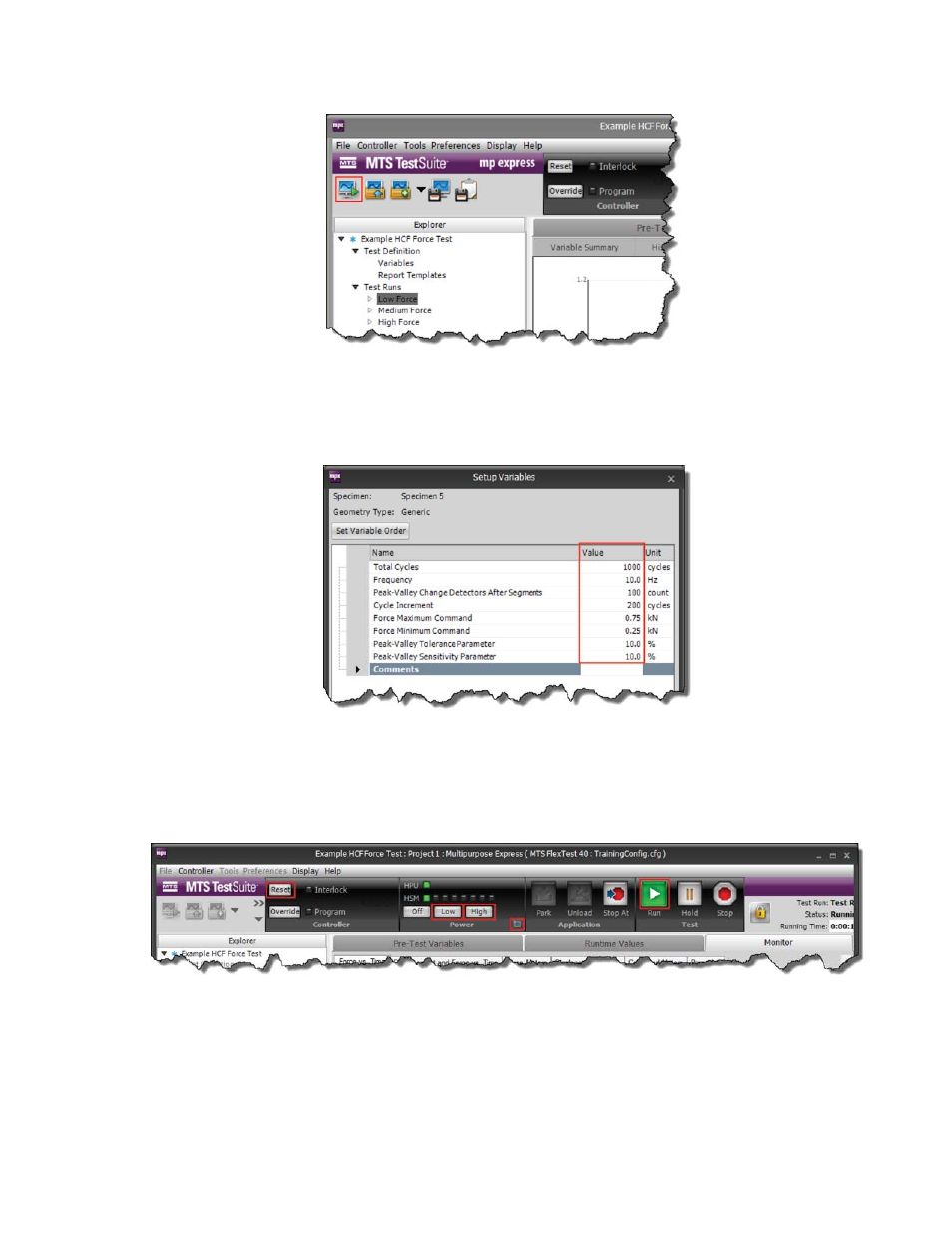

Setting Test Parameters
Once the test is selected, MTS TestSuite MPX provides you an opportunity to set test parameters via the
Setup Variables window.
Running a Test
Running a test involves clearing any interlock conditions, powering up the HPU and HSM if necessary,
and clicking the Run button. MTS TestSuite MP Express allows you to monitor the test using the tabs
found in the main window.
Generating a Report
When the test is complete, you can generate an Excel report based on one of the Excel templates stored
with the test.
MTS TestLine Test System Operation | 35
