MTS TestLine User Manual
Page 114

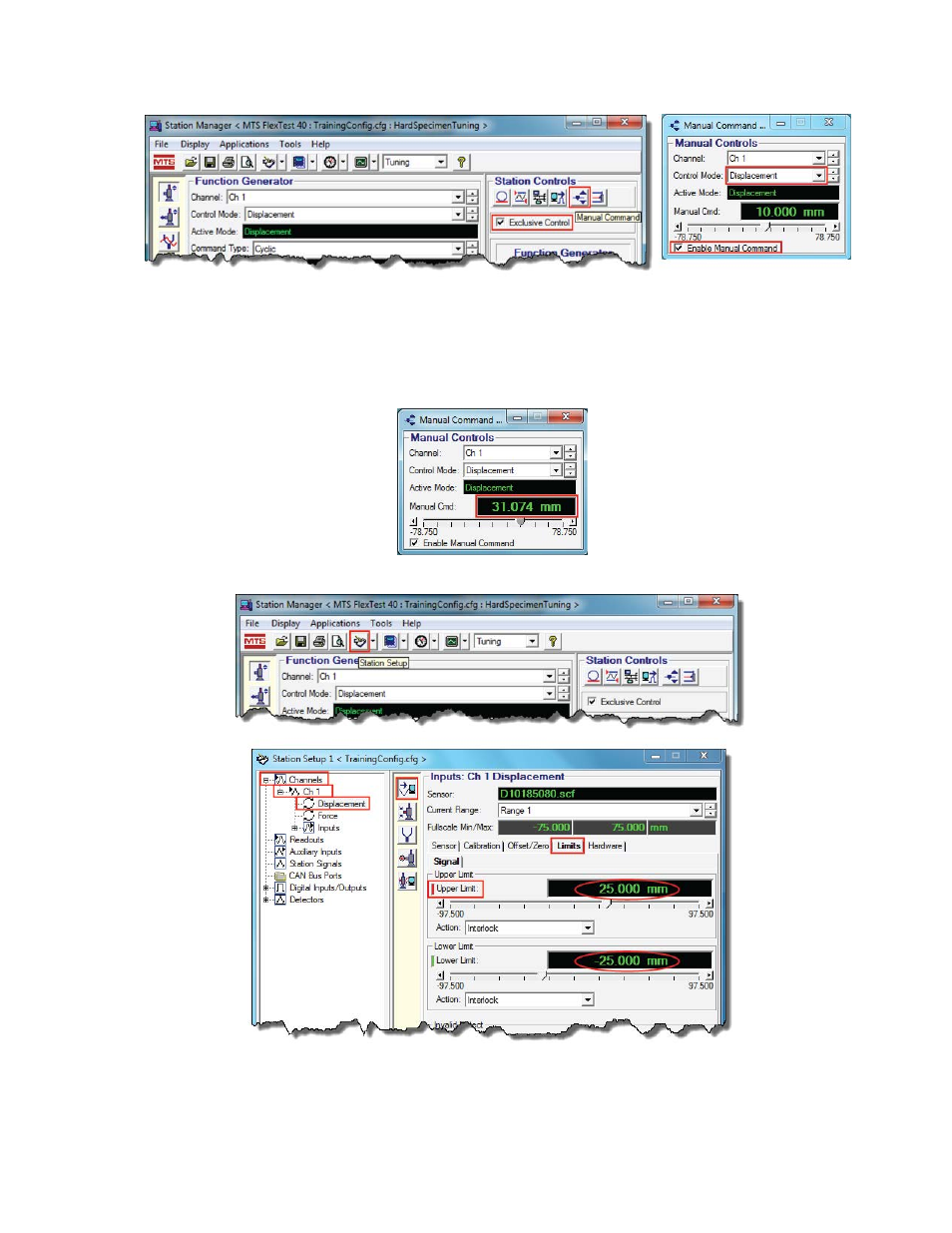

a) In the Station Manager application main window, click the Manual Command button.
b) Ensure that Exclusive Control is checked.
c) In the Manual Command window, select a Control Mode of Displacement.
d) Ensure that Enable Manual Command is checked.
2. Check the current position of the actuator.
3. Check current displacement limits.
a) In the Station Manager application main window, select Station Setup button > Channels > Ch1
> Displacement > Channel Input Signals button > Limits tab.
114 | MTS TestLine Test System Operation
