MTS TestLine User Manual
Page 28
•
Moving the actuator (for specimen installation)
•
Using the function generator
•
Setting tuning parameters
The Station Manager application windows associated with each task are shown below.

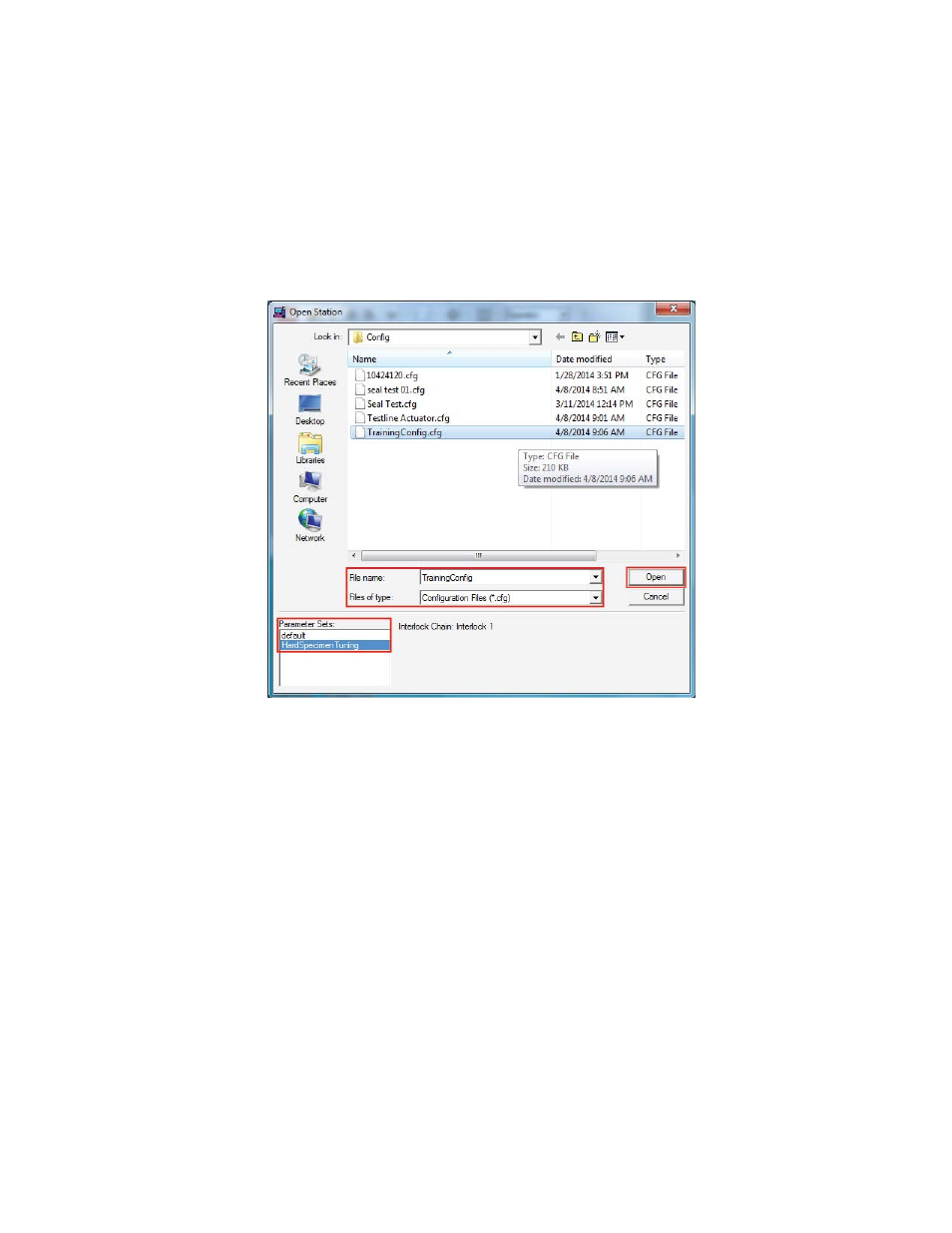

Opening a Station
In the Open Station window, you can select a configuration and a parameter set. You can also select an
interlock chain, although it is common practice to select Interlock 1.
Using the Main Window to Open Other Windows
While the main window provides access to nearly all of the Station Manager application's functionality, the
Example HCF Test and most other tests require only limited interaction with the main screen. Common
access points to other windows used in the Example HCF Force Test are boxed in red.
28 | MTS TestLine Test System Operation
