MTS TestLine User Manual
Page 115
b) Check the current upper and lower limit settings to identify the acceptable range for the actuator.
Adjust the limits if incorrect. If correct, continue to the next step.
c) Notice, that in this example, the upper limit is red. This indicates that the upper limit has tripped.
d) For this example, the limits are correct. Proceed to the next step.
4. Reset/Override the interlock.

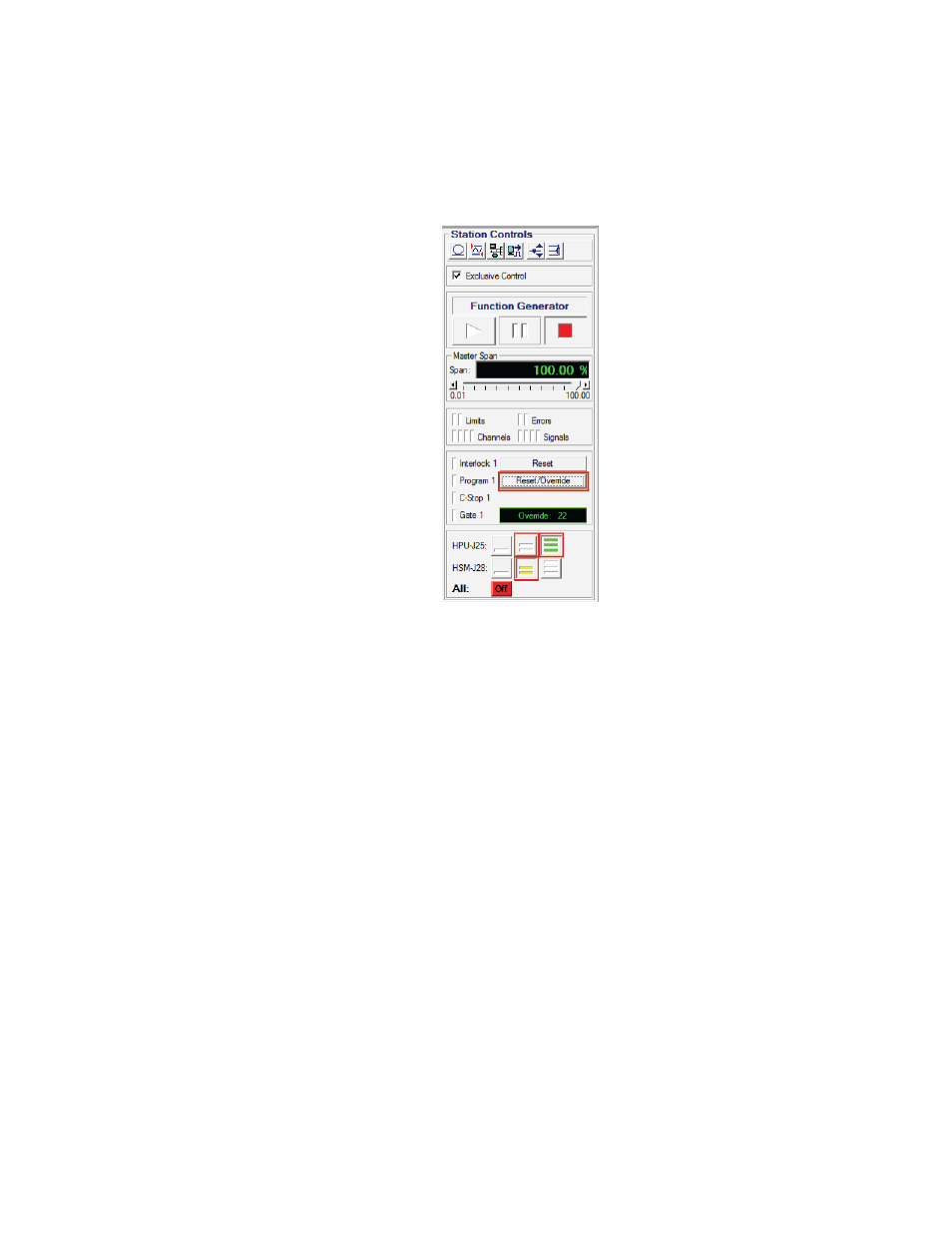

In the Station Manager application main window, click the Reset/Override button three times to override
the interlock for 22 seconds, and then power up the HPU and HSM.
5. Move the actuator to within the current displacement limits.
MTS TestLine Test System Operation | 115
Running the Example HCF Test
