MTS SWIFT 10 ATV Sensor User Manual
Page 78
SWIFT 10 ATV Sensors
78
Road and Track Vehicles
Installing the Transducer
2. Rotate the tire one full revolution so that the encoder can find the zero index
mark.
Note
The encoder has a red dot on the mounting flange connected to the slip-
ring bracket and a black dot on the slip-ring connector housing where it
interfaces with the mounting flange. These dots, when aligned next to
each other, indicate the index mark is under the encoder sensor.
3. Rotate the tire, as necessary, until the Fz on the axes icon (see the next
figure) printed on the transducer label is pointing up.
4. If not already assembled, attach the inclinometer to the level bracket using
the two 6-32 UNC fasteners provided.
Apply Locktite 222 to the threads on the fasteners. Torque each fastener to 2
N•m (18 lbf•in).

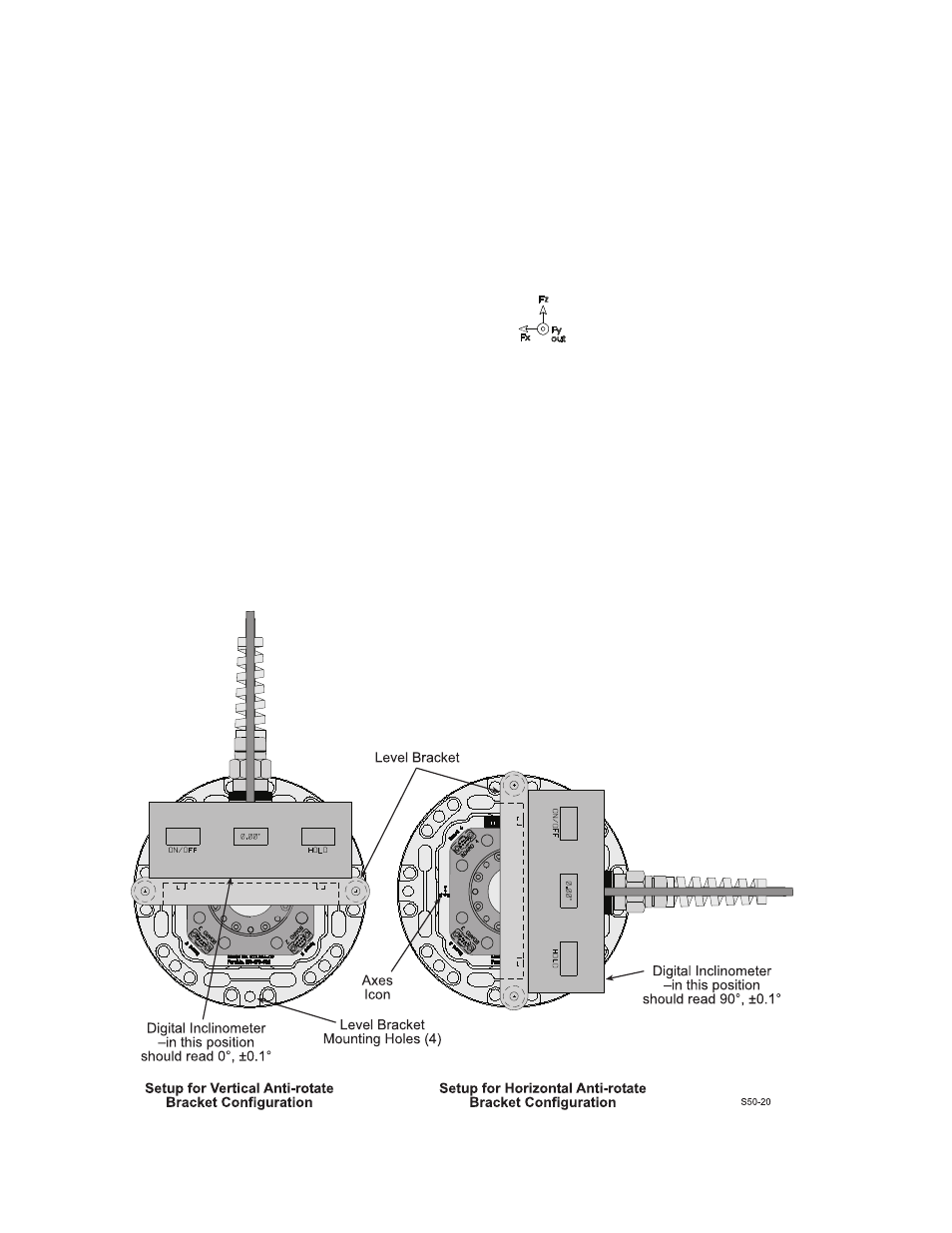

5. Install the inclinometer/level bracket assembly on the transducer by
inserting the dowel pins in the level bracket into the pin pilot holes provided
in the transducer, as shown in the next figure.
The orientation of the inclinometer/level bracket assembly is determined by
the orientation of the anti-rotate bracket.
Axes Icon
S20-22
