MK Diamond Scarifier - Manual (Page 57)

57

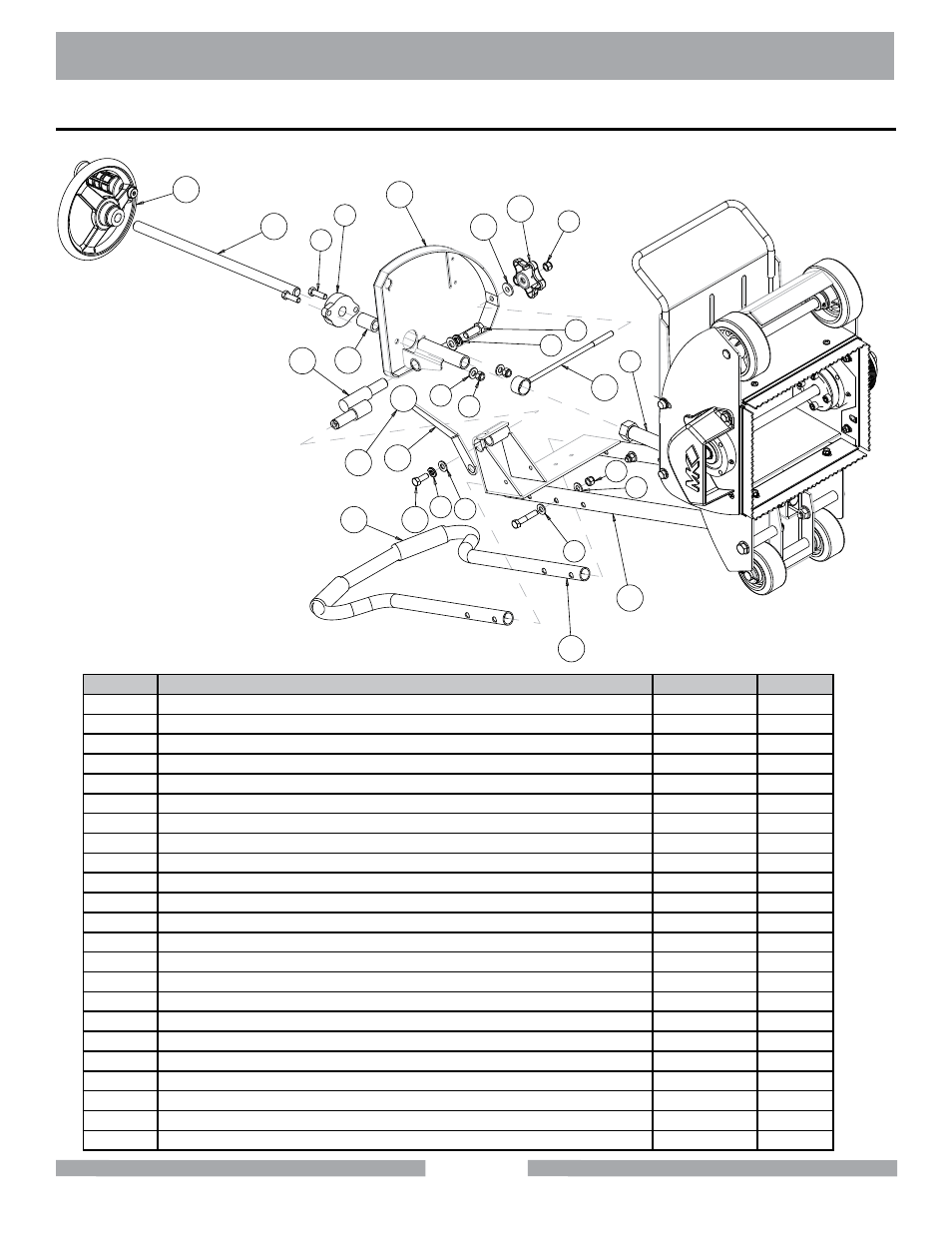

MK-Scarifier eXPLODeD VieW
1
2 3
5
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
4
4
4
2
2
iTeM DeScriPTiON ParT# QTY.
1 SCREW, 3/8 - 16 X 1 - 1/4 HEX HEAD CAP 150774 6
2 WASHER, FLAT, SAE 3/8 150923 25
3 WASHER, LOCK, SPLIT, 3/8 150925 15
4 NUT, HEX, NYLK, 3/8 - 16 152505 8
5 WASHER, 1/2 SPLIT LOCK 152524 1
6 SCREW, 1/2 - 13 X 1 - 1/4 HEX HEAD CAP 153532 1
7 NUT, 1/2 - 13 HEX 153943 2
8 LINKAGE, DEPTH FEED 1600/9000 155049 1
9 BEARING, FHSLF 204 - 12G FLANGE 155151 1
10 SPACER, DEPTH CONTROL 155161 1
11 WASHER, THRUST 155238 1
12 ASSY, CRANK WHEEL, 3/4 - 10 155457 1
13 KNOB, AD, 5 PRONG COMP 155845 1
14 SCREW, HEX HD, 3/8 - 24 X 1 157803 9
15 LOCK, DEPTH CONTROL, 8-7/8 157846 1
16 WELDMENT, MAIN FRAME 158098 1
17 WELDMENT, CONSOLE 158100 1
18 LEVER, ENGAGEMENT 158102 1
19 PIVOT BAR, ENGAGEMENT 158288 1
20 HANDLEBAR 158359 1
21 KNOB, BALL, 2”, 3/8 - 16 INSERT 158519 1
22 STUD, 3/4 - 10 X 17” 158521 1
23 GRIP, HANDLE 229413 2
MK Sg-ii LeSS eNgiNe ParT # 170578
