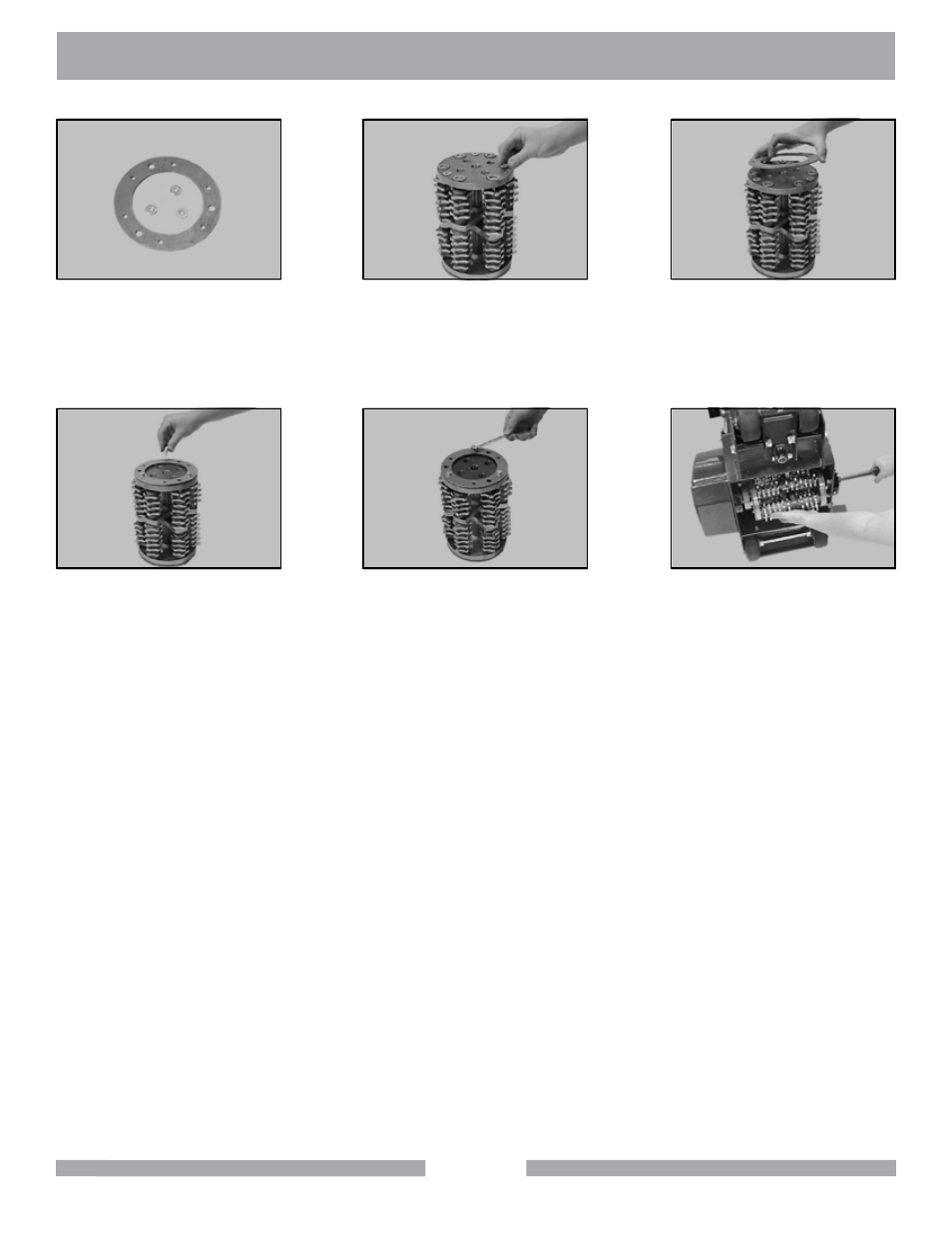

Obtain the Retaining Ring
and Flat Washer Spacers.
(K)
Install the 3 Flat Washer
Spacers (if used) over the
3 Retaining Ring, Retaining
Screw holes.
(L)
Place the Retaining Ring
onto the end of the Cutting
Drum, aligning the Retaining
Screw Holes.
(M)
Install the 3 Retaining Screws
into the Cutting Drum (do not
cross-thread the screws).
(N)
Tighten the 3 Retaining
Screws using a 7/16-inch
wrench.
(O)
Install the Cutting Drum
(See Cutting Drum Change-
out).
