Mk-scarifier assembly – MK Diamond Scarifier User Manual

Page 23

background image

23

MK-Scarifier aSSeMBLY

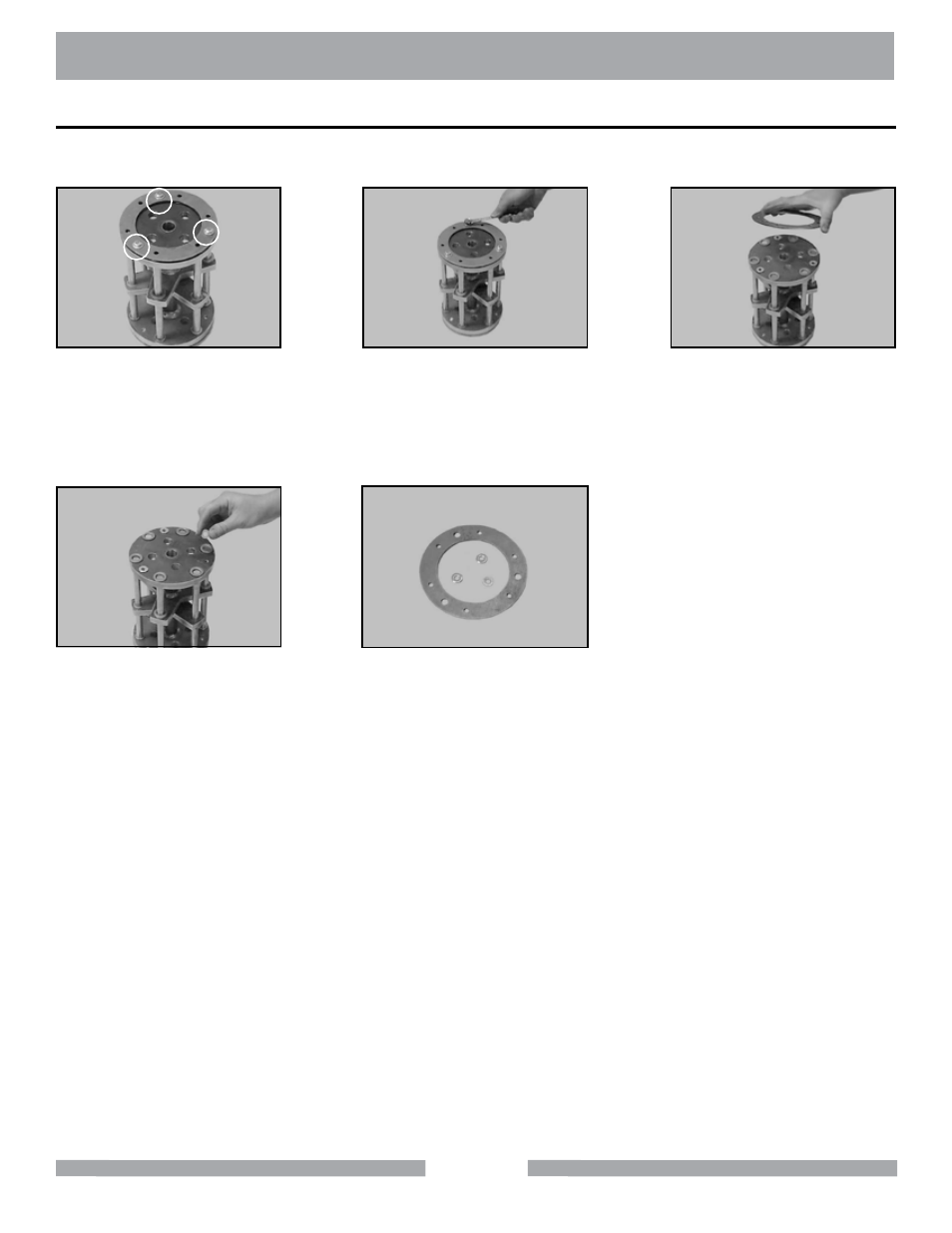

cUTTiNg DrUM DiSaSSeMBLY

(A)

Rotate the Cutting Drum onto

either end and locate the

Retaining Ring, Retaining

Screws.

(B)

Remove the 3 Retaining

Screws using a 7/16-inch

wrench.

(C)

Remove the Drum Retaining

Ring.

The Cutting Drum may be disassembled from either end.

NOTe:

(D)

If present, remove the three

Flat Washer Spacers.

(E)

Place the Retaining Ring and

Flat Washer Spacers in a

secure location.
