MK-Scarifier MaiNTeNaNce

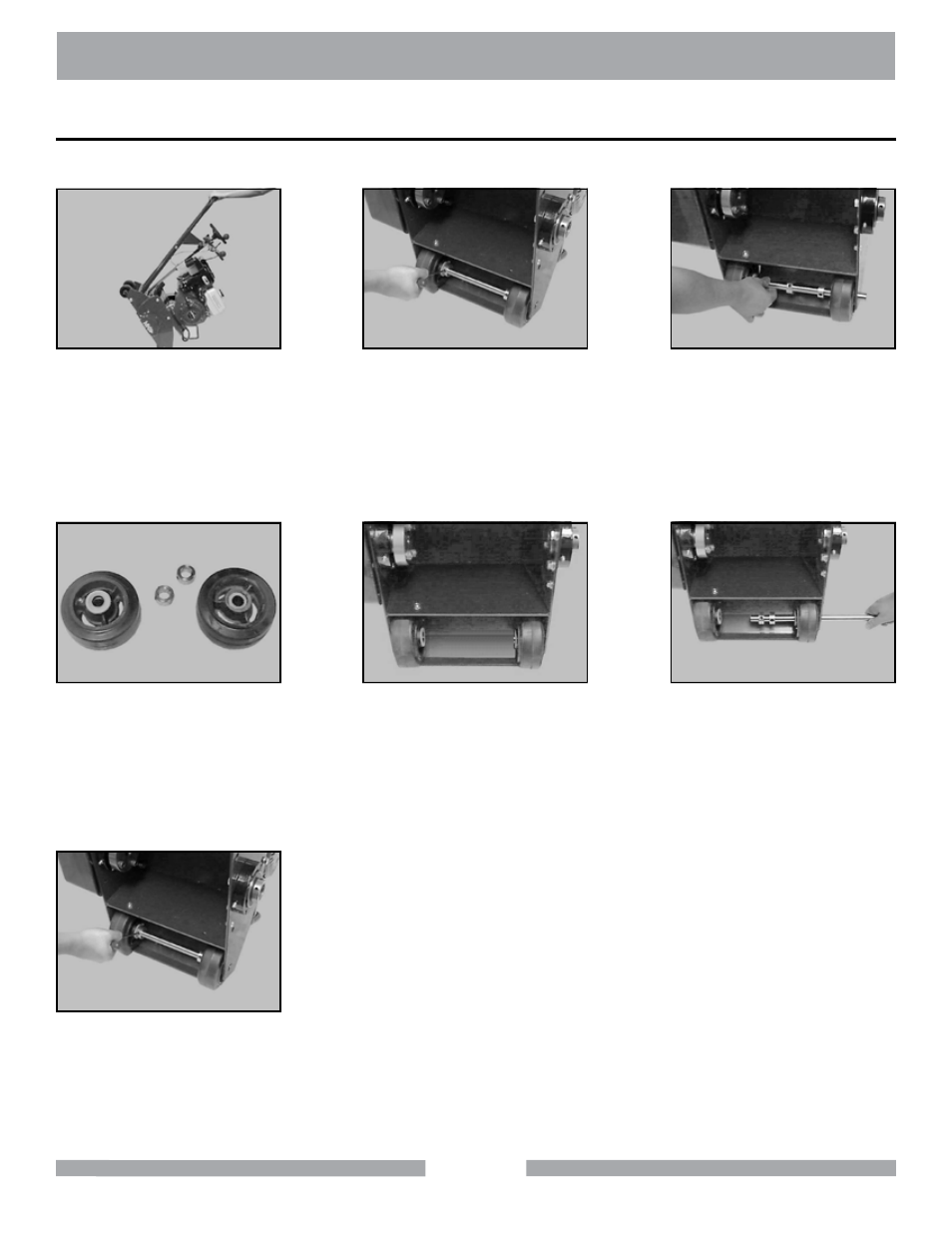

front Wheel change Out
NOTe: The two (2) Front Wheels should be replaced at the same time (MK Diamond Part # 138529).
(A)
Rotate the Scarifier to rest on
the Handle/Stand.
(B)
Loosen the Retaining Collar
of each Wheel using a 5/32-
inch Allen Wrench.
(C)
Move the Retaining Collars
toward the center of the Axle
and then slide the Axle out of
the Scarifier.
(D)
Obtain 2 replacement Wheels
and remove the Dust Cover
from one side of each Wheel.
(E)
Seat the Front Wheels into
the Wheel-well with the Dust
Cover side
facing inward.
(F)
Slide the Axle through one
Wheel, Install the 2 Retain-
ing Collars and then slide
the Axle through the second
Wheel.
(G)
Push the Retaining Collars
against the Front Wheels
and then tighten them with a
5/32-inch Allen Wrench.
