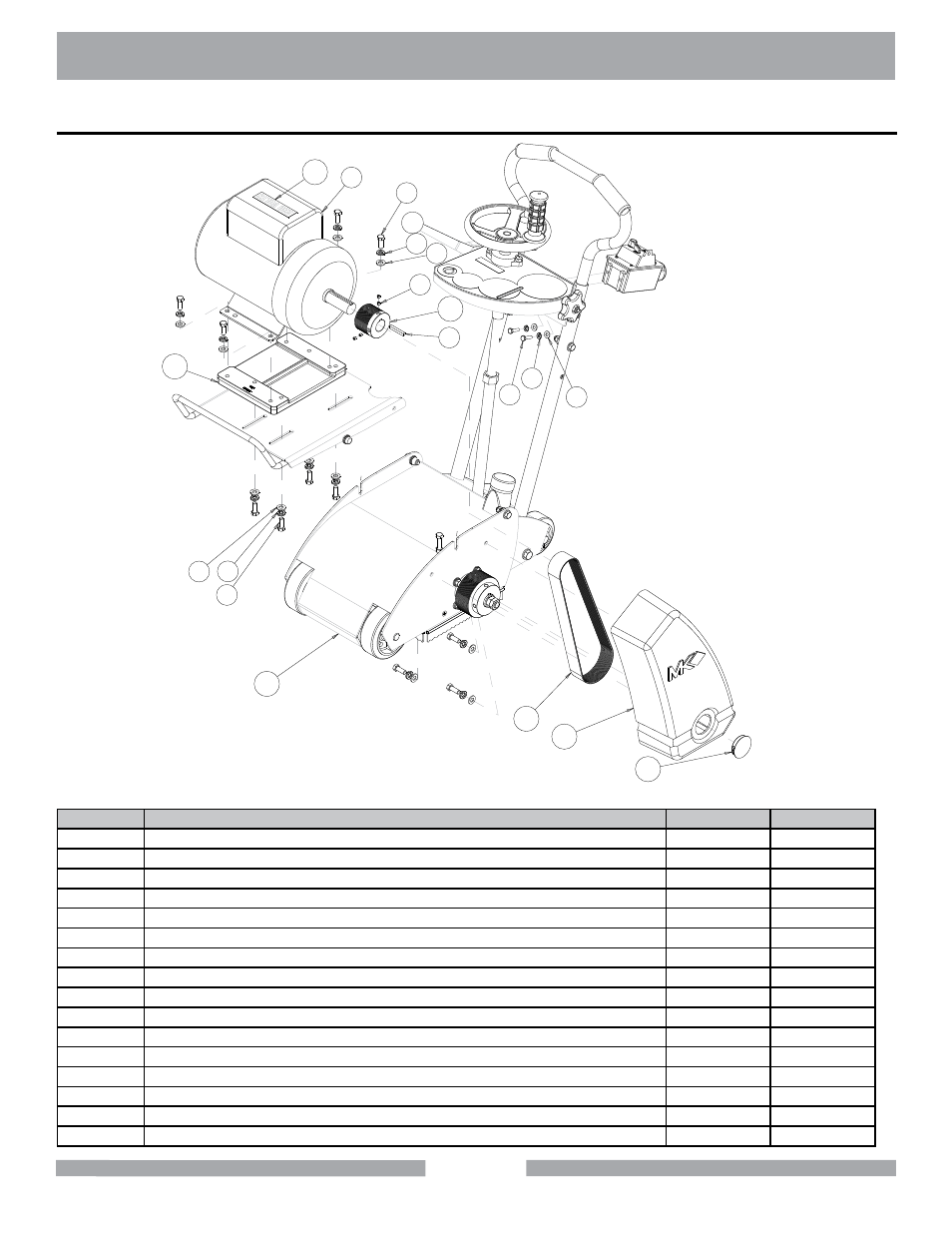

MK-Scarifier eXPLODeD VieW
1
2 3
4
5
6
7
8
9
10
11
12
13
14
15
16
5
3
2
iTeM DeScriPTiON ParT# QTY.
1 KEY, 1/4 SQR X 1 - 3/4 150796 1
2 WASHER, FLAT, SAE, 3/8 150923 11
3 WASHER, LOCK, SPLIT, 3.8 150925 11
4 WASHER, FLAT, SAE, 1/4 151915 2
5 SCREW, HEX HD CAP, 3.8 - 16 X 1 152507 11
6 WASHER, LOCK, SPLIT, 1/4 152591 2
7 SCREW, 5/16 - 18 X 1/2 SOCKET HEAD SET 152607 4
8 SCREW, HEX HD, TAP, 1/4 - 20 X 1 152676 2
9 MTR, 5PH 230V 1PH 50PZ 152759 1
10 PLATE, MOTOR MOUNT (COMP) 155824 1
11 GUARD, BELT (COMP) 158104 1
12 BELT, 16J350 158469 1
13 PLUG, 2” DIA, REMOVABLE 158538 1
14 PULLEY, 16J25 X 1 - 1/8 BORE 160411 1
15 LABEL, 230V 168652 1
16 MK-SG-II LESS ENGINE 170578 1
MK Sg-5PH 220 V NO DrUM ParT # 170573
