MK-Scarifier MaiNTeNaNce
DO NOT Rotate saw to rest on handlebar. Engine damage will result.
engine air filter inspection cleaning and replacement
Refer to Engine Manual.
NOTe:
Disconnect the tool before servicing and when changing accessories, such as
blades, bits, cutters, and the like.
(A)
Remove the Shaft Cover,
Rear Retaining Bolt and
loosen the Front Retaining
Bolt using 9/16 wrenches
and/or sockets.
(B)
Remove the Shaft, Retain-
ing Nut Cover from the Belt
Guard to expose the Shaft,
Retaining Nuts.
(C)
Using a 15/16-inch socket,
loosen the Outer Shaft, Re-
taining Nut. Retaining Nuts are
left hand threaded.
(D)
Place an Index Finger on the
end of the Cutting Drum, Shaft.
(E)
Remove the Outer Shaft, Re-
taining Nut using your Middle
Finger as shown.
(F)
Repeat Step C through E for
the Inner Shaft, Retaining Nut.
WarNiNg

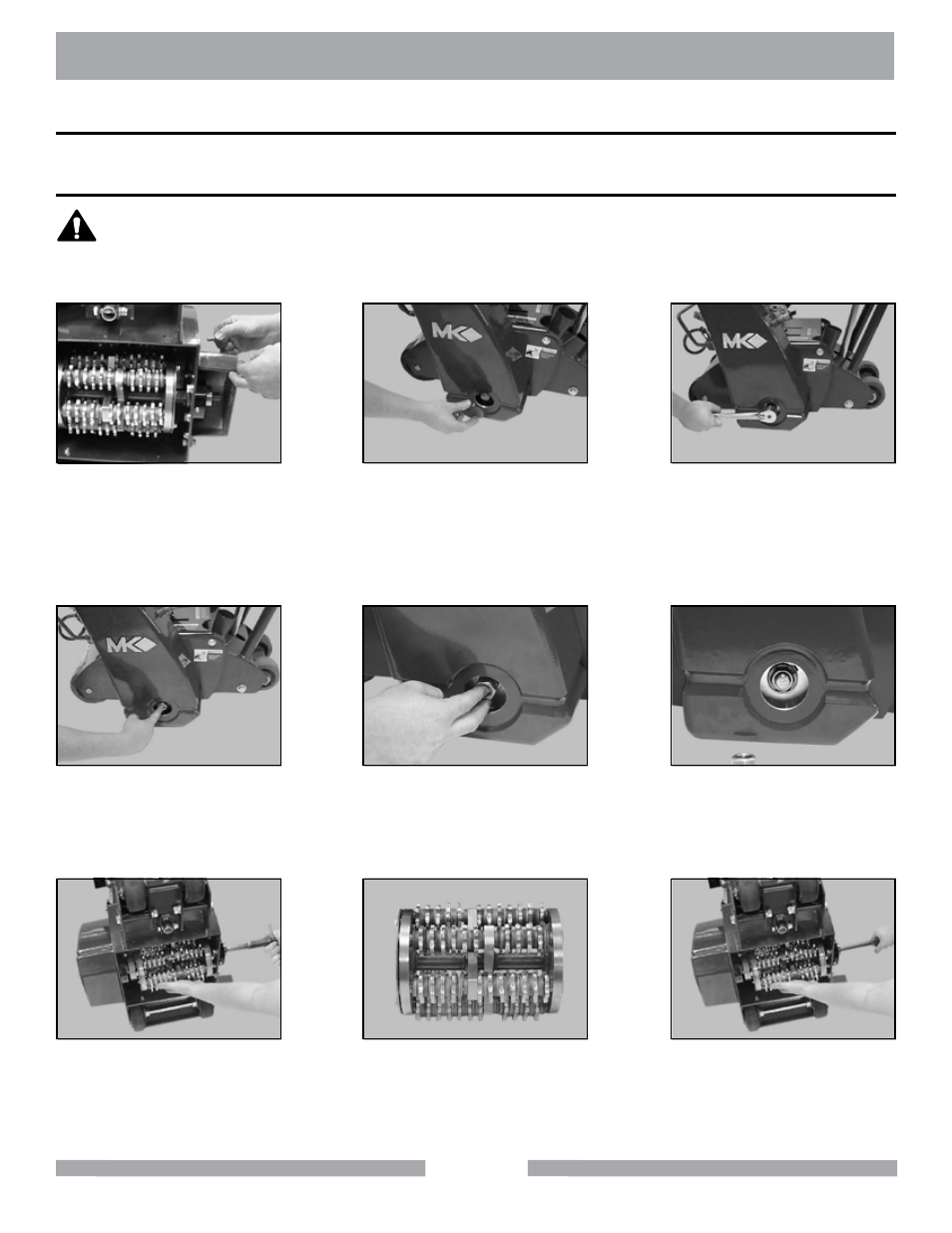

cutting Drum change-out
(G)
Remove the Cutting
Drum and Shaft.
(H)
Reconfigure the Cutting
Drum as needed.
(I)
Install the Cutting Drum into the
Scarifier; align the Cutting Drum
with the Shaft-side Bearing and
install the Cutting Drum, Shaft.
