MK Diamond MK-101Pro24 JCS User Manual

Page 51

background image

51

Item

Description

Part#

Qty

1

WASHER, #10 SAE FLAT

154369

1

2

SCREW, PAN HD PHIL 6 - 32 x 5/8

157393

4

3

WASHER #10, INTERNAL TEETH

158336

2

4

BUSHING, SWITCH, 30 AMP

158799

1

5

BOx, 30A SWITCH (COMP)

159487

1

6

SWITCH, 30 AMP MOTOR CONTROLLER

159488

1

7

PLATE, MOUNTING, SWITCH

159489

2

8

LEVER, ON/OFF, 30 AMP SWITCH

159490

1

9

GASKET, COVER, 30 AMP SWITCH

159491

1

10

SEAL, LEVER, 30 AMP SWITCH

159492

1

11

SCREW, FLAT HD PHIL 6 - 32 x 5/16

159493

6

12

SCREW, PAN HD PHIL 10 24 x 5/16

159494

1

13

COVER, 30A SWITCH (COMP)

159539

1

14

LEVER, ACTUATOR (COMP)

159539

1

15

STRAIN RELIEF, HEYCO 3213

159582

1

16

SCREW, HEx HD FL 10 24x 5/16

159597

1

Switch Box

Part # 161101

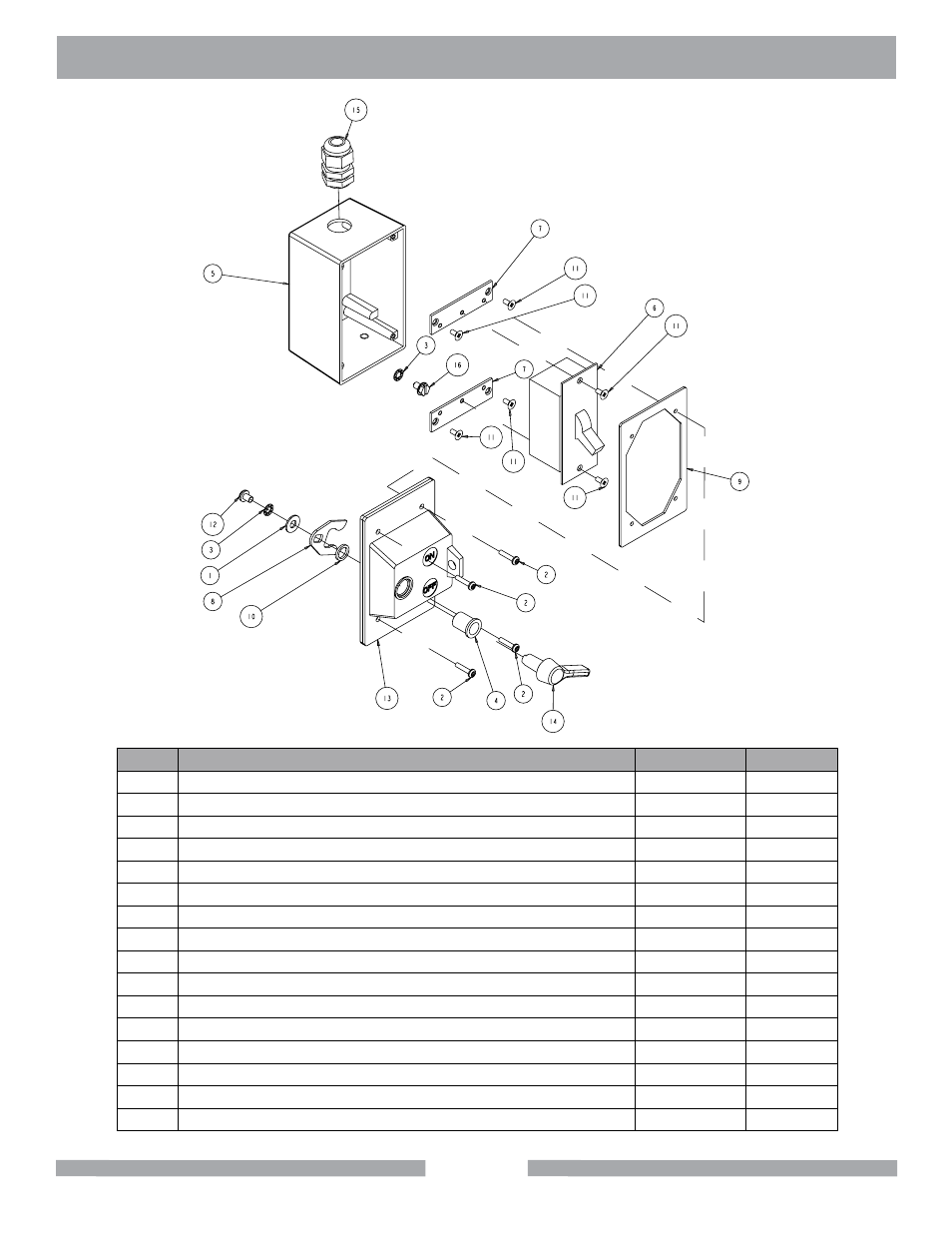

MK-101 Pro24 JCS EXPLODED VIEW & PARTS LIST
