MK-101 Pro24 JCS ADJUSTMENT

Adjusting the Cutting Head

For larger tiles and maximum cutting length, the cutting head should be in the

front pivot hole.

For small tiles (6" tile or smaller) The cutting Head

should be in the rear pivot hole and the Post should be in

the forward post retaining hole. For large tiles and maxi-

mum cutting length, the Cutting Head should be in the

front pivot hole and the Post should be in the rear post

retaining hole.

Move Cutting Head Stop in upward position when using

rear pivot hole and in the down position when using front

pivot hole.

CAUTION

The Cutting Head is heavy! Care must be used when changing the position of the

Cutting Head.

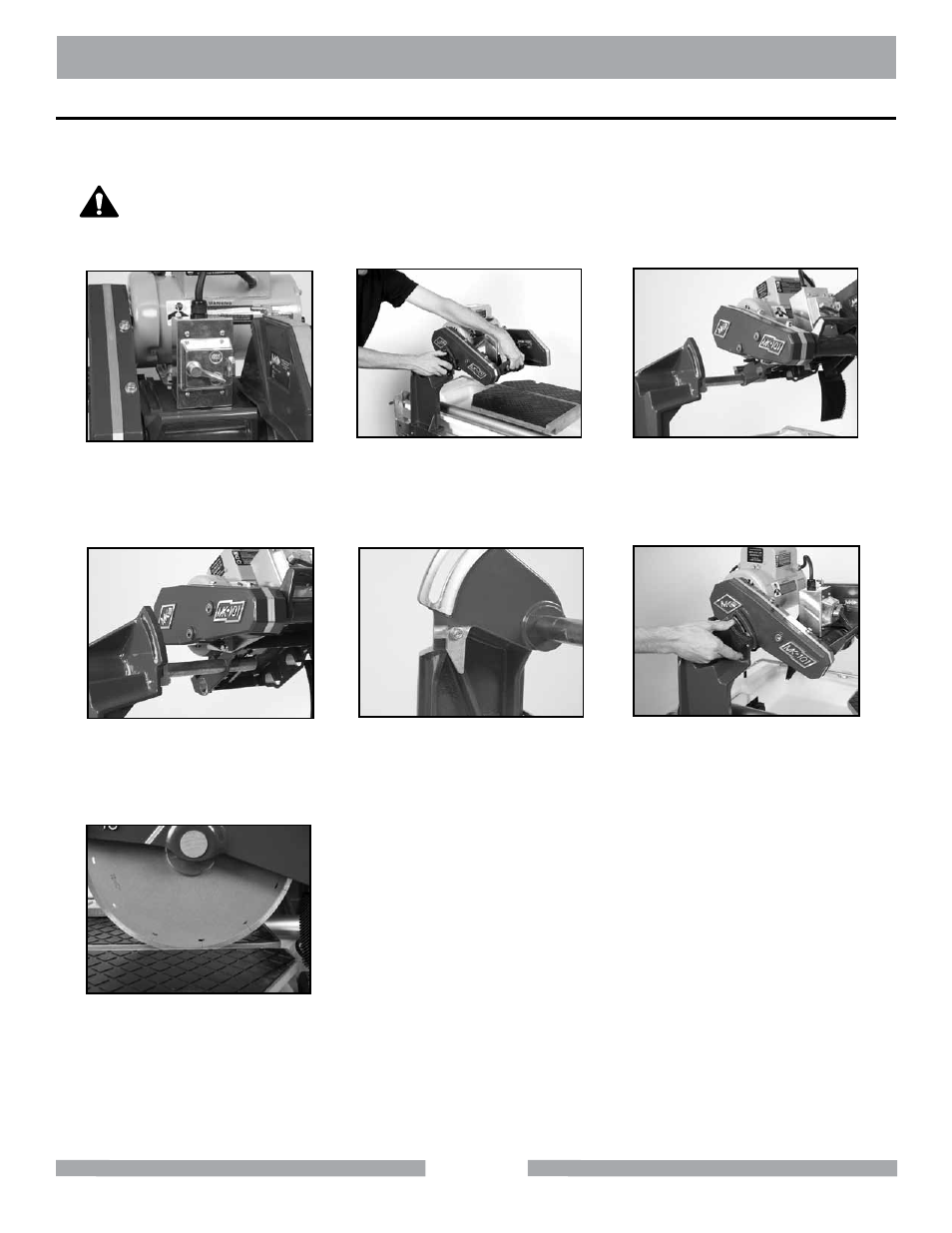

NOTE:

(A)

Ensure the ON/OFF Switch

is in the OFF position. Unplug

the GFCI from the power source.

(B)

Remove the Blade.

Remove Adjusting Knob.

(C)

Remove the Cutting Head from

the rear pivot hole.

(D)

Install the Cutting Head onto

the front pivot hole.

(E)

Move Cutting Head Stop to

Down Position.

(F)

Install the Adjusting Knob.

(G)

Set cutting depth approximately

1/4 to 1/2 inch below the

surface of the Movable

Cutting Table.
