24
MK-101 Pro24 JCS OPERATION
VOLTAGE: 120v
CYCLE: 60hz
PHASE: 1-phase
CAUTION
MK-101 PRO Series Setup for Operation
Portable Generator
1. Before powering or starting, check for damage that could prevent this equipment
from proper operation or performing it’s intended function. Check for binding and
alignment of moving parts. Check for damaged, broken, or missing parts.
2. Verify the On/Off switch is in the OFF position.
3. Before connecting the MK-101 to a power supply, be sure the voltage, cycle and
phase of the job site power source meet these requirements;
NOTE: In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
4. I f using an extension power cord, make sure, the length and wire gauge corre-
spond to the requirements listed in on page 10. An extension power cord that is
too small in wire gauge (diameter), or too long in length, will cause the motor to
overheat and could cause premature failure.
5. Use an approved Ground Fault Circuit Interrupter (GFCI)
6. Do not cover the motor vents as this could lead to motor overheating.
If using a portable generator, ensure the generator meets the following minimum requirements:
5 KW 120/240 volts 41.7/20.8 amps Single Phase

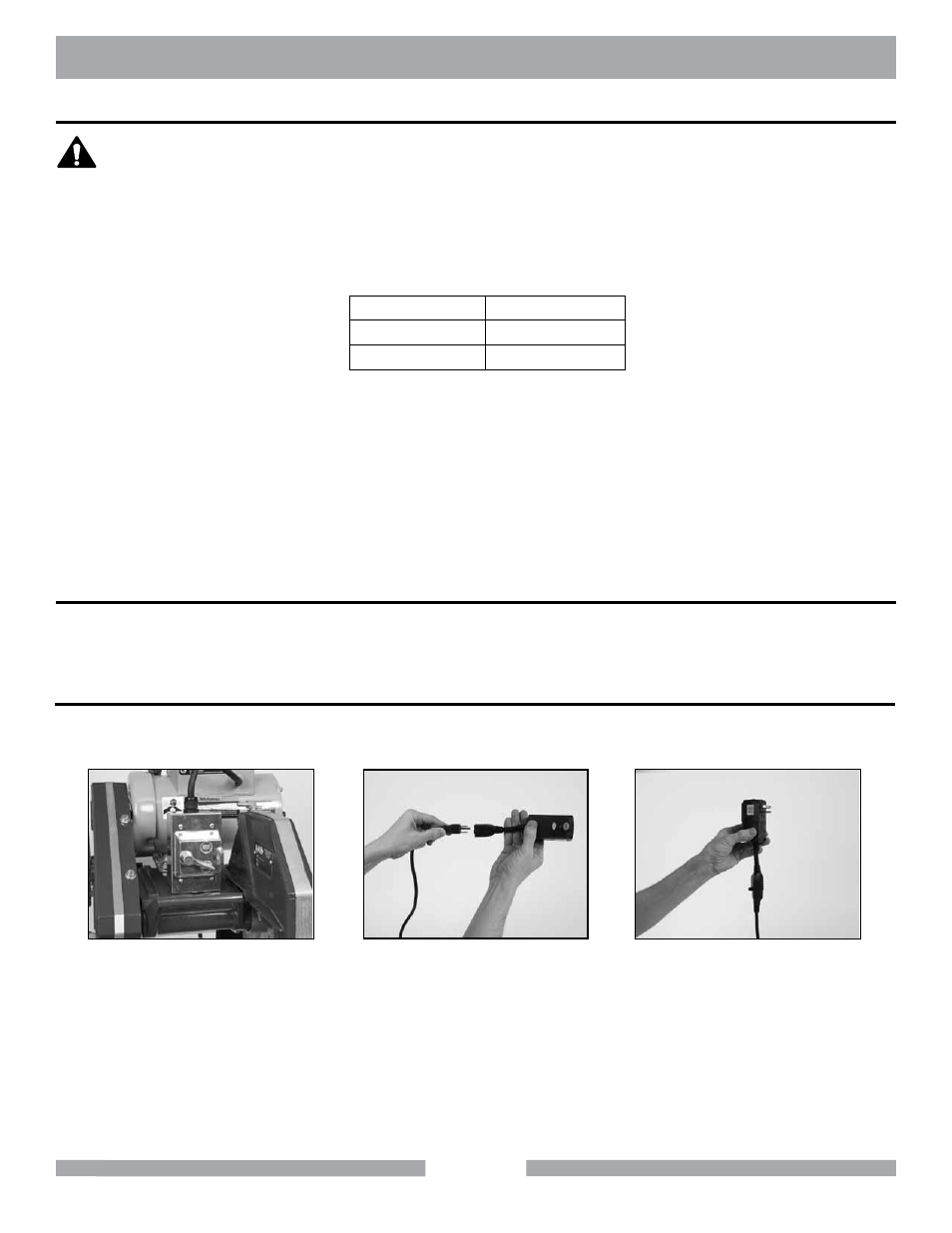

(A)
Ensure the ON/OFF Switch
is in the OFF position.
(B)
Plug MK-101 into the GFCI.
(C)
Plug the GFCI into the
power source.
This saw is to be used with a Ground Fault Circuit Interrupter.
GROUND FAULT CIRCUIT INTERRUPTER (GFCI)
