MK Diamond MK-101Pro24 JCS - Manual (Page 49)

49
Item Description PART # QTY.
1 KEY, 3/16 SQ x 1 - 1/8 150344 1
2 WASHER, FLAT, SAE, 1/4 151915 6
3 SCREW, HEx HD, 1/4 - 20 x 3/4 152370 5
4 ASSY, BLADE GUARD, 101 152582 1
5 WASHER, LOCK, SPLIT, 1/4 152591 6
6 SCREW, HEx HD, TAP, 1/4 - 20 x 1 152676 1
7 SCREW, 5/16 - 18 x 3/8 SOCKET HEAD SET 157083 1
8 ASSY, SUB, CTTG HEAD MK-101 158191 1
9 BELT, 6J260 158194 1
10 PULLEY, 6J19 x 5.8 BORE 158199 1
11 CASTING, 101 BLET GUARD - COMP 158319-01 1
12 BRACKET, INNER BELTGUARD 158611 1
13 ASSY, MTR, 1-1/2 HP 120V 60Hz 160486 1
MK-101 Pro24
Part # 158478
2
3
5
6
8
9
11
12
13
2
2
2
3
3
5
5
5
1
4
7
10
INCLUDED WITH ITEM 8
INCLUDED WITH ITEM 8

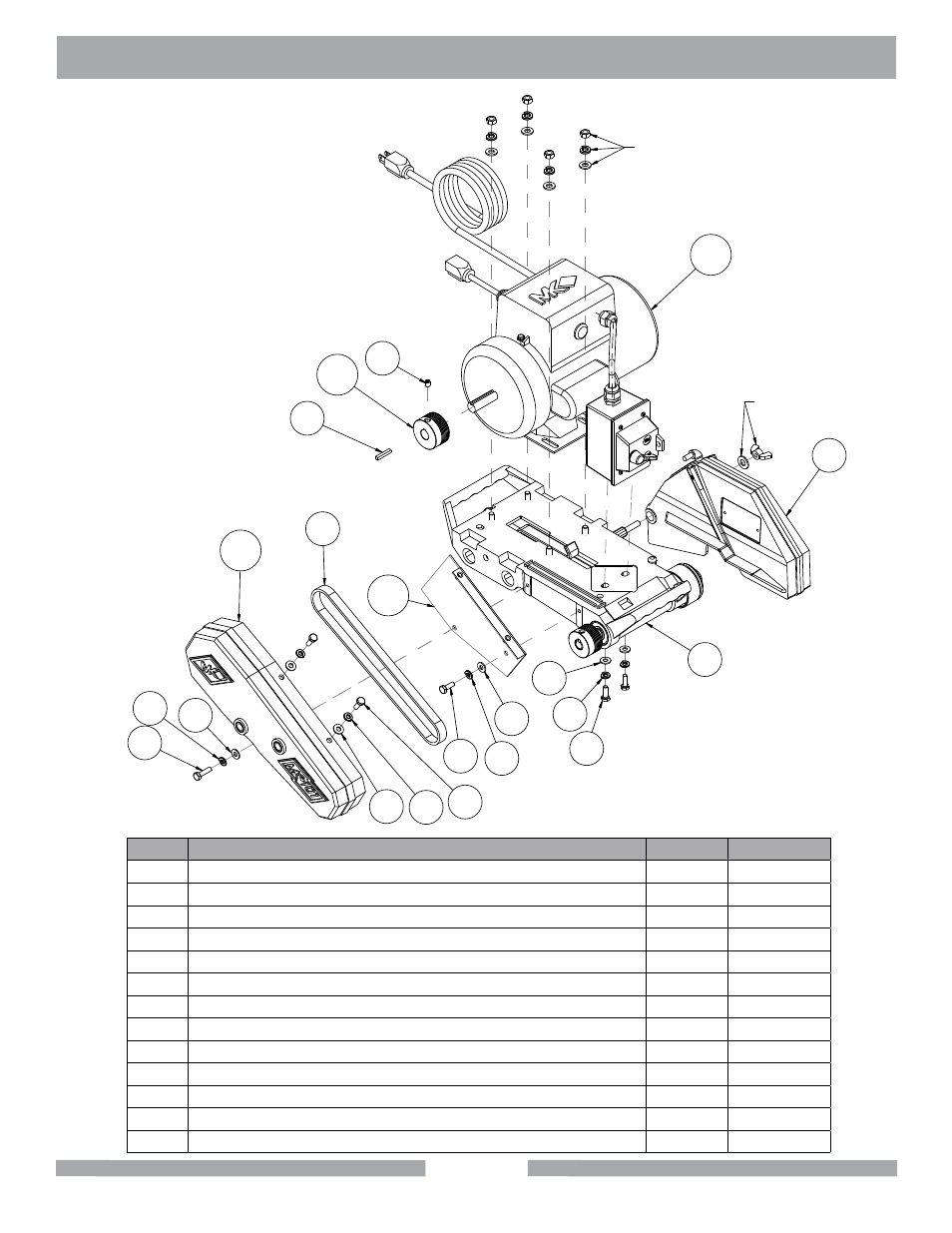

MK-101 Pro24 JCS EXPLODED VIEW & PARTS LIST
