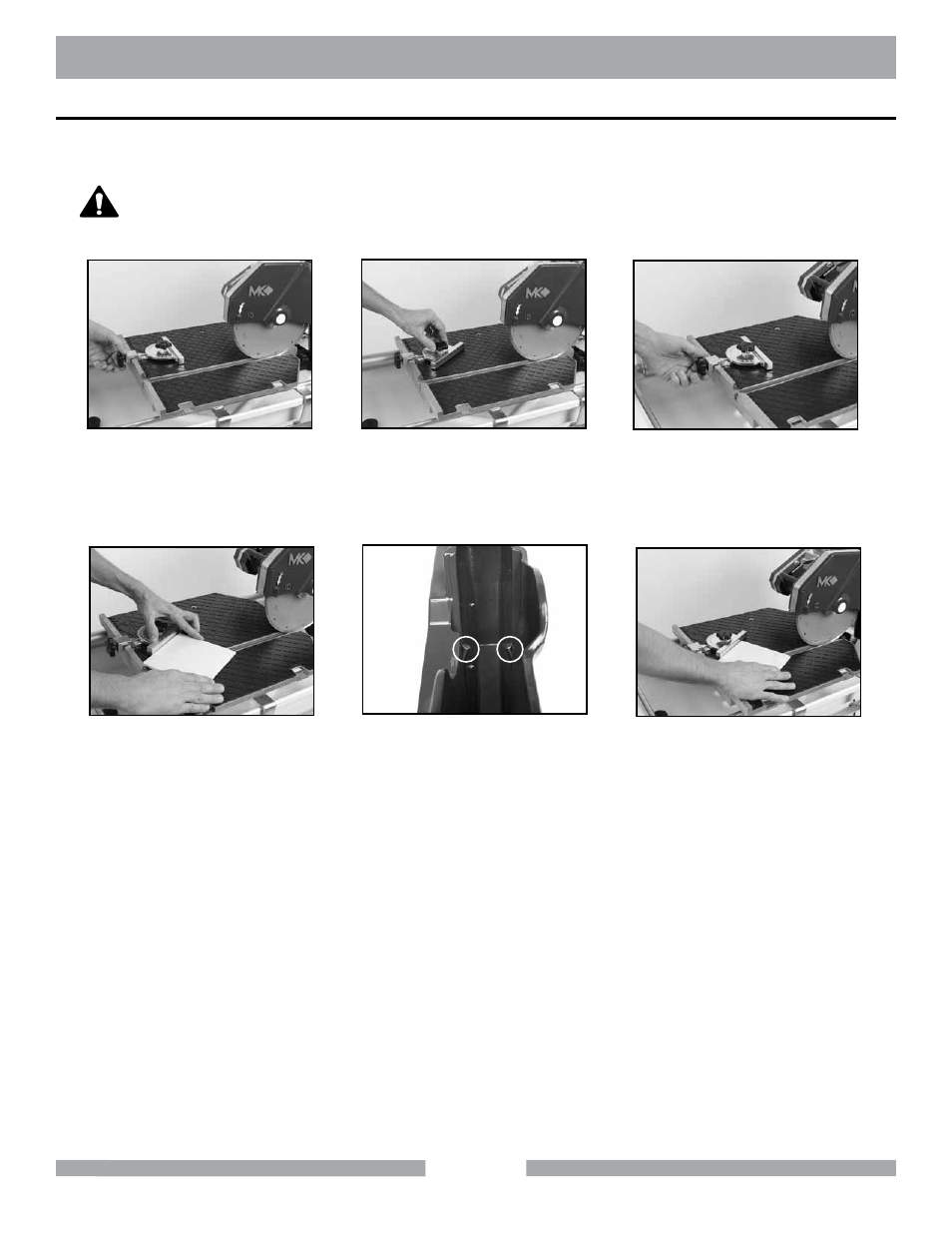

MK-101 Pro24 JCS OPERATION

Off-angle Cutting

To cut angles other than 45º angles or Miters, a 90º Protractor (MK Diamond

Part No. 134569-MK) should be used.

CAUTION

DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which

it was designed.

NOTE:

(A)

Place the 90º Protractor on

the Ruler/Stop.

(B)

Set the desired angle and

tighten the thumbscrew.

(C)

Position the 90º Protractor

and tighten the

retaining thumbscrew.

(D)

Position the tile against the 90º

Protractor and the Ruler/Stop.

Turn the motor ON.

(E)

Verify proper cooling flow on

both sides of the blade (See

Maintenance Section to

increase/decrease flow).

(F)

Perform the cut. Turn the motor

OFF when work is complete.
