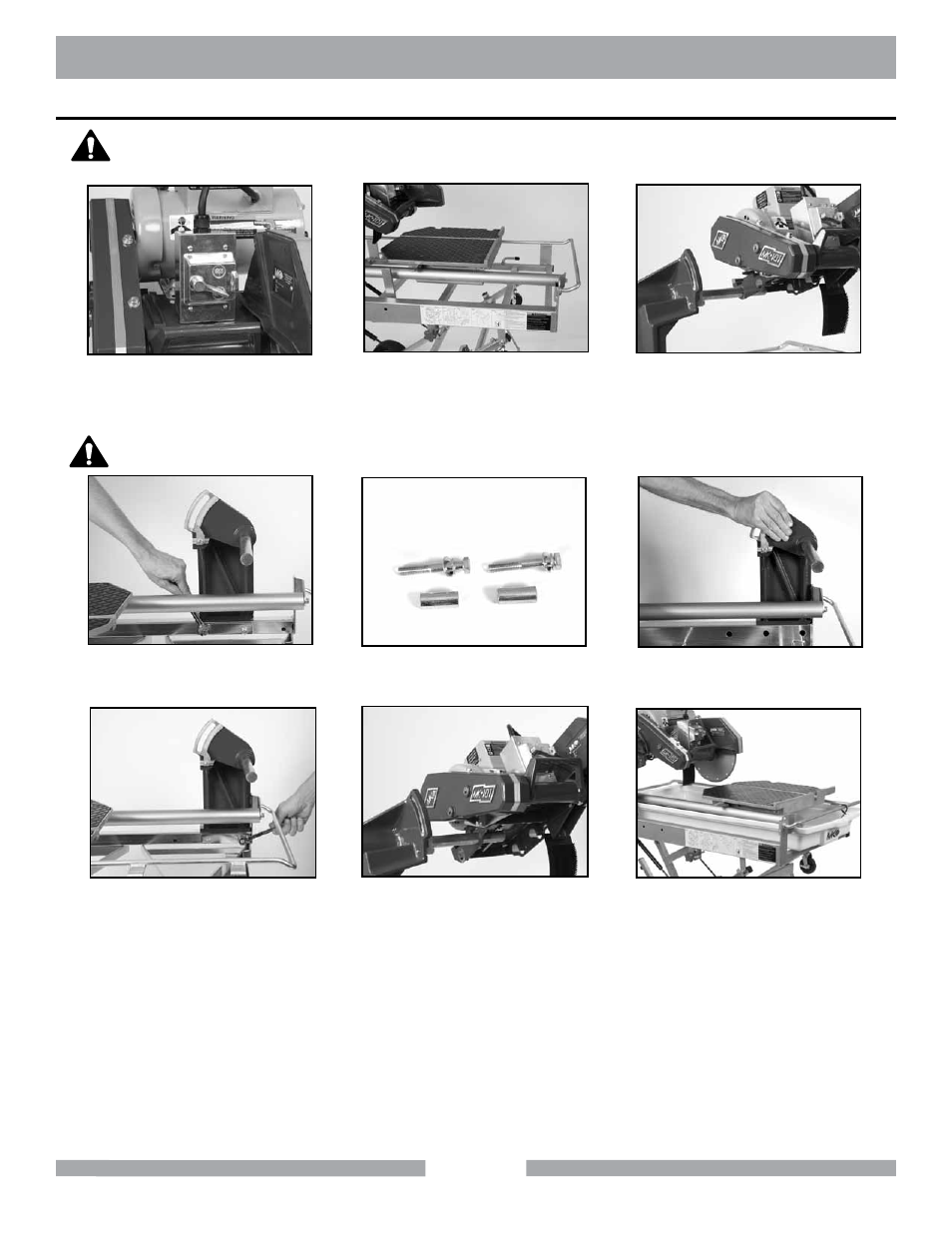

MK-101 Pro24 JCS ADJUSTMENT
Hold the Post when removing the Post Support Plate.
The Cutting Head and Post are heavy! Use care when changing the position of the
Cutting Head.
(A)
Ensure the ON/OFF Switch
is in the OFF position. Unplug
the GFCI from the power source.
(B)
Remove Water Basin.
(C)
Remove the Cutting Head (See
Adjusting the Cutting Head.
(D)
Loosen retaining bolts.
(E)
Remove the Standoffs
and retaining bolts.
(F)
Relocate the Post to the rear
Post retaining holes.
(G)
Install and tighten the Post
Support Plate and retaining bolts.
(H)
Install the Cutting Head (See
Adjusting the Cutting Head.
(I)
Install the Water Basin.
CAUTION
CAUTION
Adjusting the Post for Maximum Cutting Length
