17

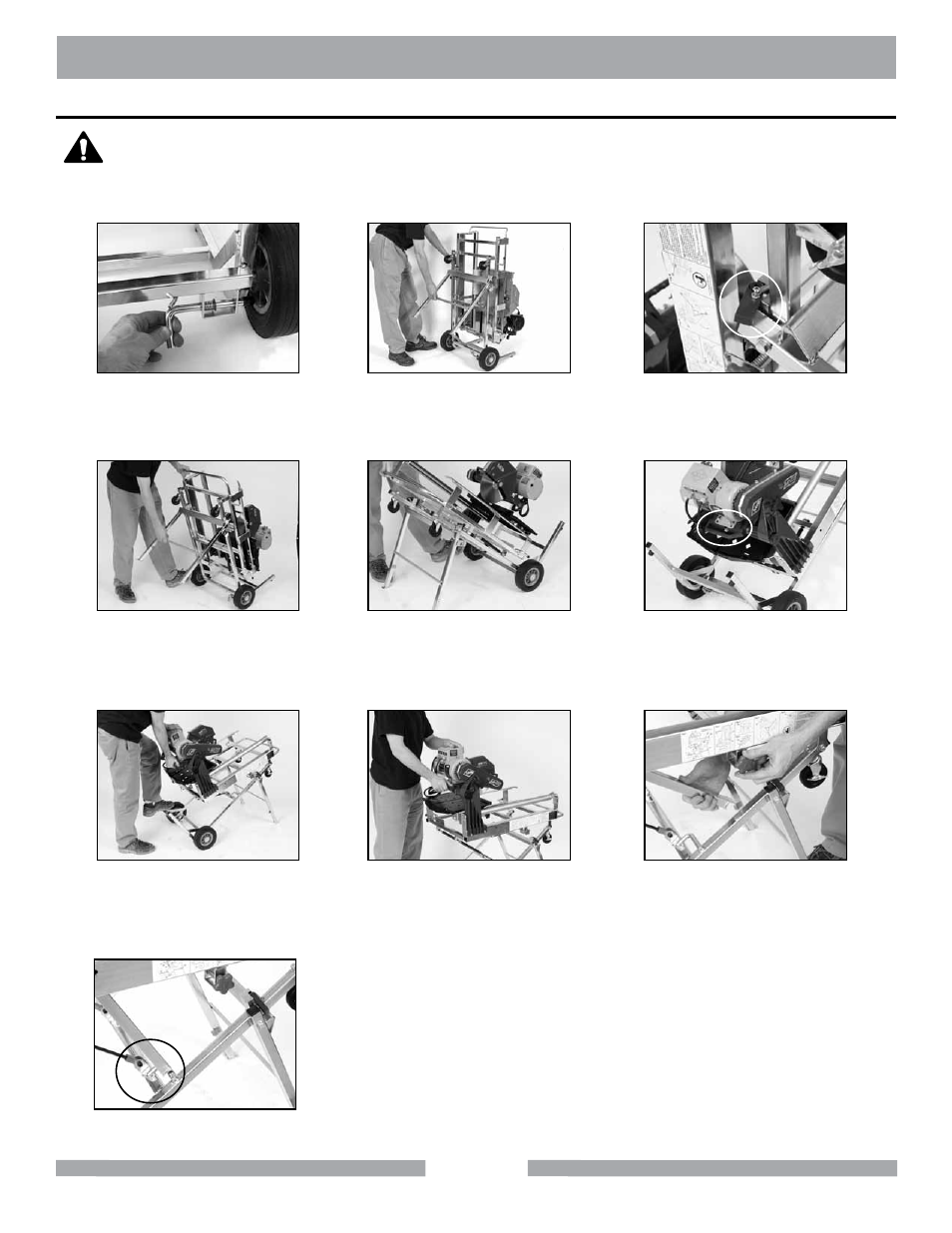

MK-101 Pro24 JCS STAND SET-UP
JCS STAND: Key Components for Set Up
THE MK-101 w/JCS stand weighs approximately two hundred and two pounds
(202 pds). Read and understand all instructions. Failure to follow all instructions in
SEQUENCE could result in serious injury.
(A)
Pull, turn & release pin to
lock Wheel.
(D)
Place left foot on left wheel, left
hand on Handle and right hand
on Front Legs.
(G)
Lift saw up vertically with Cutting
Head Handle.
(J)
Ensure that Safety Arm rests on Rod.
(E)
Tilt Saw forward and rest Front
Legs on ground.
(H)
Push down lightly on Cutting
Head Handle to ensure saw is
fully supported.
(I)
Pull Green Knob to release
Safety Arm.
(F)
Move to rear end of Tile Saw.
Locate Cutting Head Handle.
(B)
Stand on left side of saw.
Pull Blue Knob and pull
Front Legs out slowly.
(C)
Pull legs until they are locked
by Red Leg Lock.
CAUTION
