MK Diamond MK-101Pro24 JCS User Manual

Page 48

background image

48

Item

Description

Part#

Qty

1

CASTING, 101/990 LNR BRG MT-COM

135855

1

2

SCREW, HEx HD, 5/16 - 18 x 1

151743

6

3

WASHER, LOCK, SPLIT, 5/16

151747

6

4

WASHER, FLAT, SAE, 5/16

151754

7

5

ASSEMBLY, ROLLER WHEEL

151756

1

6

SPACER, GUIDE BAR COVER, COMMON

152393

2

7

SCREW, 5/16 - 187 x 1/2 HEx HEAD MACHINE

152473

1

8

COVER, 3/4 x 37 GUIDE BAR

153219

1

9

BAR, 3/4 x 37 LINEAR GUIDE, 101

153492

1

10

SCREW, 1/4 - 20 x 5/16 SOCKET HEAD SET

154223

2

11

SCREW, 1/4 - 20 x 1/2 SOCKET HEAD SET

155804

1

12

TABLE, PRO24, OVERMOLD (COMP)

161182

1

13

TABLE, ExTENSION (COMP)

162075

1

14

BRACKET, TABLE STOP

169222

1

MK-101 Pro24 JCS

Part # 169220

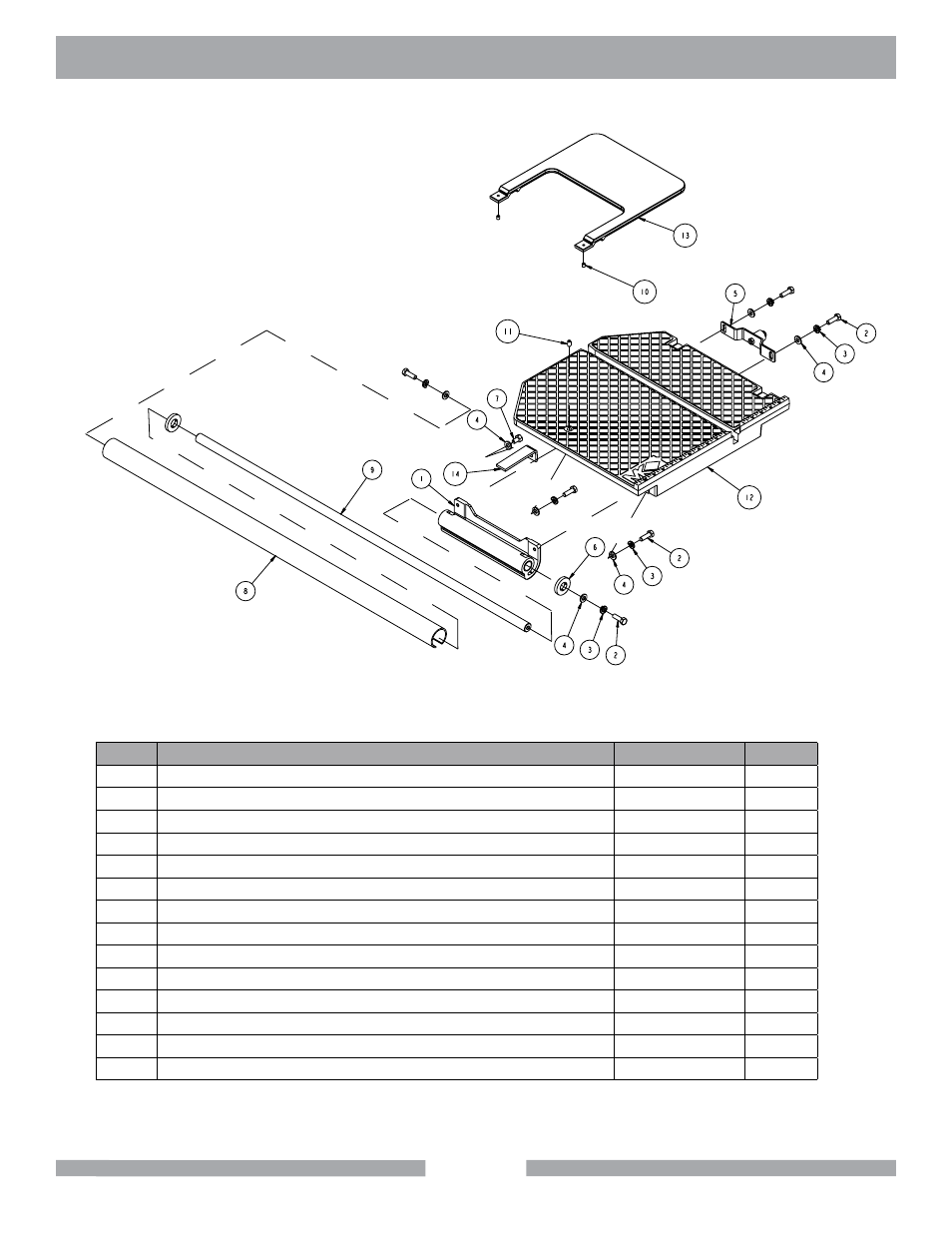

MK-101 Pro24 JCS EXPLODED VIEW & PARTS LIST
