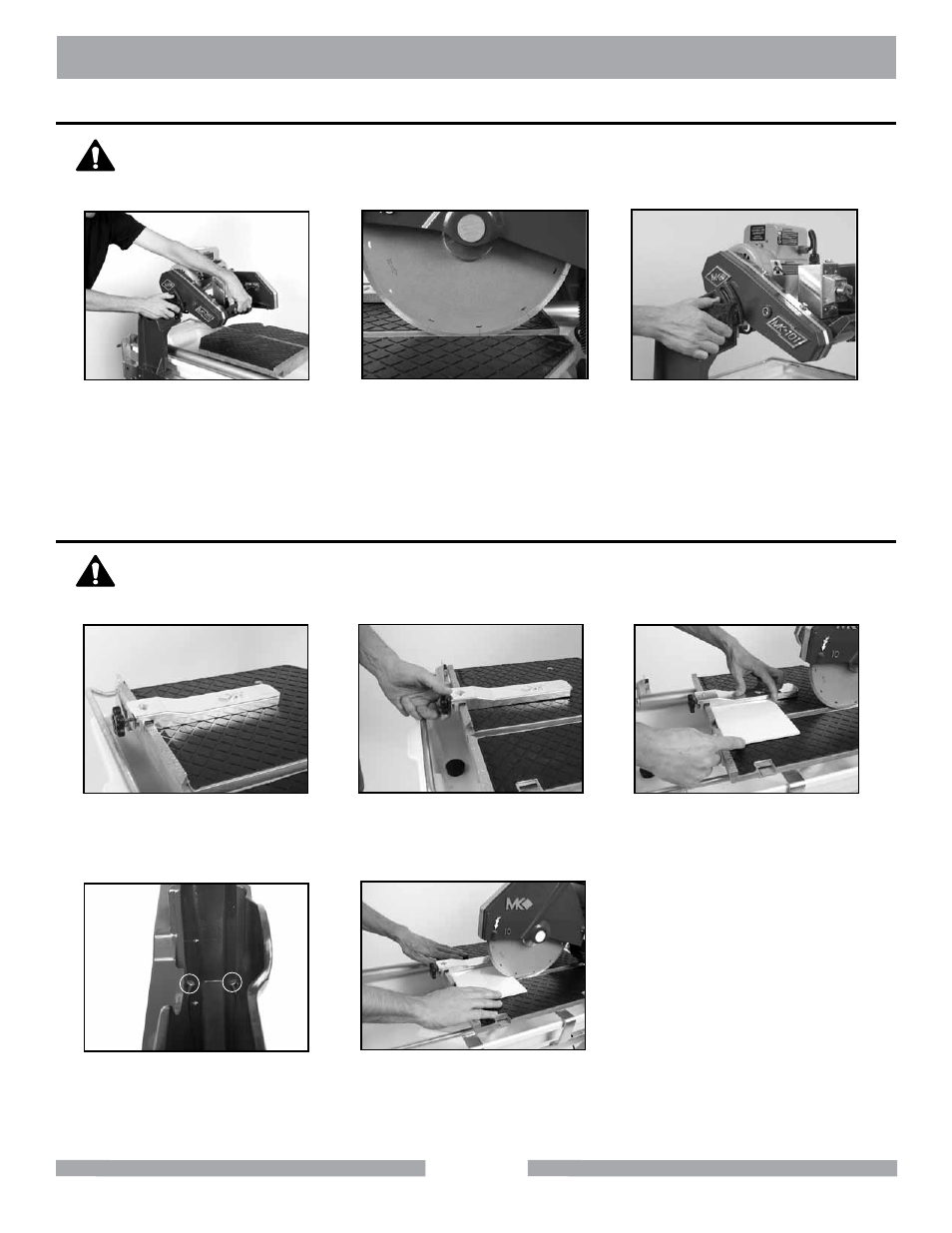

MK-101 Pro24 JCS OPERATION
Set Cutting Depth
Cutting Straight Edges
When loosing the Cutting Head Adjusting Knob, the Cutting Head will pivot
down unless held.
(A)
Loosen Cutting Head
Adjusting Knob.
(B)
Set cutting depth approximately
1/4 to 1/2 inch below the
surface of the Movable
Cutting Table.
(C)
Tighten the Adjusting Knob.
*A GFCI wall socket is the preferred protective device.
CAUTION
CAUTION
(A)
Position the Adjustable Cutting
Guide to desired cut length.
(B)
Tighten the retaining
thumbscrew.
(C)
Place the tile against the
Ruler/Stop and Cutting Guide.
Turn the motor ON.
(D)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow).
(E)
Perform the cut. Turn the motor
OFF when work is complete.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for
which it was designed.
