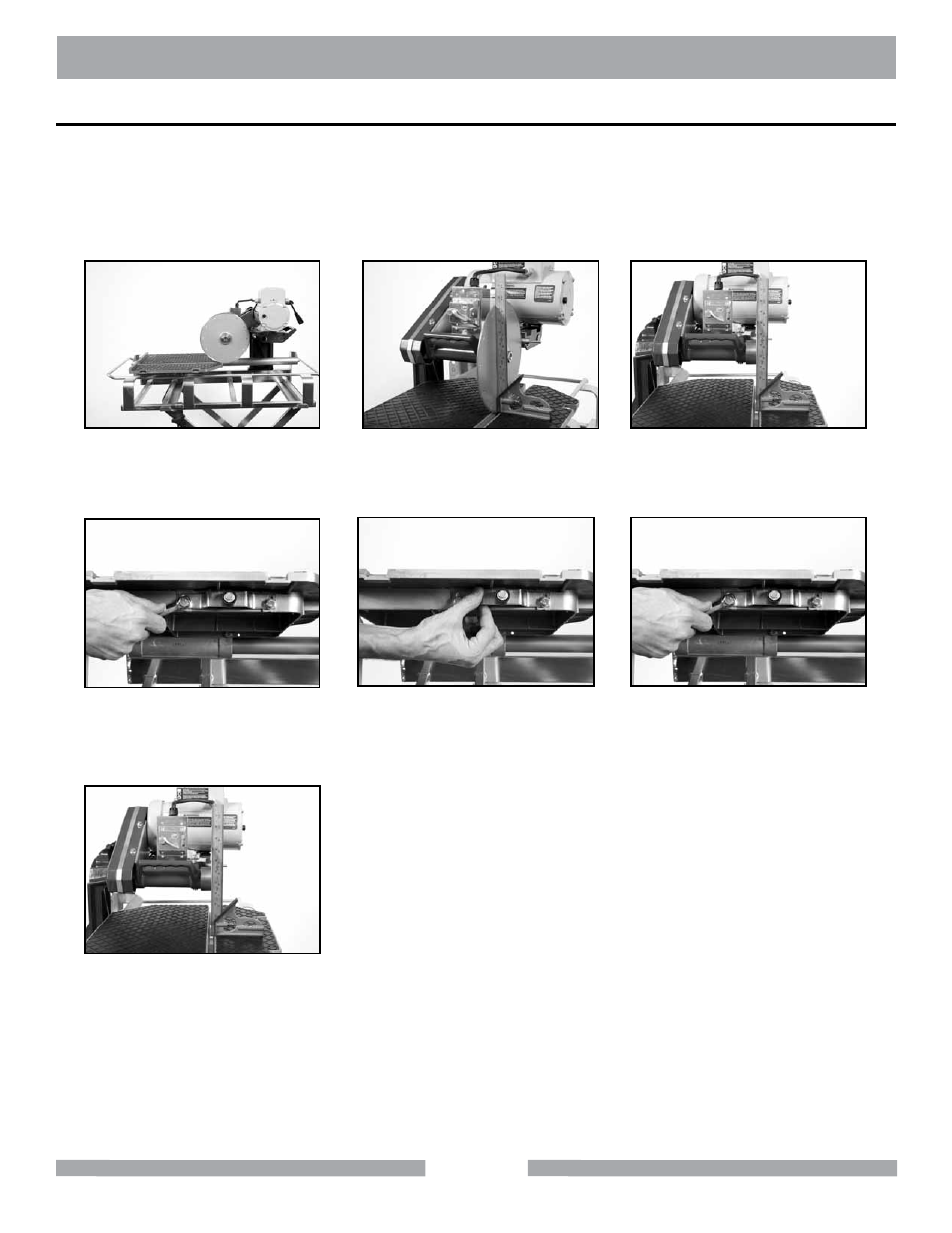

MK-101 Pro24 JCS TROUBLESHOOTING
90º-alignment verification ensures the blade cuts tile straight up and down and not at an angle.
The Diamond blade must be removed and reinstalled when removing the blade guard.
(A)
Remove Blade Guard and
water pan.
(B)
Position Square on Movable
Cutting Table against
the Diamond Blade.
(C)
Verify the Diamond
Blade is Square to the
Movable Cutting Table.
(D)
If not Square, loosen Movable
Cutting Table Wheel Assembly
to adjust.
(E)
Move Wheel Assembly
up or down to Square the
Movable Cutting Table.
(F)
After Squaring, tighten Movable
Cutting Table Wheel Assembly.
(G)
Re-verify the Diamond Blade
is Square to the Movable
Cutting Table.
90° ALIGNMENT VERIFICATION
NOTE: If the blade is misaligned following 90º-alignment verification, return the saw to
MK Diamond for repair.
